Description
?
Features:

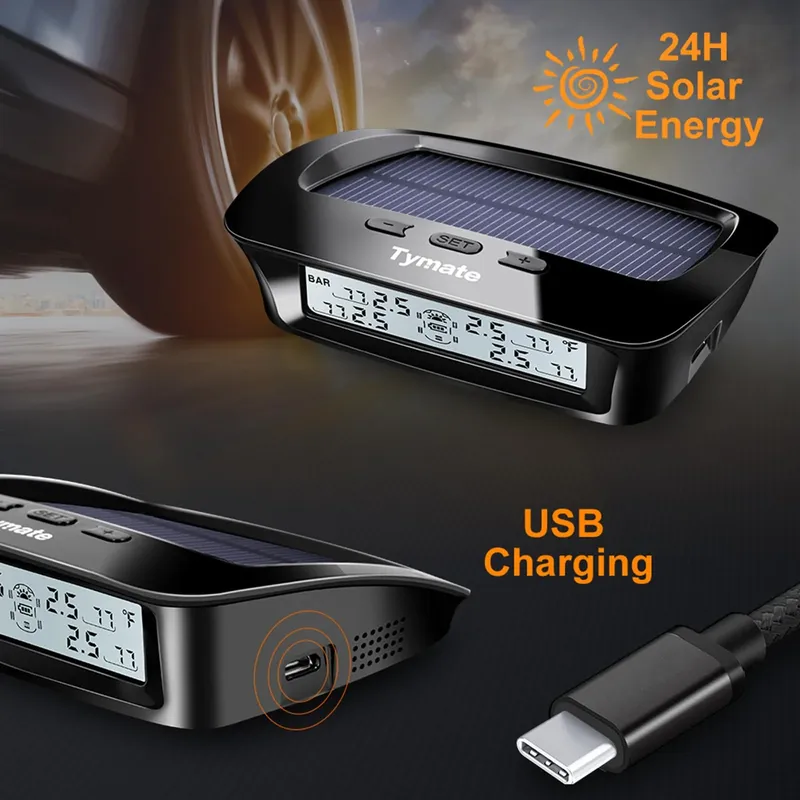

- Auto Solar Charge: Tymate Tire Pressure Monitoring System M12-3 Black is Automatic solar charging. using higher quality and more durable solar lithium battery panels. which can extend the use time and help focus driving. Drivers don’t have to worry about the continuity of product work often. (AC / DC charging can also be used when there is no sunlight)
- Five Types Of Alarms And User-set Alarm Values: Tymate Tire Pressure Monitoring System M12-3 Black equipped with five-alarm modes (high pressure. low pressure. high temperature. rapid air leakage. sensor low battery alarm). promptly reporting the abnormal tire condition to the driver to help safe driving. After pairing. the systme will automatically set the current pressure when installed the sensor as reference pressure (Alarming Range is 25% PSI to -15% PSI of Reference Pressure).
- Auto Backlight & Sleep & Awake Mode: Tymate Tire Pressure Monitoring System M12-3 Black’s auto-adjustable backlight can clearly display the data in low light or strong light environment. Real-time monitoring and real-time display of data is the best helper for driving. It will enter the sleep energy-saving mode after the vehicle stops running for 10 minutes. and will automatically wake up when the car is turned on. Prolong product life while saving energy.
- Low Power Consumption And Long Working-life Sensor: Tymate Tire Pressure Monitoring System M12-3 Black equipped with 4 advanced external sensors. which are low power consumption and have a long working life (2 years maximum). Small size. light-weight. high accuracy of sensing tire pressure (error range ��3psi). and easy installation. It also can withstand harsh environments.
- Tire Position Exchange: Tymate Tire Pressure Monitoring System M12-3 Black provides the function of changing the tire position. If the driver needs to change the tire position during use. he can directly exchange the position of the sensor in the monitor without reinstalling sensor. Help the driver save time and energy to do more important things. * Any problem encountered. please contact our customer service team.

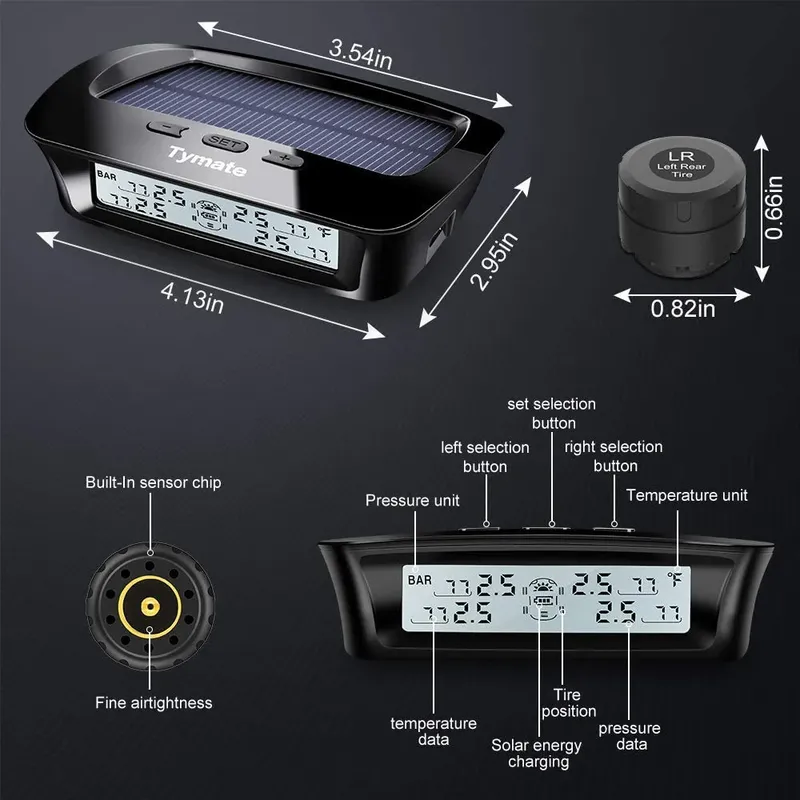

Monitor Specification:
Default Pressure Unit: PSI
Default Temperature Unit: ��
Default High Pressure Alert: 44PSI(3.0Bar)
Default Low Pressure Alert: 29PSI(2.0Bar)
Default Temperature Alert: 70��
Working temperature: -20�� to 80��
Storage temperature: -30�� to 85��
Output Voltage: Dc 12 to 24V
Frequency: 433.92MHz
Sensor Specification:
Working temperature: -40�� to 80��
Storage temperature: -40�� to 85��
Pressure range: 0 to 6bar(0 to 87psi)
Transmission Power: < 10dBm
Transmission: 433.92MHz
Battery life: >2 Years

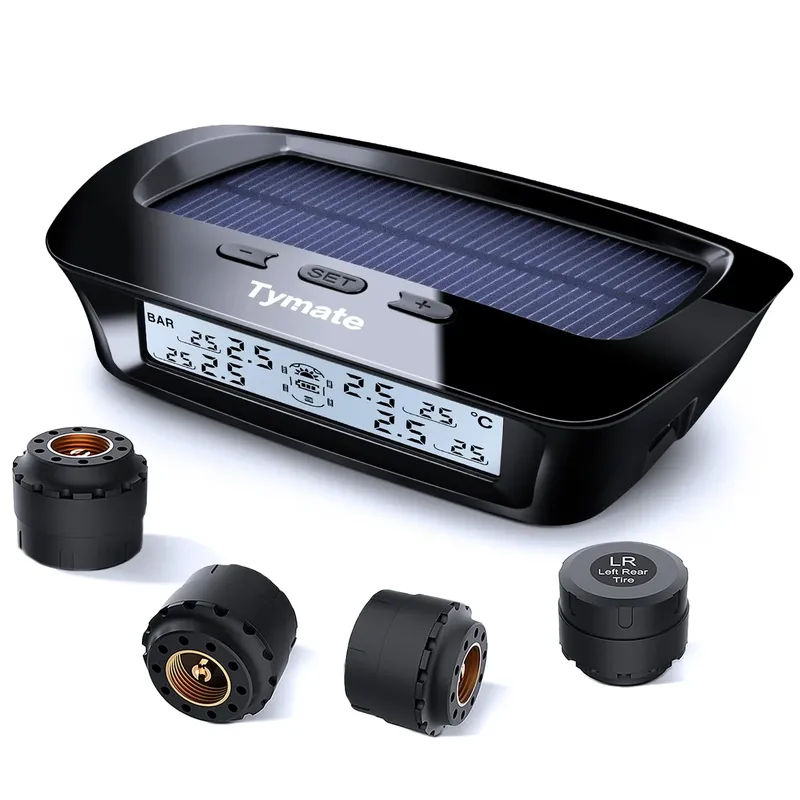

Package Includes:
1 x Tymate tire pressure tester
4 x Sensors
4 x Anti-lost nuts
1 x Portable tool
1x USB cable
1 x User Manual
Suitable for:
It is suitable for the car with tire pressure less than 4.0. such as car. SUV. sports car or MPV. etc. NOT SUITABLE for Trailer or RV.
Note Before Usage:

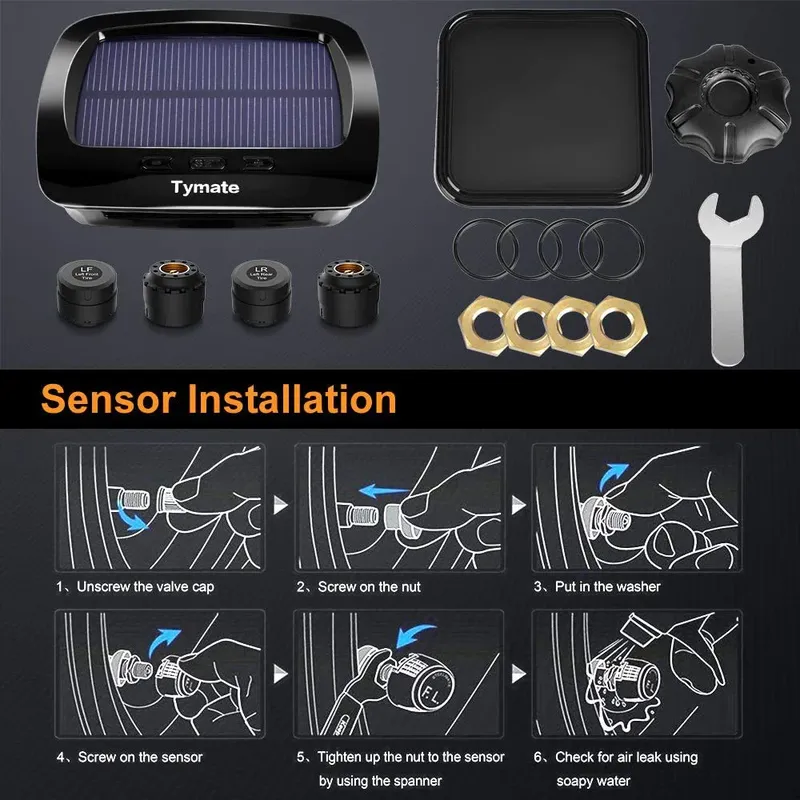

1. Tymate’s tpms does not require any complicated operations from you. you only need to turn on the monitor first. and then install the sensor on the tire at the corresponding position. You do not need to manually program. all products have been programmed before leaving the factory.
2.Please turn on the monitor before installing the sensor on the tire. Please do not install the sensor on the tire before turning on the monitor.?This operation may cause problems such as sensor data not being displayed and the monitor showing garbled characters. If you have installed the sensor on the tire first. please start your vehicle immediately and observe whether there is data displayed after 5-10 minutes. If there is still no data displayed. please remove the sensor and let it rest for 10 minutes before proceeding to the correct installation sequence.
3.If you find that your sensor’s data is not displayed or displayed intermittently during use. it may be that the sensor’s wireless signal transmission is interfered by objects and electromagnetic interference.?You can solve this problem by moving the display away from the interference source. such as moving the monitor away from the GPS navigator and closer to the driving position. If the problem persists after trying the above suggestions. you may need to equip a repeater that extends the signal transmission distance and eliminates interference.
4.If a tire blowout puncture occurs:?tpms could not avoid the puncture caused by sharp objects or damaged tires. Because tpms can only monitor the air pressure and temperature over a period of time. but cannot monitor instantaneous changes. So it is only suitable for avoiding tire abnormalities caused by changes in air pressure or temperature. which occur slowly. not instantaneously.
Tymate recommends: Do a comprehensive tire inspection for at least one month and ask your tire technician to replace your faulty tire in time.
5.How to enter the parameter setting interface of M12-3 ?
Long press the SET instead of SET and -.
