Description
Bring discreet comfort to multiple areas with this 2 Zone 18000 BTU concealed ducted mini split air conditioner & heating system. The high-efficiency 24 SEER2 inverter technology automatically adjusts output to maintain consistent temperatures while reducing energy consumption. In addition, the concealed ducted mini split AC system uses R454B refrigerant, meeting modern efficiency standards and environmental expectations. Built-in WiFi adds everyday convenience—easily manage settings via the app, voice control, or the included remote and wall thermostat. The outdoor unit features chassis electrical heating to ensure reliable performance even in extreme weather conditions. Customize your comfort with 7 modes (auto, cool, heat, dry, fan, ECO, sleep) and 8 fan speeds (auto/mute/low/low-mid/mid/mid-high/high/turbo) to suit your schedule and preferences. Additional user-friendly features include a 24-hour timer, 4D airflow, self-cleaning function, and child lock.
Please note: Installation of this mini split AC unit should only be performed by a licensed HVAC installer.
Features

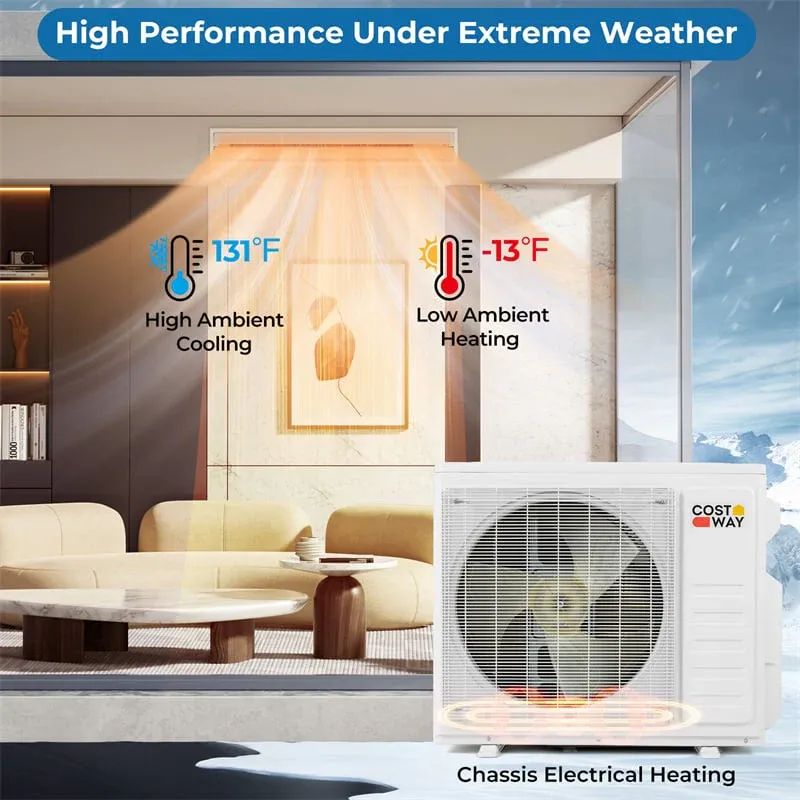

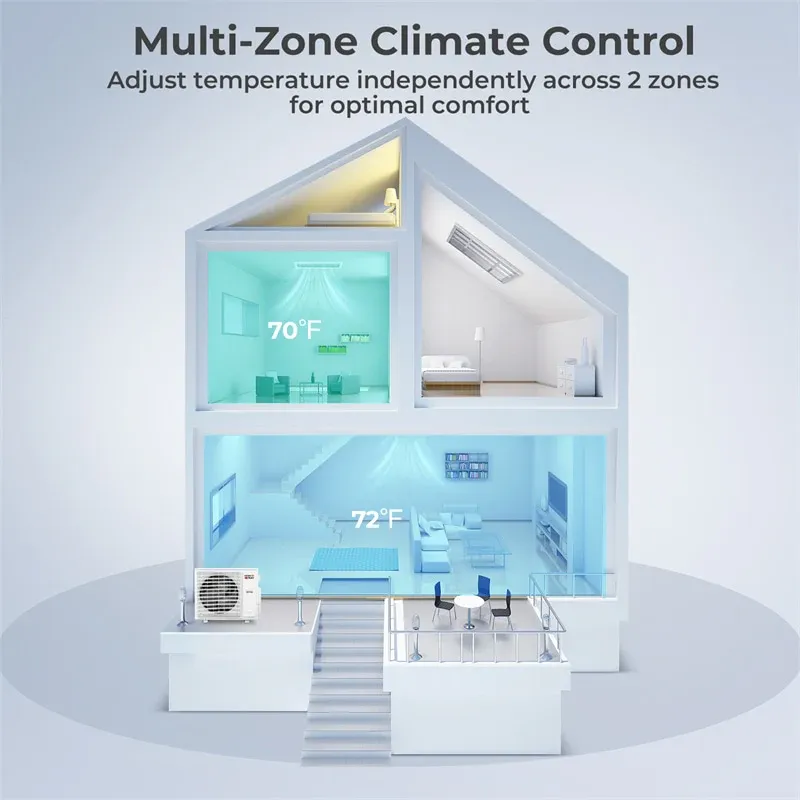

- Multi-Zone Climate Control: This 18000 BTU concealed ducted mini split AC delivers powerful, balanced heating and cooling across 2 zones. The outdoor unit is equipped with chassis electrical heating to ensure reliable operation in harsh conditions, supporting low ambient heating down to -13℉ and high ambient cooling up to 131℉.
- Significant Energy Savings: Advanced inverter technology helps maintain stable indoor temperatures while reducing energy consumption and minimizing frequent cycling for improved comfort. With a 24 SEER2 rating and R454B refrigerant, this multi-zone inverter split air conditioner and heat pump system is designed for efficient, year-round performance.
- Multiple Control Options: This WiFi-enabled concealed ducted mini split AC unit can be easily controlled via the included remote, wall thermostat, smart app, or voice commands for simple daily operation. It is compatible with Alexa and Google Assistant. The 24-hour timer enables scheduled operation, while the child lock ensures settings remain secure.
- All-season Companion: There are 7 modes for you to choose from—auto, cool, heat, dry, fan, ECO, and sleep—along with 8 fan speeds for precise comfort control. The 4D auto swing enhances air distribution, while the self-cleaning function helps maintain fresher airflow over time.
- Quiet Operation & Wide Use: This multi-zone concealed ducted air conditioner & heater operates at low noise levels, as quiet as 28 dB, creating a peaceful environment for homes and workplaces. It is ideal for both residential and light commercial applications, including living rooms, bedrooms, offices, restaurants, and more. Note: Professional installation is required.
Specifications
- Color: White
- Material: Cold-rolled Steel Sheet, Copper, Aluminum

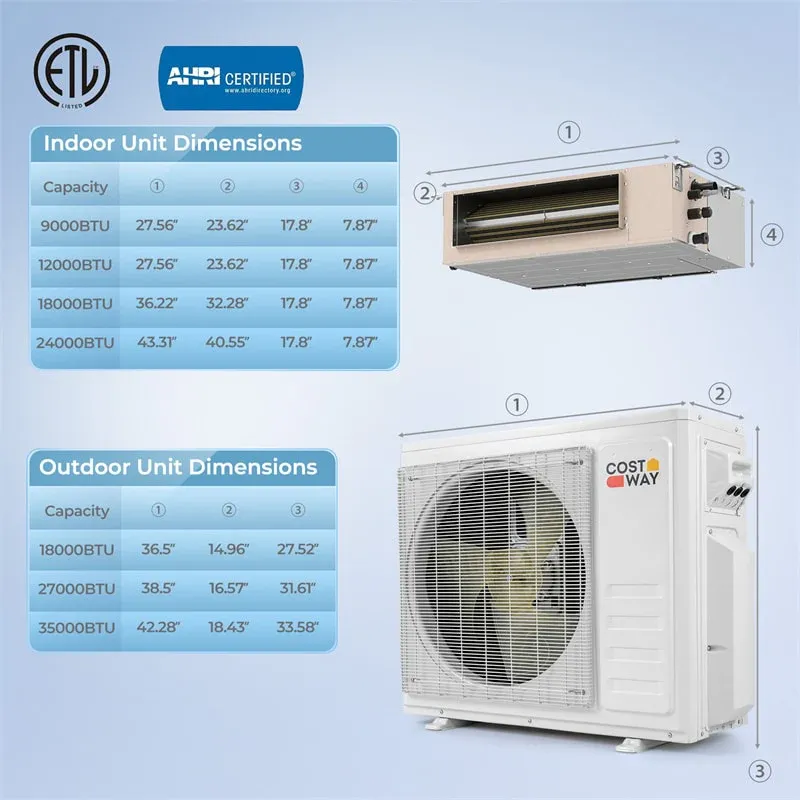

- Indoor Unit Dimensions:
9K: 27.56” x 17.8” x 7.87” (L x W x H)
12K: 27.56” x 17.8” x 7.87” (L x W x H)
18K: 36.22” x 17.8” x 7.87” (L x W x H)
24K: 43.31” x 17.8” x 7.87” (L x W x H) - Outdoor Unit Dimensions:
18K: 36.5″ x 14.96″ x 27.52″ (L x W x H)
27K: 38.5″ x 16.57″ x 31.61″ (L x W x H)
35K: 42.28″ x 18.43″ x 33.58″ (L x W x H) - Multi Zone Combination: 2
- Voltage: 208/230V
- Frequency: 60Hz
- Temperature Setting Range: 60℉~88℉
- Refrigerant: R454B
- Indoor Unit Noise Level: 28 dB
- Max Remote Control Distance: 39.2 ft
- Coverage Area:
9k: 450 Sq.Ft
12k: 750 Sq.Ft
18k: 1250 Sq.Ft
24k: 1500 Sq.Ft - Dehumidification Capacity:
9k: 55.8 Pints/Day
12k: 81.2 Pints/Day
18k: 111.6 Pints/Day
24k: 131.9 Pints/Day - Maximum Air Flow Volume:
9k: 335 CFM
12k: 360 CFM
18k: 500 CFM
24k: 741 CFM - SEER2:
18k: 24
27k: 24
35k: 22.5 - HSPF2:
18k: 10.5
27k: 10.5
35k: 10 - Diameter of Liquid Pipe: 1/4″
- Diameter of Gas Pipe:
9k: 3/8″
12k: 3/8″
18k: 1/2″
24k: 5/8″ - Net Weight:
18k: 92.6 lbs
27k: 119 lbs
35k: 145.5 lbs
9k: 33.1 lbs
12k: 33.1 lbs
18k: 39.7 lbs
24k: 50.7 lbs

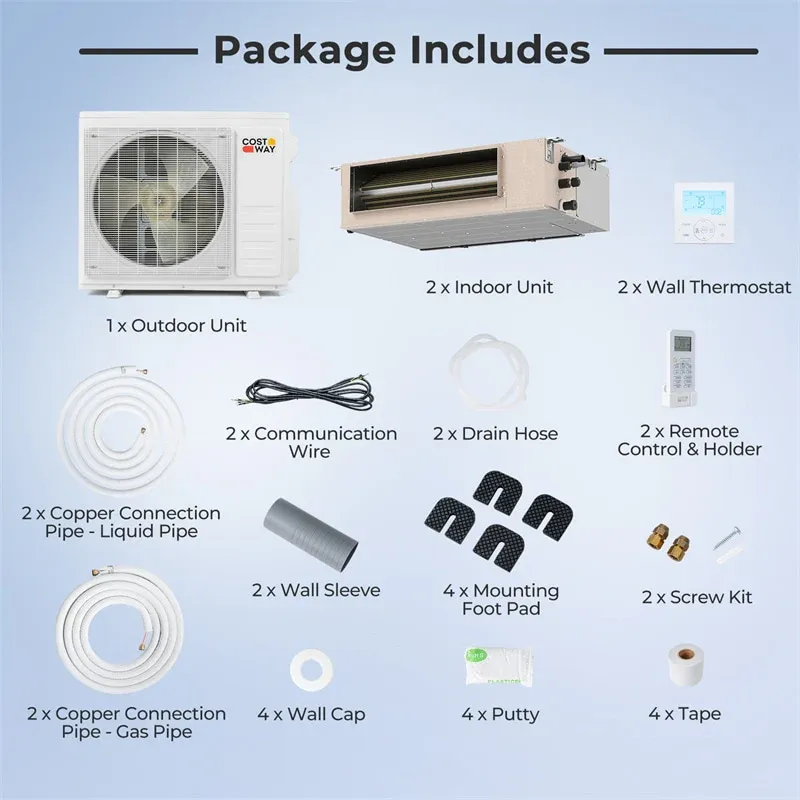

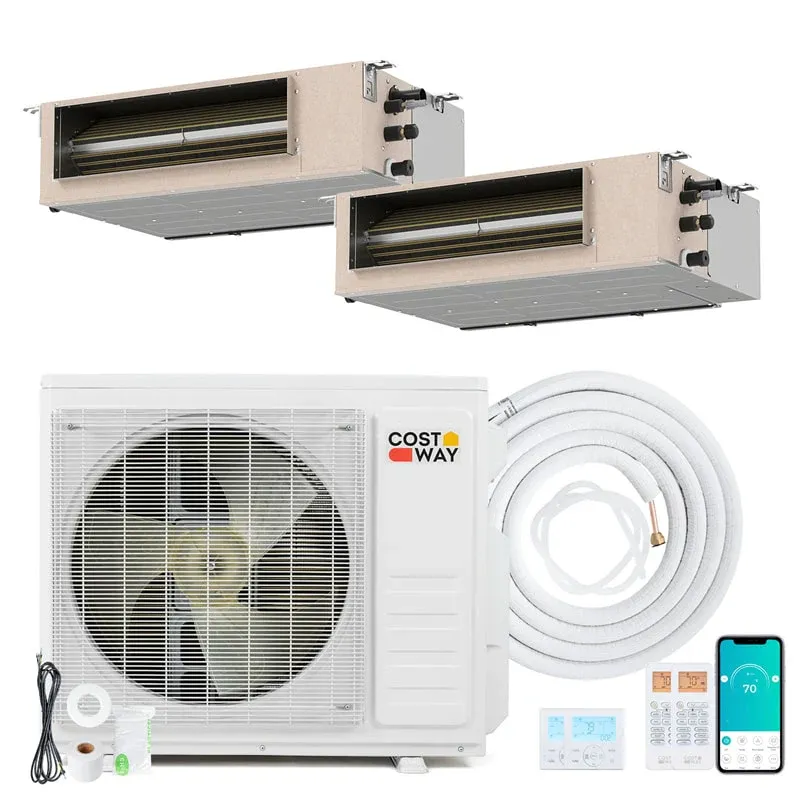

Package Includes
- 1 x Outdoor Unit
- 2 x Indoor Unit
- 2 x Copper Connection Pipe – Gas Pipe
- 2 x Copper Connection Pipe – Liquid Pipe
- 2 x Communication Wire
- 2 x Drain Hose
- 2 x Remote Control & Holder
- 2 x Wall Sleeve
- 4 x Wall Cap
- 4 x Tape
- 4 x Putty
- 2 x Screw Kit
- 4 x Mounting Foot Pad
- 4 x User Guide
