Description
Prodcut Description

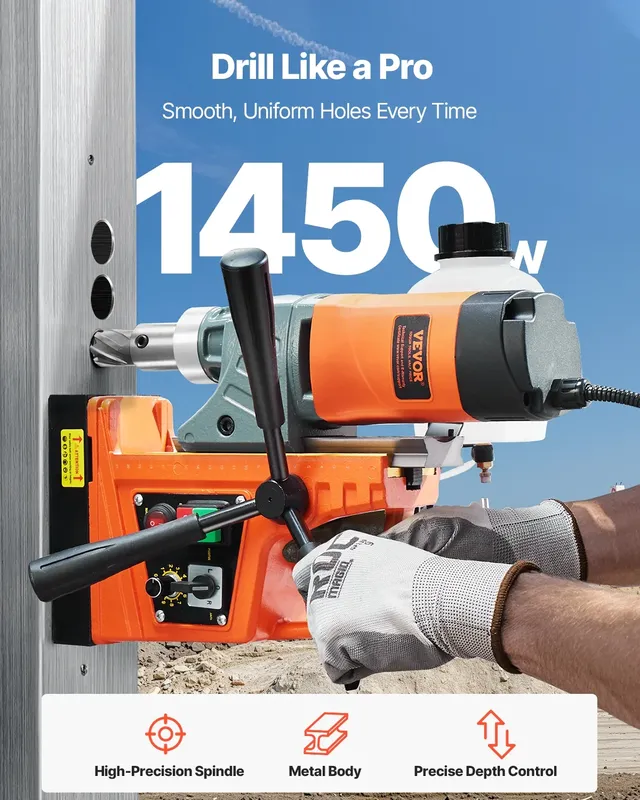

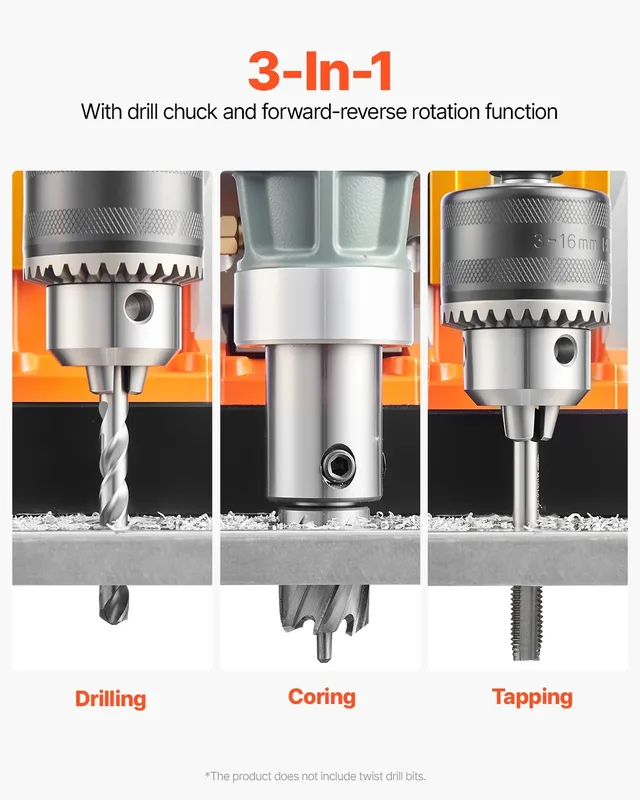

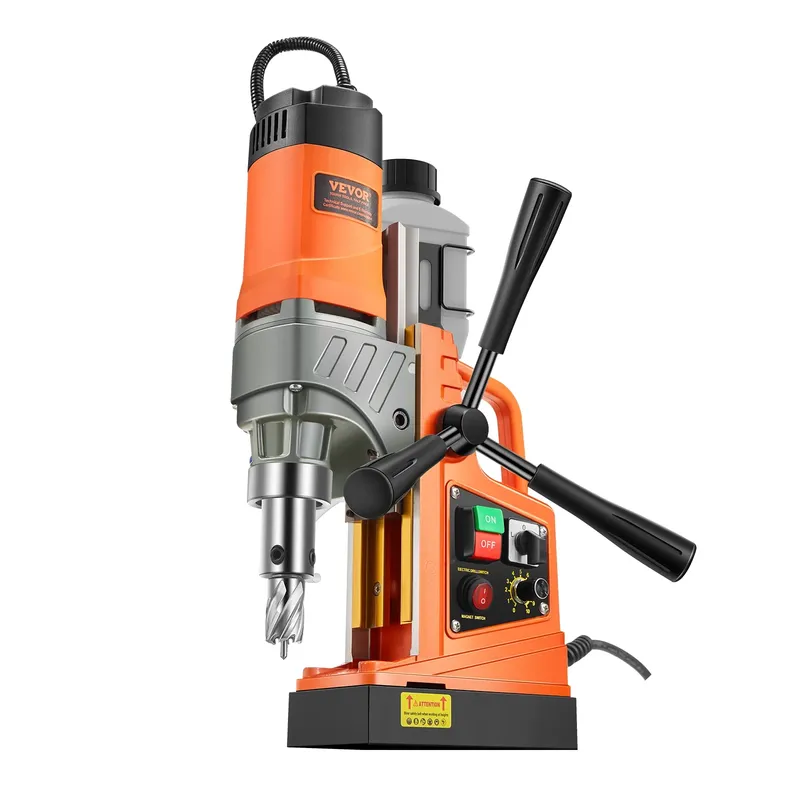

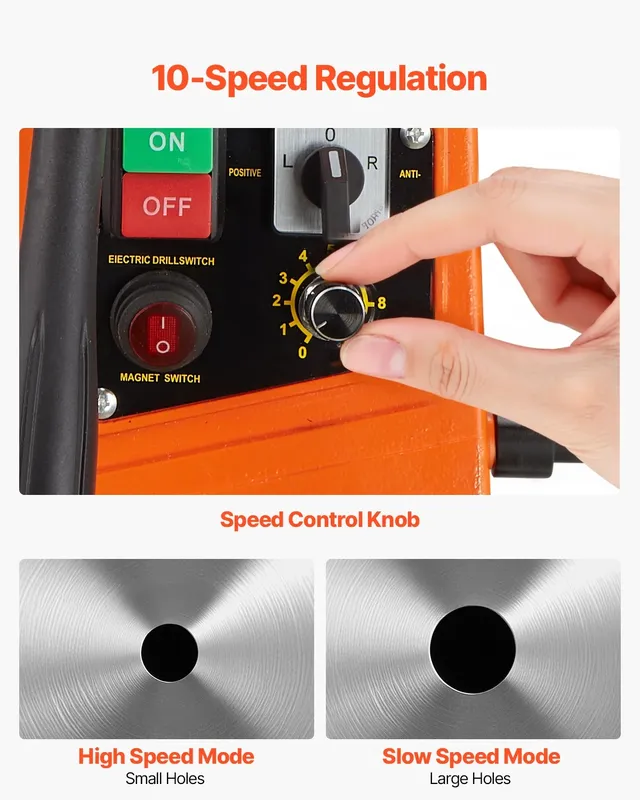

1450W Electromagnetic Drill PressThis magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. With 6 drill bits, it handles diverse drilling tasks. Made of premium alloy, it’s ideal for home assembly, industrial use, and steelwork.Powerful PerformanceOur mag drill boasts a 1450W motor with a variable speed range of 0-800 RPM, significantly enhancing drilling efficiency, especially for projects that require extensive drilling. It ensures more stable operation, greater precision, and improved comfort during use.Versatile Drilling CapabilitiesEquipped with multiple coring bits, a professional twist drill chuck, and forward/reverse functions, this magnetic drill press supports annular cutting, drilling, and tapping tasks. From small DIY projects to large-scale industrial applications, all your drilling needs can be met.10-Speed AdjustmentPrecisely adjust the speed based on the drilling diameter. For smaller holes, switch to a higher speed for efficient drilling and smooth hole walls. For larger holes, reduce the speed to prevent drill bit damage or misalignment caused by excessive speed, greatly improving drilling accuracy.Precision Depth ScaleThe built-in scale allows you to directly monitor and control the drilling depth during operation, ensuring that each hole meets the exact size requirements. This mag press is especially valuable for applications requiring precise depth control, such as machining and construction installation.Durable Guide RailThe dovetail guide rail structure provides high rigidity and can withstand significant cutting forces and torque. Even when working on harder materials or under demanding drilling conditions, the magnetic drill remains stable and reliable.Stable BaseThe low center of gravity is expertly designed to ensure stability and prevent wobbling, giving you confidence to handle even the complex or time-consuming tasks with ease.
Specifications

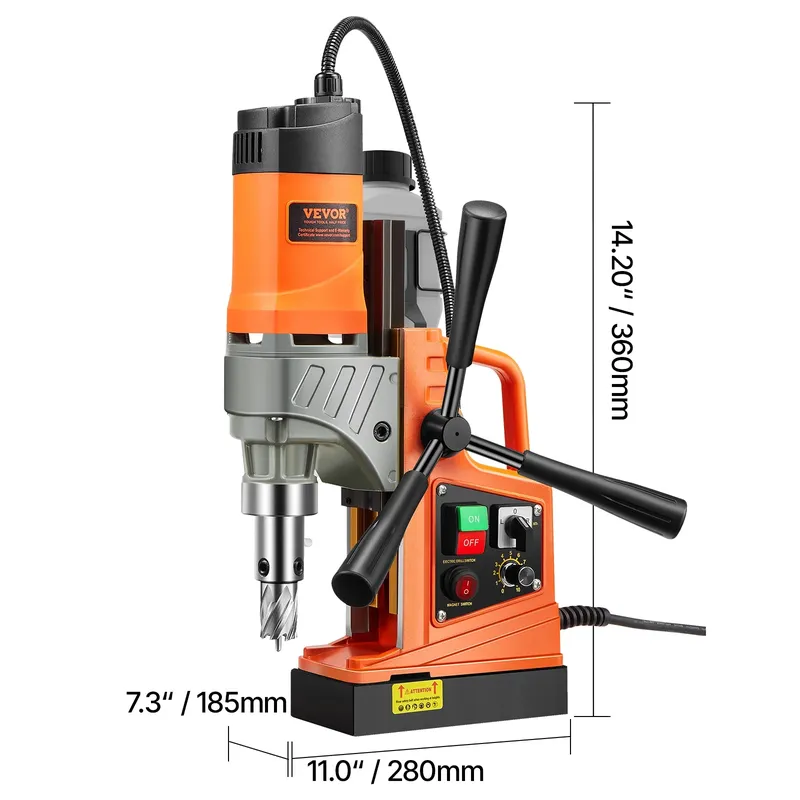

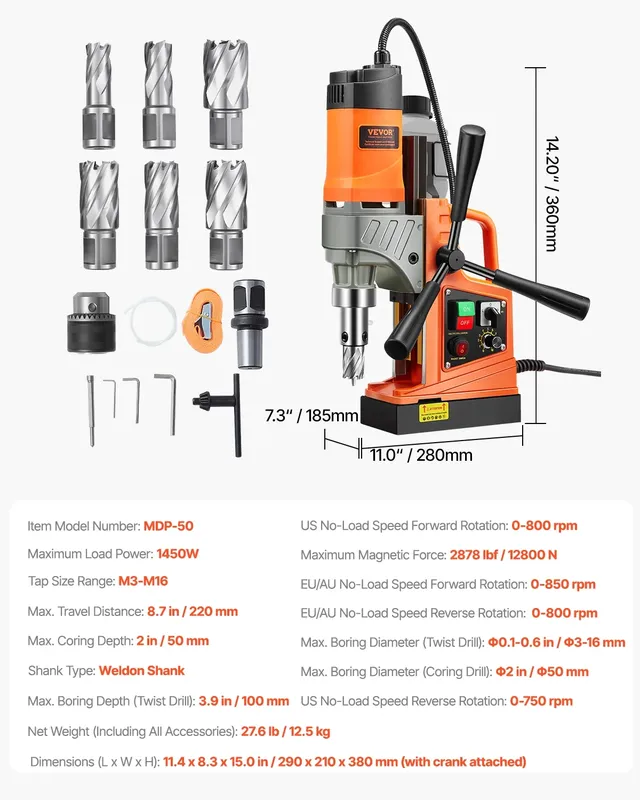

Item Model Number: MDP-50Shank Type: Weldon ShankMaximum Load Power: 1450WMaximum Magnetic Force: 2878 lbf / 12800 NNo-Load Speed Forward Rotation: 0-800 rpmNo-Load Speed Reverse Rotation: 0-750 rpmMax. Boring Diameter (Coring Drill): ��2 in / ��50 mmMax. Coring Depth: 2 in / 50 mmMax. Boring Diameter (Twist Drill): ��0.1-0.6 in / ��3-16 mmMax. Boring Depth (Twist Drill): 3.9 in / 100 mmTap Size Range: M3-M16Max. Travel Distance: 8.7 in / 220 mmNet Weight (Including All Accessories): 27.6 lb / 12.5 kg
Package Content

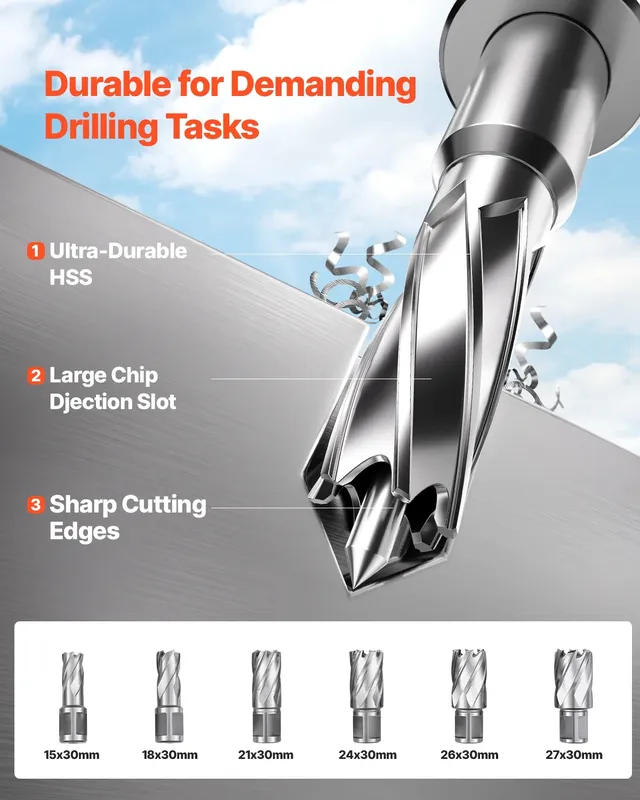

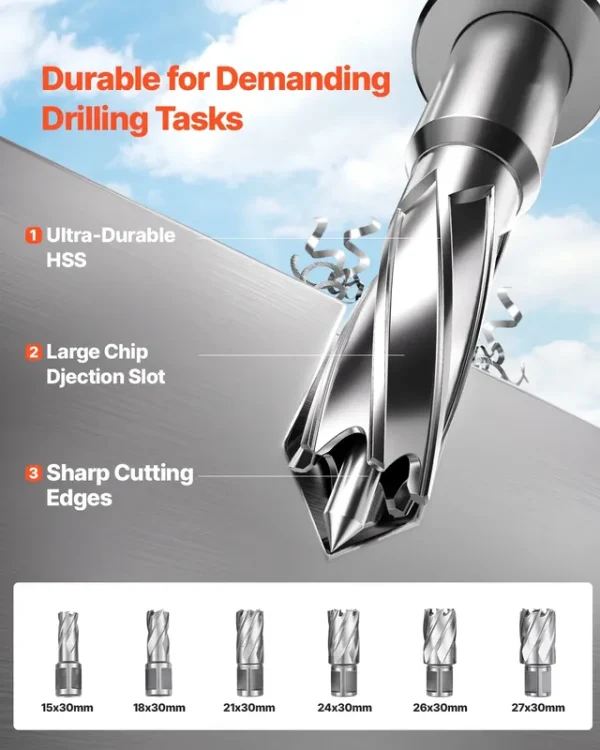

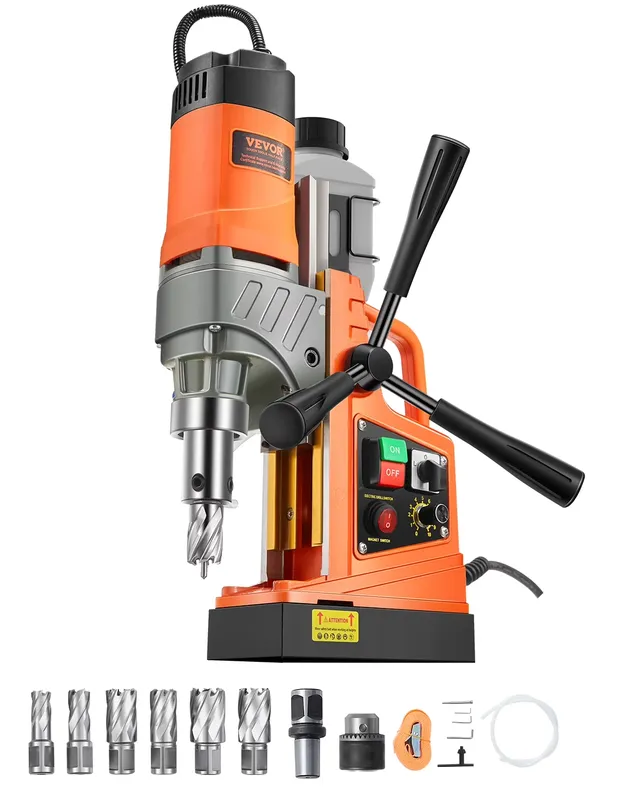

1 x Drill Chuck Key1 x Drill Chuck1 x Coolant Tank Stand1 x Coolant Tube1 x Rope1 x Thimble3 x Hex Keys1 x Conversion Joint6 x Weldon Shank Coring Bits3 x Hand Cranks1 x User Manual
- Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1450W copper motor. It is capable of drilling into the toughest material at 0-800 RPM. Max. Boring Diameter (Coring Drill): ��2 in / ��50 mm; Max. Coring Depth: 2 in / 50 mm

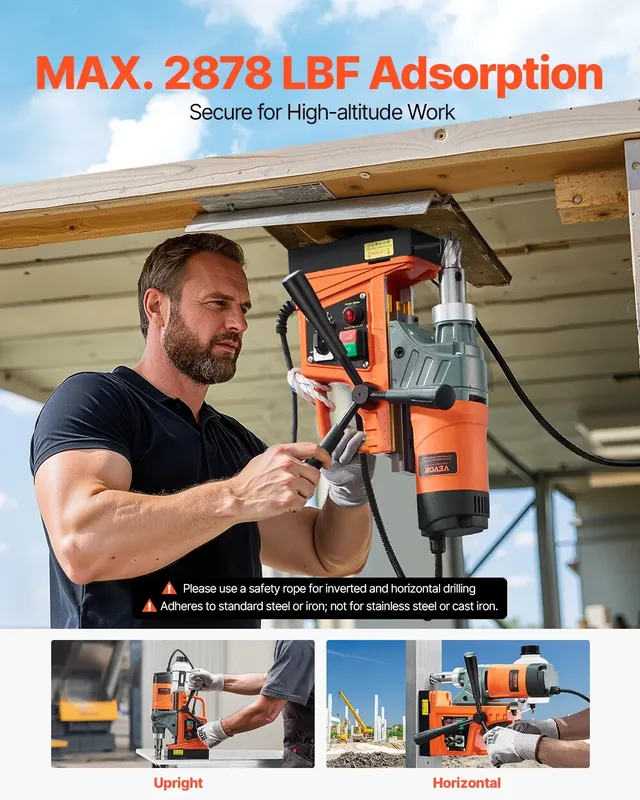

- Understand the Power: 2878 lbf / 12800N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process. Adjustable 10-speed gears achieve accurate and efficient operation according to different drilling diameter
- Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the titanium magnesium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device’s service life
- User-friendly design: A scale has been added to the machine’s frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort
- Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of �� 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling
