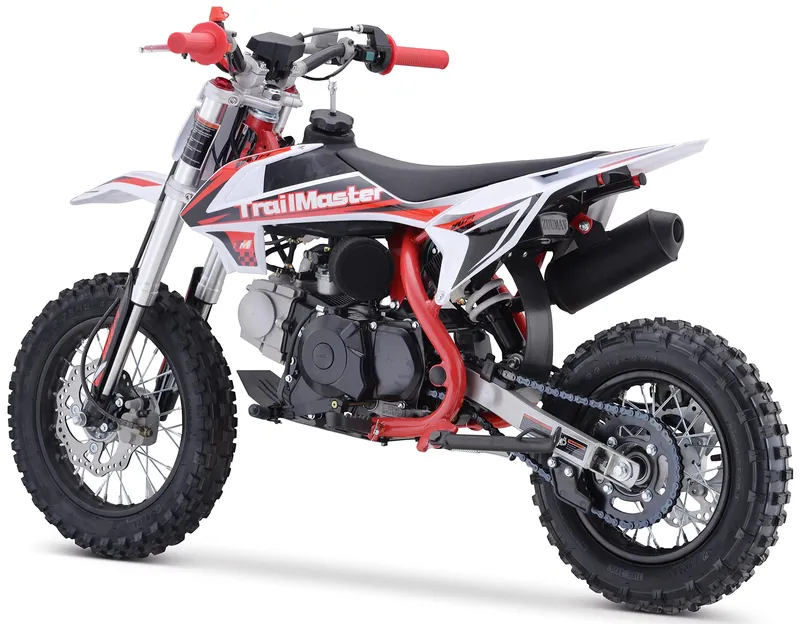

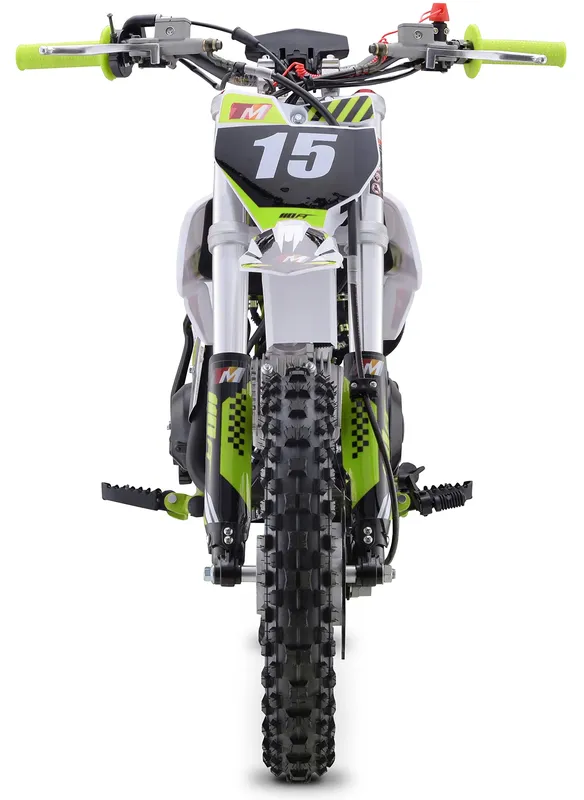

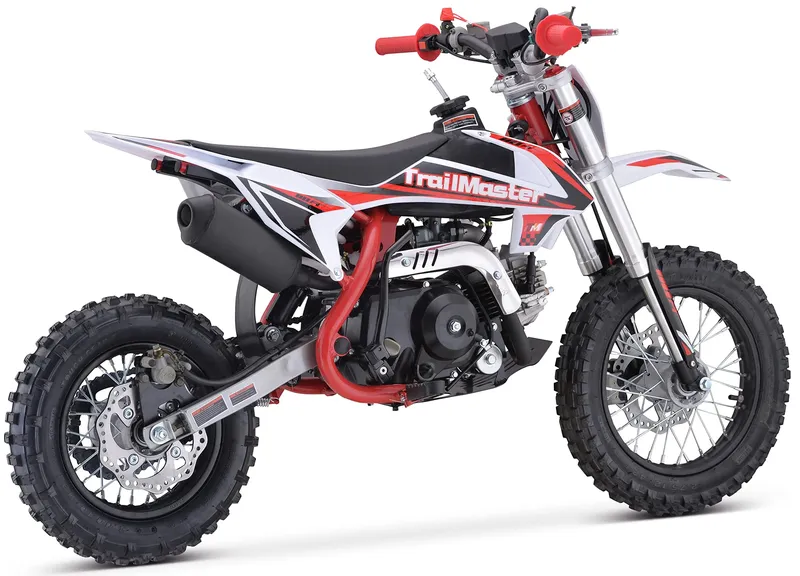

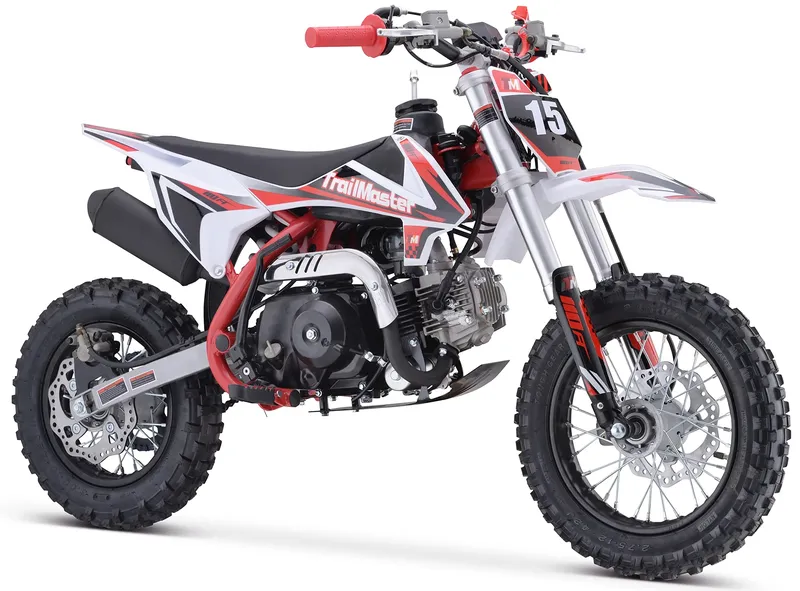

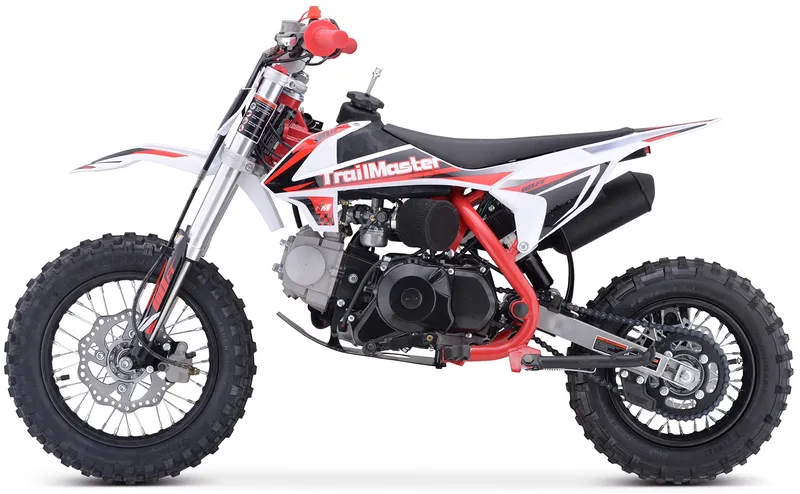

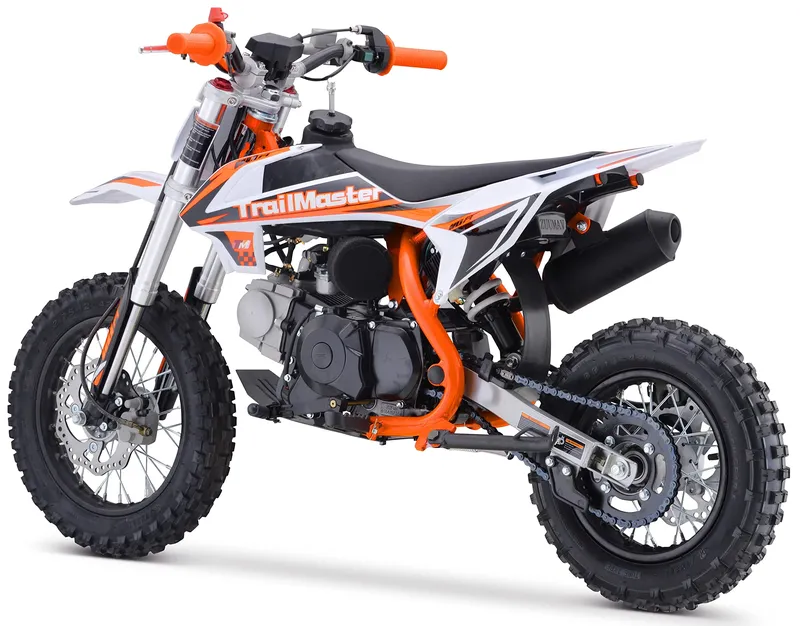

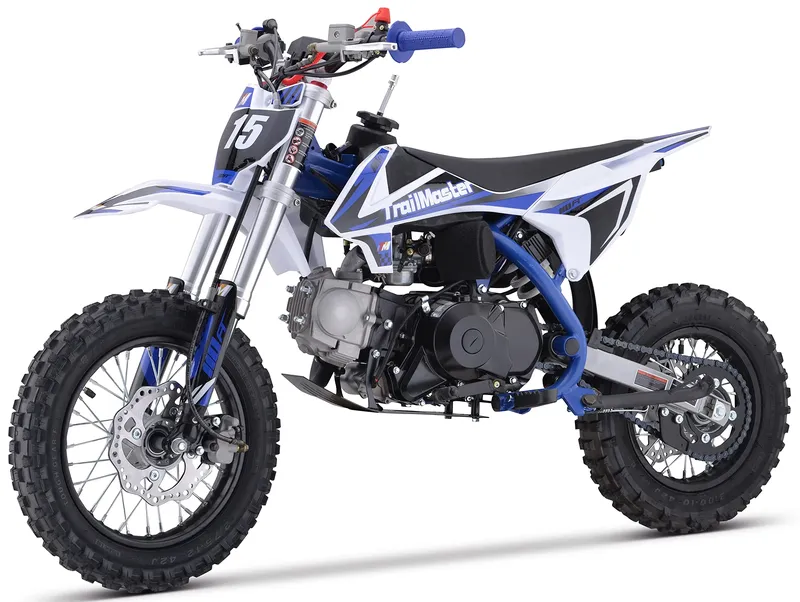

Description

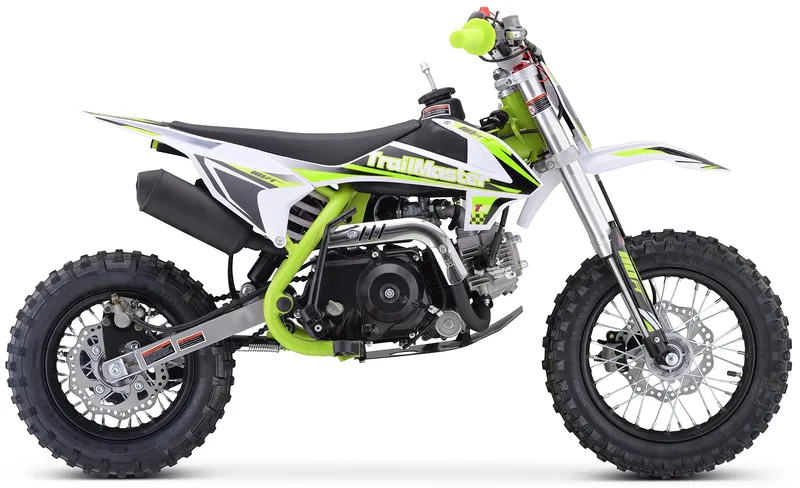

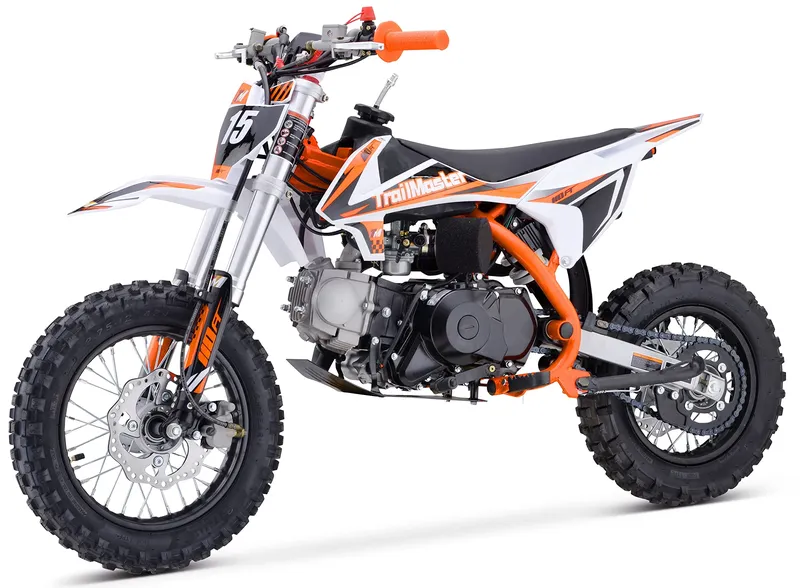

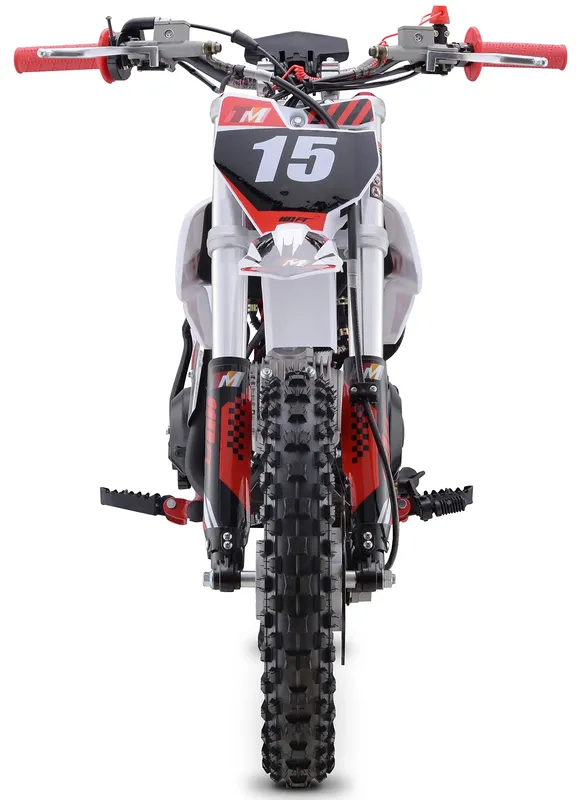

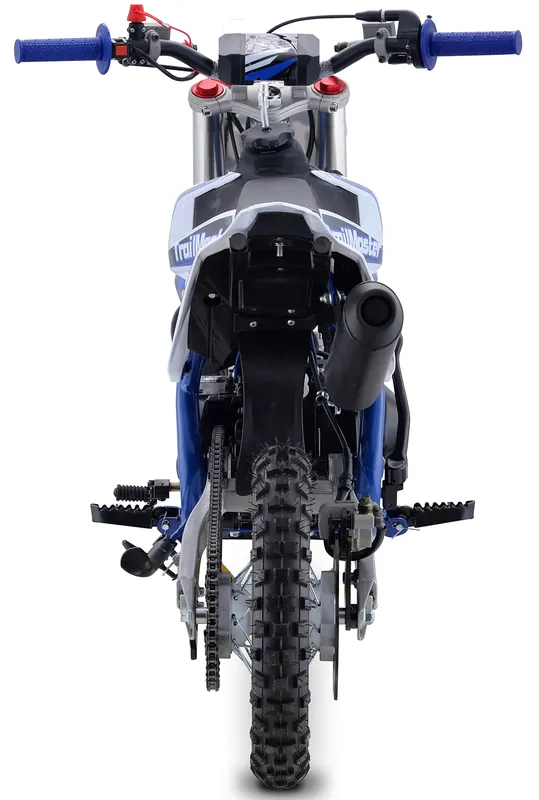

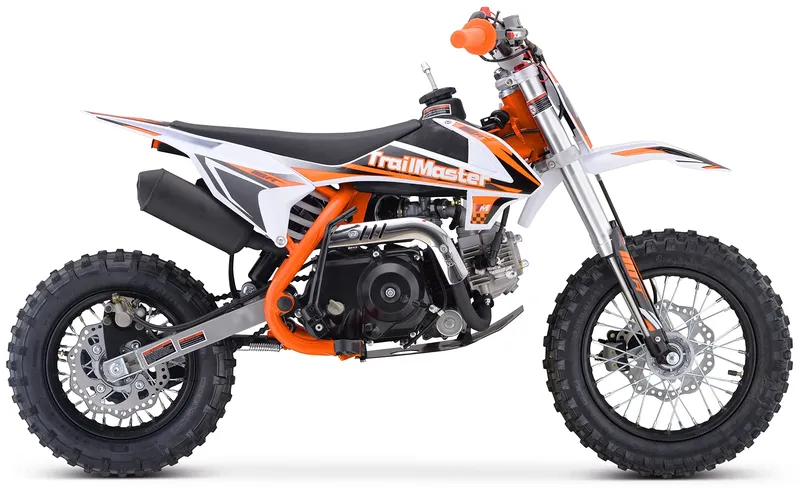

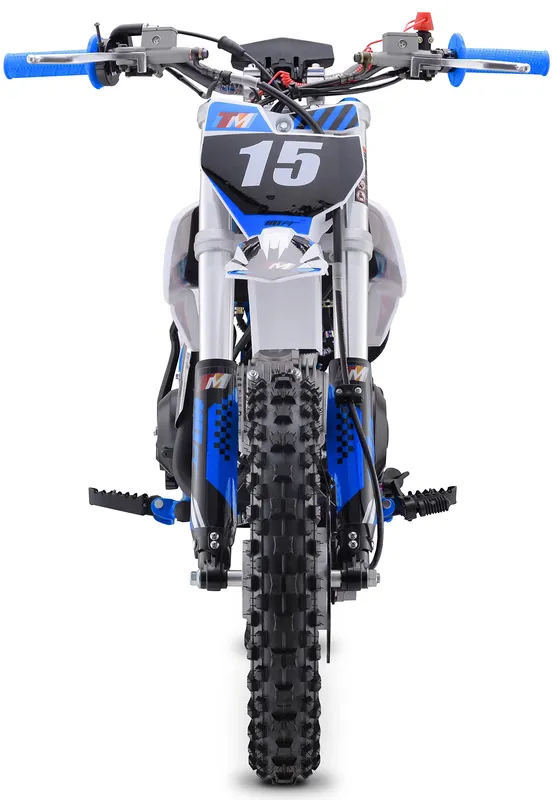

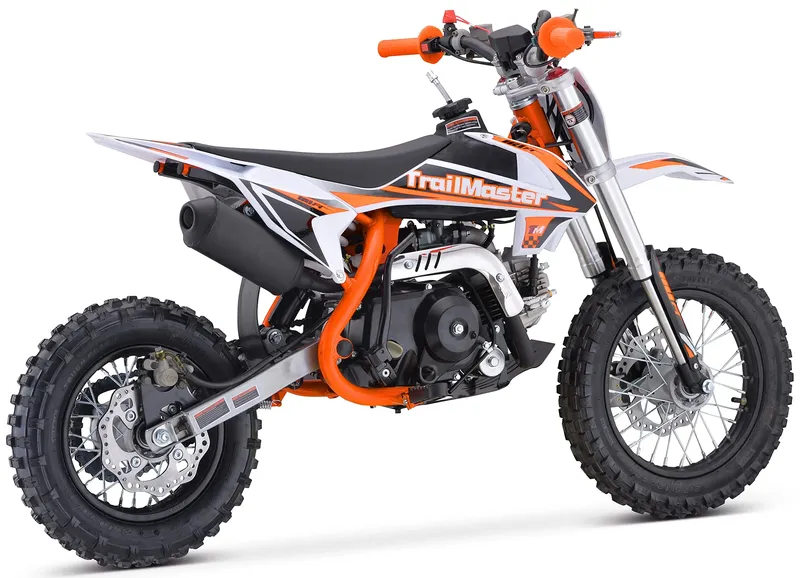

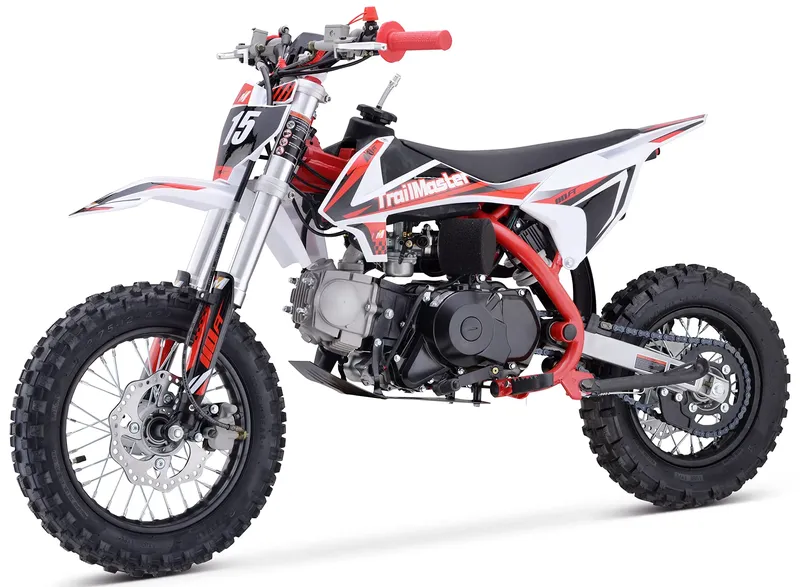

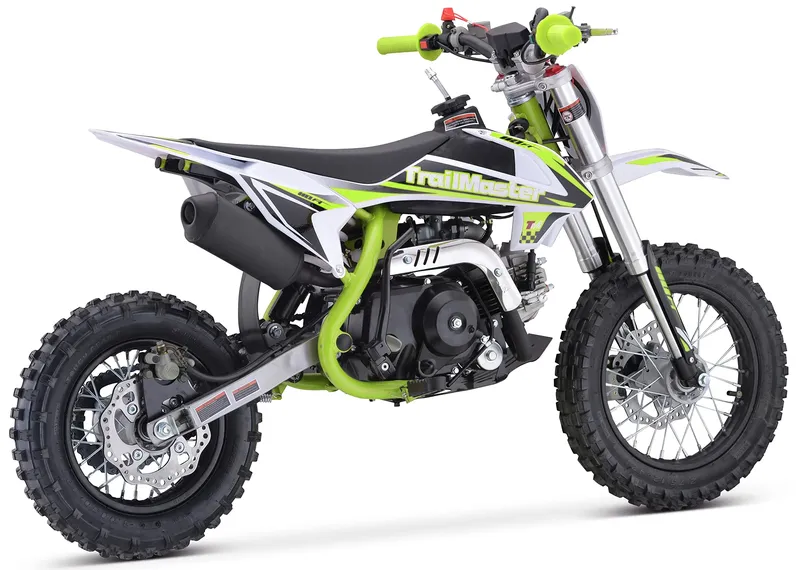

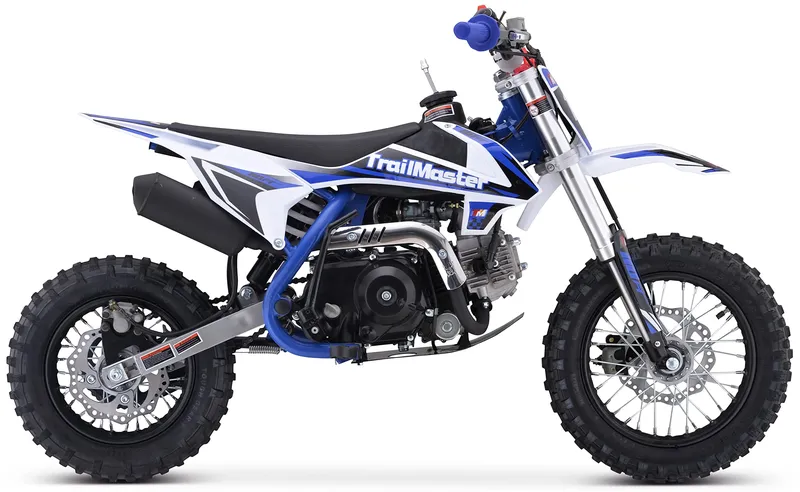

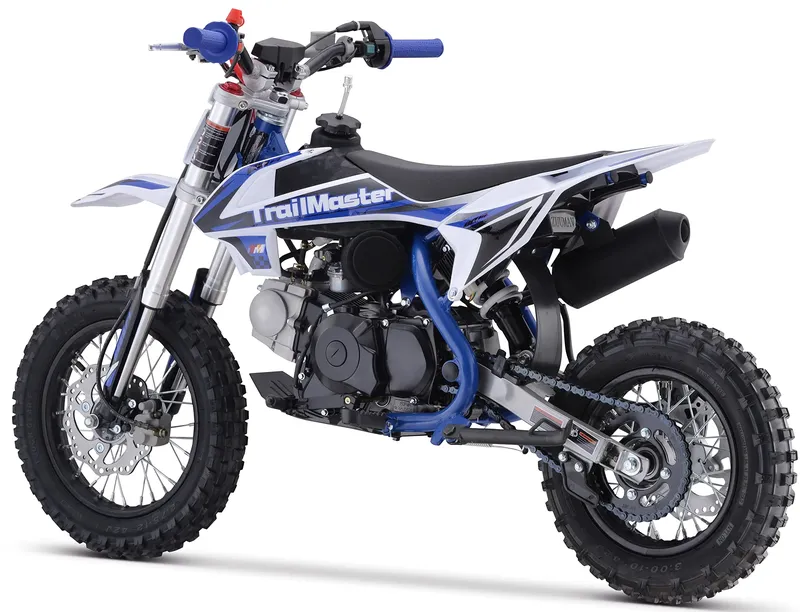

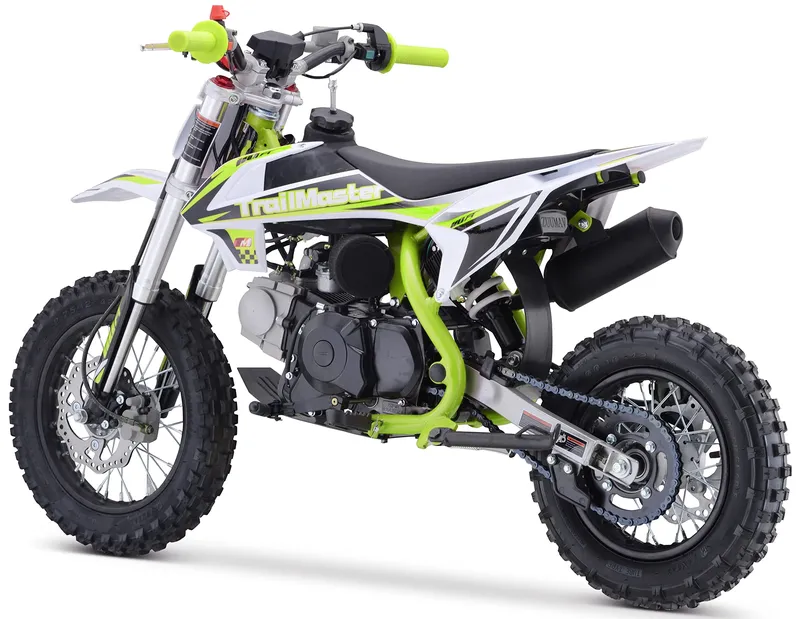

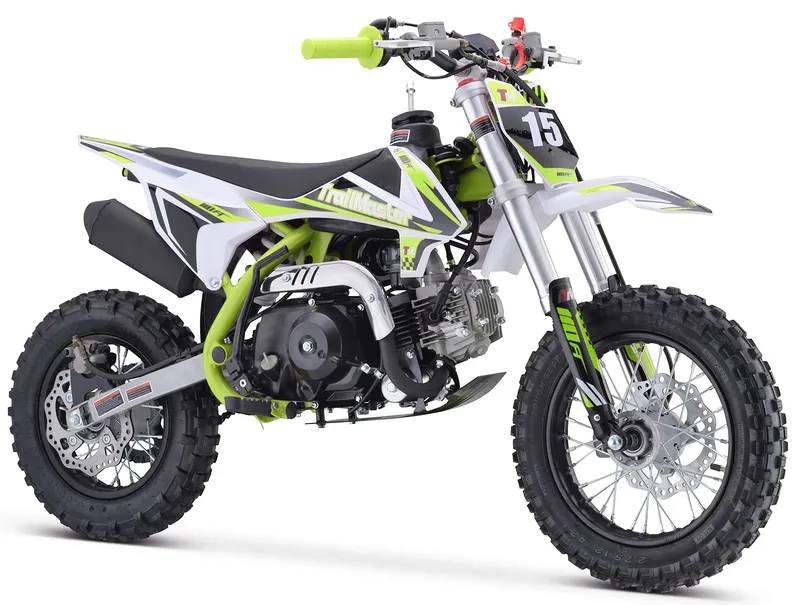

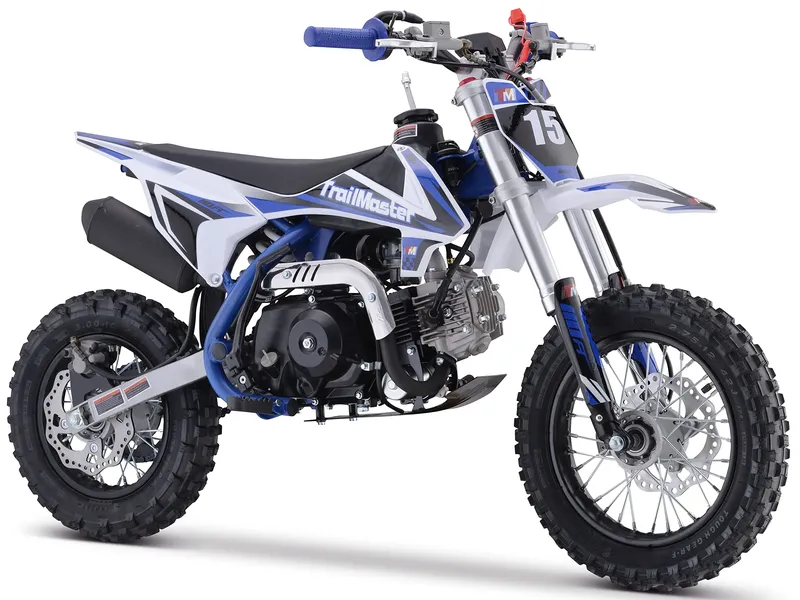

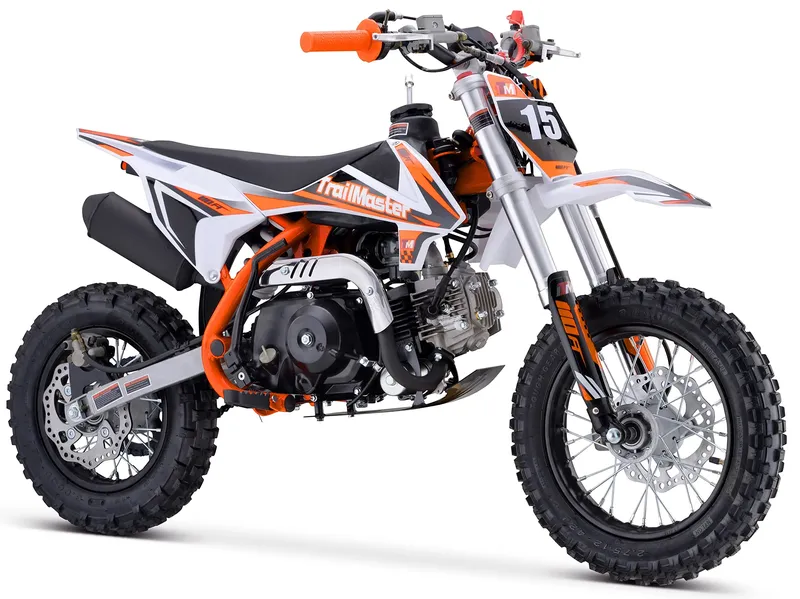

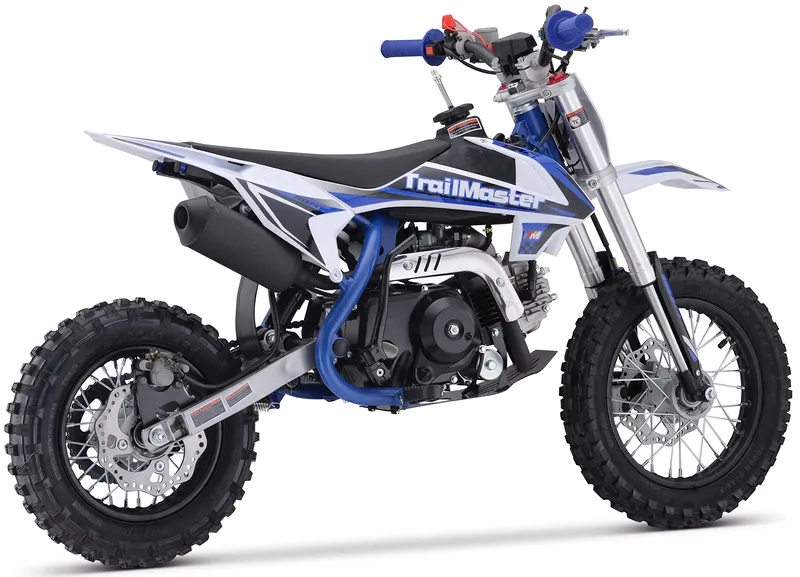

The TrailMaster dirt bike offers a superior frame design, improved suspension, and the industry longest 6 months/6,000 miles warranty on engine and transmission.
Main Features:
- 110cc engine
- Electric start and Kick start
- 4 gears semi auto
- 40 �� wheel base and 24.41�� seat high
- Front tire 12��/Rear Tire 10��
- Hydraulic front and rear disc brakes
Engine System
Engine Type: 110CC, Single Cylinder, 4-Stroke, Air Cooled
Displacement: 107 ml
Shift Type: N-1-2-3-4, Four-Gear, Automatic Clutch
Start Type: Kick & Electric Start
Bore x Stroke: ��52.4��49.5mm
Max Power: 5.0/8000��500 kw/r/min
Max Torque: 7.5/5500��500 N.m/r/min
Compression Ratio: 9.0:1
Min. Fuel Consumpetion:: ��367g/kw.h
Engine Oil #��: SJ5Wһ30
Ignition : CDI
Transmission:: #420 Chain, FT: 14T/RR: 39T Sprocket
Size Data:
Overall Size(L*W*H): 57.5*25.6*34.25in/1460*650*870mm
Wheel Base: 40in/1015 mm
Seat Height: 24.4in/620 mm
Ground Clearance: 8.67in/220mm
Fuel Capacity: 2.2L / 0.58 Gal.
Wheels: Fr. & Rr. Steel 1.40��12 / 1.60×10 Rims, Cast Hubs
Tyre: Fr. & Rr. 2.75×12 / 3.0×10 ,Knobby tires
Frame/Suspension/Brake system:
Frame: Cradle Type Steel Tube Frame
Front Fork: ��39*��42*590MM Inverted Forks, Non-Adjustable
Rear Shock: ��12*270mm , Spring Pre-load
Swing-Arm: Steel Tube 12inch
Handle Bar: Steel Crossbar ,L=620mm; Dia=��22mm
Front Brake: Hydraulic Single Piston Caliper, 190mm Disc
Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
Exhaust: Black Pipe with catalyst converter(EPA Standard)
Packing and Loading:
Packing Size: 49.4*13.2*24.2 inch
N.W/LBS: 111.3 LBS
G.W/LBS: 126.8 LBS
