Description

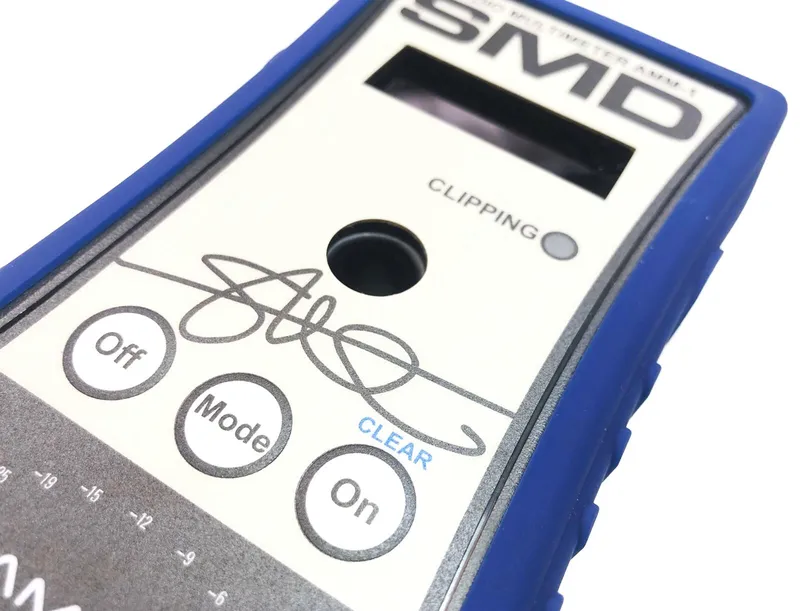

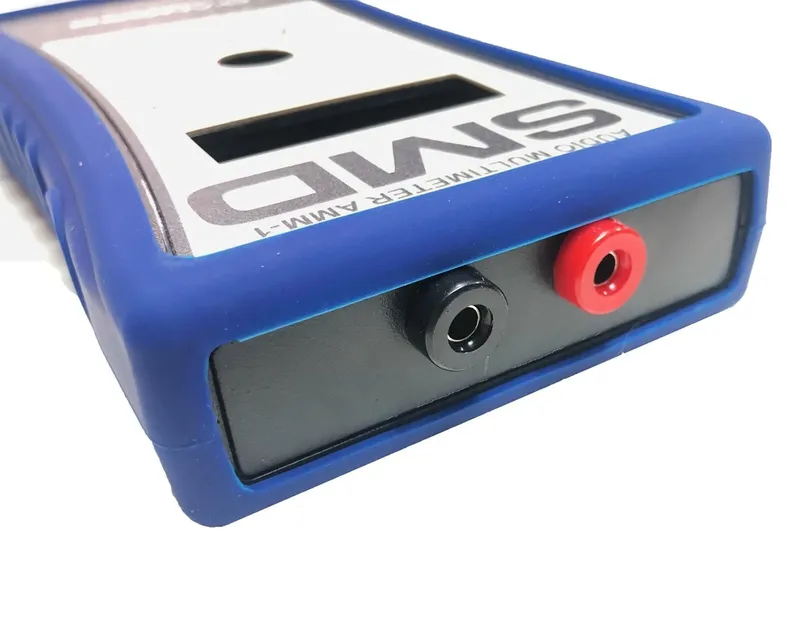

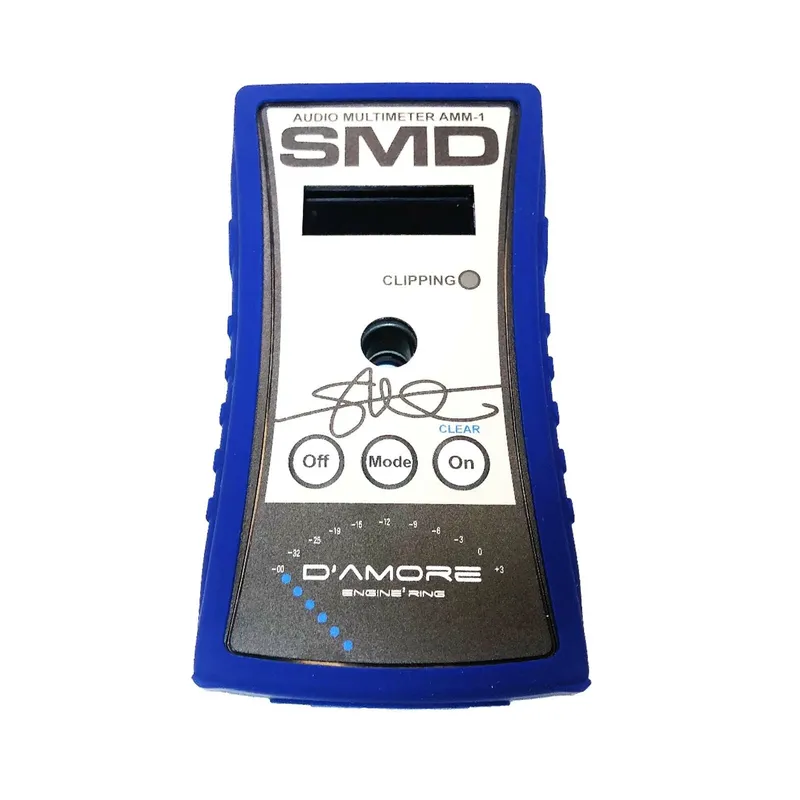

SMD AMM-1 Steve Meade Designs Impedance / Dyno / Wattage Audio Multimeter

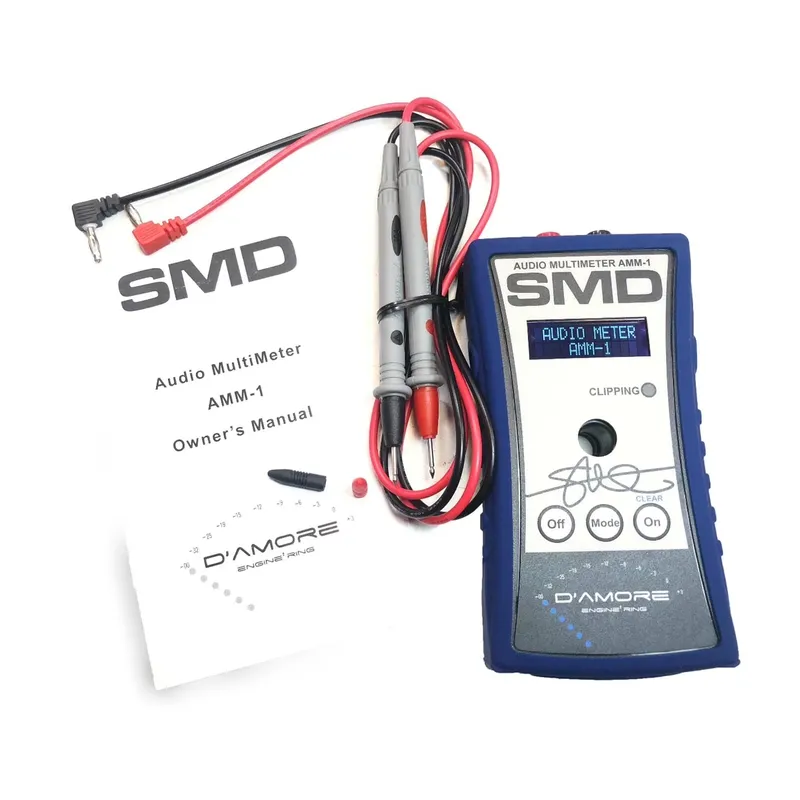

This listing includes:
- (1) AMM-1 tool

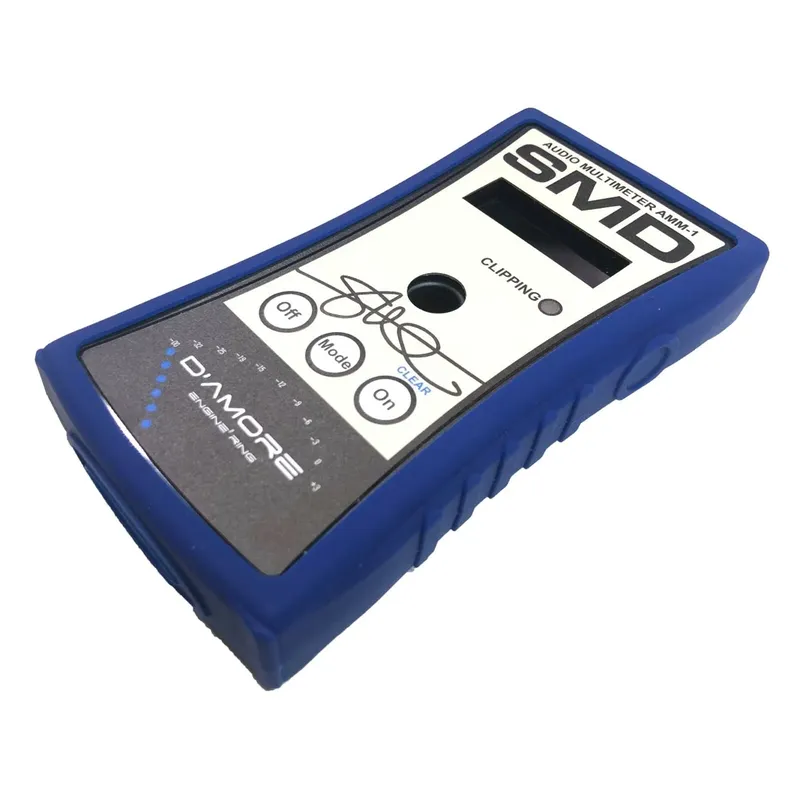

- (1) Protective silicon rubber boot
- (1) Harness
The Audio Multimeter and Handheld Dyno Measure true amplifier power! Measure impedance of speaker boxes. Measure voltage drops, and much more!
Features:
- Measure True Amplifier Power output into any load reactive or resistive
- Measure Common DC voltages
- Measure DC voltage drops during quick transients on cable runs or battery/charging systems
- Measure Impedance of speakers at any power or frequency from 20Hz – 1kHz (box rise)
- Measure Phase Difference between Voltage and Current into reactive loads (Power Factor)
- Find Tuning Frequency of subwoofer enclosures
- Tune subwoofer enclosures for maximum power transfer
- Measure AC Volts (amplifier output)
- Measure AC Amps (amplifier output)
- Measure apparent power (VA)
- Measure Frequency of an Sound Wave
Specifications:
- DC Voltmeter:-100 Volts to 100 Volts
- AC Voltmeter: 0 – 150 VRMS
- AC Ammeter: 0 – 100 ARMS
- AC Apparent Power: 0 – 15,000 VA
- Power Factor: 50 – 100%
- Frequency: 10 – 20,000 Hz
- AC Impedance: 0 – 200 Ohms
- True Power Dyno: 0 – 15,000 Watts
- Auto-shutoff timer 8 – 10 minutes after ON button is pressed
- Battery self-test and display of condition when AMM-1 is initialized
Dimensions:
- Length: 9 inches
- Width: 6 inches
- Height: 2 inches
- Frequency: 10 – 20,000 Hz
- AC Impedance: 0 – 200 Ohms
- True Power Dyno: 0 – 15,000 Watts
- DC Voltmeter:-100 Volts to 100 Volts AC Voltmeter: 0 – 150 VRMS AC Ammeter: 0 – 100 ARMS
- Measure True Amplifier Power output into any load reactive or resistive
