Description

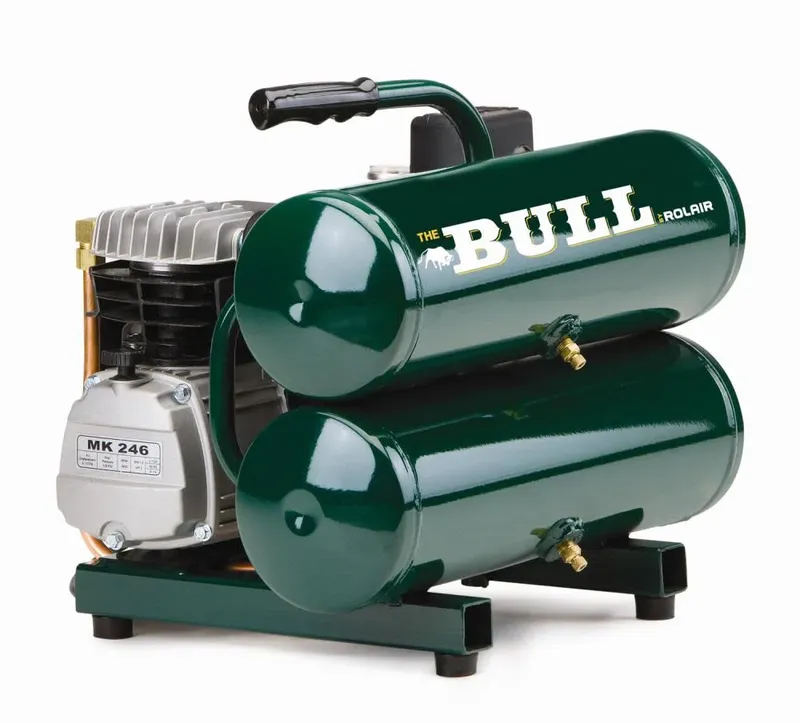

Rolair FC2002 Twin Stack Air Compressor
The Rolair FC2002 “The Bull” is a portable, hand-carry twin stack air compressor built for consistent jobsite air delivery. Its 2 HP motor and oil-lubricated, single-stage pump deliver 4.1 CFM at 90 PSI, making it well-suited for powering common nailers and other pneumatic tools.
Key Features:
- High Air Output: Delivers 4.1 CFM @ 90 PSI for steady tool performance
- Jobsite-Ready Motor: 2 HP, low-amp draw motor with manual reset overload protection and durable ball bearings
- Oil-Lubricated Durability: Splash-lubricated, cast-iron cylinder design with stainless-steel reed valves for long service life
- Portable Stack-Tank Design: Twin stack tank configuration balances capacity with a compact, hand-carry footprint
- Easy Maintenance & Control: Ball valve drain plus built-in regulator and relief valve for accurate, safer pressure control
Specifications Table:
| Specification | Details |
|---|---|
| Category | Tools |
| Sub Category | Air Compressors |
| Unit of Measure | EA – Each |
| Motor | 100% Duty-Cycle Motor |
| Horsepower | 2 HP |
| Voltage | 115 V |
| Phase | 1 |
| Amperage | 13.8 A |
| CFM (Displaced) | 8.7 CFM |
| CFM (Delivered) | 4.1 CFM @ 90 PSI |
| Maximum Pressure Rating | 125 PSI |
| Pump/Motor RPM | 3400 RPM |
| Overload Protection | Yes (Manual Reset Standard) |
| Lubrication Type | Splash Lubrication |
| Pump Design | Oil Lubricated |
| Pump Oil Capacity | 12 oz. |
| Reed Valve System | Yes (Standard) |
| Number of Cylinders | 1 |
| Tank Capacity | 4.3 Gallons |
| Tank Configuration | Twin Stack |
| Tank Material | Steel |
| Decibel Rating | 79 dBA |
| Compressor Design | Portable (Hand Carried) |
| Operating Position | Horizontal |
| Handle Included | Yes |
| Wheeled | No |
| Full Roll Cage | No |
| Tank Pressure Gauge | Yes |
| Switch Type | Pressure |
| Lock-on Switch | No |
| Color | Green |
| Dimensions (L x W x H) | 20 in x 15 in x 17 in |
| Shipping Dimensions (L x W x H) | 22 in x 16 in x 18 in |
| Height | 19.0 in |
| Length | 6 ft |
| Warranty Type | 1 Year Limited |
| UL Listed | Yes |
| ETL Listed | No |
| Indoor / Outdoor | Indoor/Outdoor |
| California Proposition 65 Warning Required | Yes |
| Included | Air Compressor |
| Features | Single stage; ball bearings; cast-iron cylinder; stainless-steel reed valves; splash lubrication |
Frequently Asked Questions (FAQ):
Q: What tools can this compressor run?
A: It’s designed to power common finishing and roofing nailers; output is rated at 4.1 CFM @ 90 PSI for consistent production.
Q: Is it oil-free or oil-lubricated?
A: It’s oil-lubricated (splash lubrication) and uses pump oil (12 oz capacity).
Q: What are the tank size and max pressure?
A: It has a 4.3-gallon twin stack tank and a maximum pressure rating of 125 PSI.
Q: Does it include motor protection?
A: Yes—manual reset overload protection is standard to help reduce motor wear.
Q: How heavy is it and is it easy to move?
A: Listed weight is about 62 lb, and the stack design is intended for easier portability.
Utility, Elevated: The Sculptural Power of a Stack-Tank Classic
There’s something undeniably architectural about the FC2002—those twin stack tanks read like purposeful sculpture, designed to work hard and look composed doing it. The deep green finish and compact, hand-carry silhouette bring a disciplined order to the workshop, garage, or studio corner where function matters. Pair it with a curated wall of tools and a clean rolling cart to create a space that feels intentional—industrial, but refined. It’s the kind of essential that makes the everyday ritual of making and fixing feel quietly luxurious.
Bring home the Rolair FC2002 for reliable, portable air power that keeps your pneumatic tools working at their best.
