Description
Termination bar with sealant ledge (10 ft)

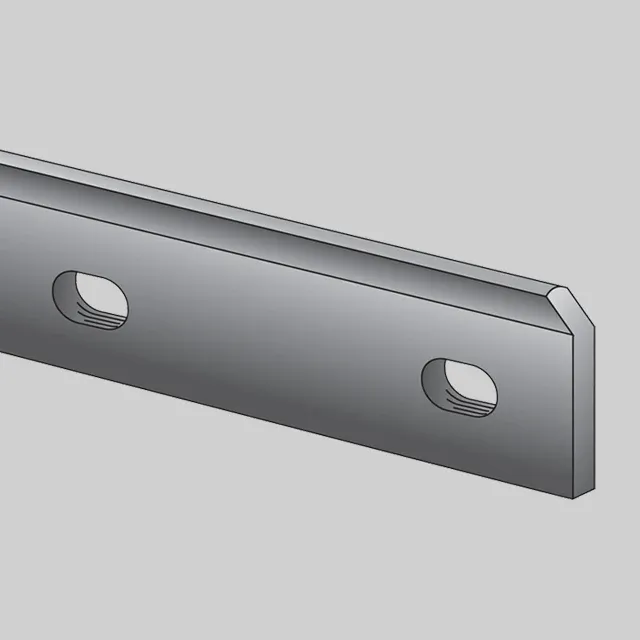

The Mule-Hide TB-75 Termination Bar with sealant ledge is an extruded aluminum termination bar designed to secure single-ply membranes at parapet walls and penetrations. Featuring a mill finish and pre-punched holes, it provides a clean, consistent termination detail when used with appropriate water cut-off.
Key Features:
- Secure Membrane Termination: Designed specifically to terminate single-ply membrane at parapet walls and other penetrations
- Built-In Sealant Ledge: Ledge on one edge helps create a neat sealant line at the termination
- Pre-Punched for Consistent Fastening: Horizontal mounting holes pre-punched 6 in. on center
- Durable Aluminum Construction: Extruded aluminum alloy with mill finish for long-lasting performance
- Application Guidance: Must use water cut-off when used as a termination bar; not intended for use as a batten bar or for wrapping corners
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer part number (SKU) | 08MHTB75 |
| Model | TB75 / TB-75 |
| Product type | Termination bar with sealant ledge |
| Length | 10 ft |
| Thickness | 0.075 in |
| Material | Extruded aluminum alloy |
| Finish | Mill finish |
| Mounting hole pattern | Horizontal pre-punched holes, 6 in on center |
| Intended use | Terminate single-ply membrane to parapet walls and other penetrations |
| Compatible membranes | Can be used on all membranes including Mod Bit |
| Installation note | Must use water cut off when used as termination bar |
| Limitations | Can only be used as a termination bar; cannot be wrapped around corners; cannot be used as a batten bar |
| Unit of measure | PC (Piece) |
| Category | Fasteners & Hardware |
| Subcategory | Termination Bars & Fastening Bars |
Frequently Asked Questions (FAQ):
Q: What is this bar used for?
A: It is designed to terminate (secure) single-ply membrane to parapet walls and other penetrations.
Q: Does it have pre-punched holes?
A: Yes—horizontal pre-punched mounting holes are spaced 6 inches on center.
Q: Do I need additional sealant or accessories?
A: Yes—Mule-Hide notes that water cut-off must be used when it’s used as a termination bar.
Q: Can it be used as a batten bar or wrapped around corners?
A: No—Mule-Hide states it cannot be used as a batten bar and cannot be wrapped around corners.
A Crisp Edge Detail for Every Perfect Line
There’s a quiet luxury in architectural precision—the TB-75 brings that same discipline to the roofline with its clean mill-finish aluminum and purposeful sealant ledge. The slim profile reads as modern and intentional, creating a sharp, tailored termination that feels meticulously resolved. Use it wherever membranes meet vertical planes—parapets and penetrations—so every transition looks designed, not improvised. It’s the kind of behind-the-scenes essential that elevates the whole envelope with confidence.
Choose the Mule-Hide TB75 to deliver a clean, durable membrane termination detail with a built-in sealant ledge.
