Description

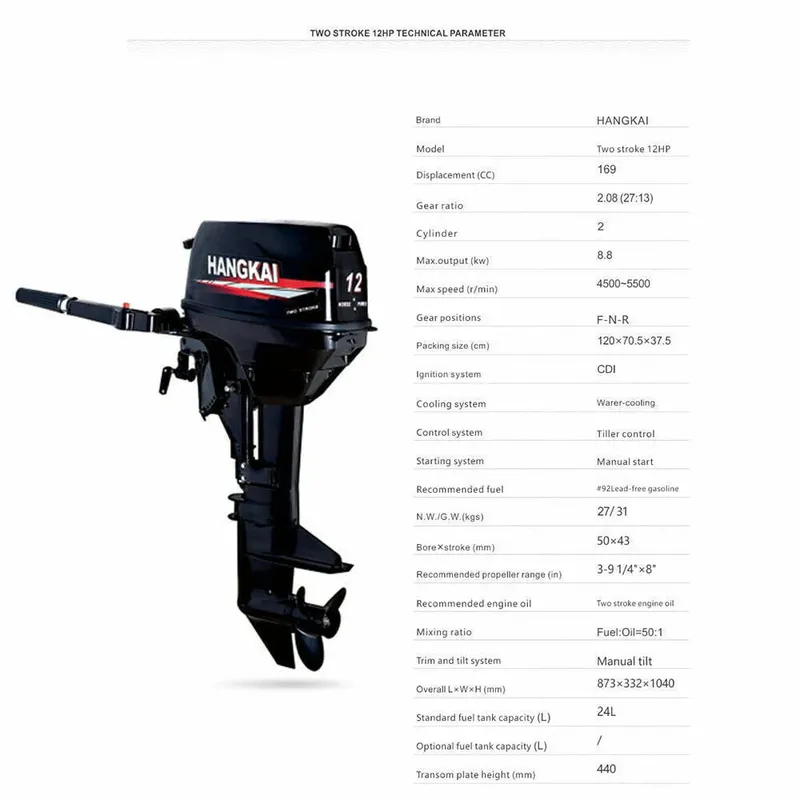

<p>Specifications:</p><p>Brand: HANGKAI</p><p>Displacement: 169CC</p><p>Gear ratio: 2.08(27:13)</p><p>Cylinder: 2</p><p>Max.Output(kw): 8.8</p><p>Max.speed(r/min): 4500-5500</p><p>Gear Positions: F-N-R</p><p>Packing size: 120×70.5×37.5cm</p><p>Ignition System: CDI</p><p>Cooling System: Water-cooling</p><p>Control System: Tiller control</p><p>Starting System: Manual start</p><p>Control System: 93 gasoline</p><p>N.W./G.W.(kgs): 27/31</p><p>Bore x Stroke(mm): 50×43</p><p>Recommended Propeller range: 3 -9″1/4”x8″</p><p>Recommended Lubricant: 2 Stroke Lubricating oil</p><p>Mixing ratio: Fuel:oil=50:1</p><p>Trim and tilt system: Manual Tilt</p><p>Overall LxWxH(cm): 78.3×33.2×104</p><p>Standard fuel tank capacity: 24L</p><p><br></p><p>Please Must Read before using</p><p>Firstly, Fill the gear oil (open gear box lid and fill it)</p><p>Secondly, Fill NO. 92 petrol, lightly press oil pump 6-10 times</p><p>Thirdly, Fill engine oil don’t exceed the head of the pattern</p><p>Forthly, turn the throttle to the start up and turn the accelerator gets up to 50percent</p><p>Then, Rapidly pull the starter line</p><p>After the motor start, please turn the throttle to running state</p><p>Then, it can be operated now</p><p>Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor</p><p><br></p><p>Don’t do the following will avoid cylinder Scoring</p><p>1. Start the motor in the water</p><p>2. Use the motor when it stop cyling water</p><p>Even if you want test the motor, it should be done in the river</p><p>When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked</p>
