Description
Pneumatic siding coil nailer

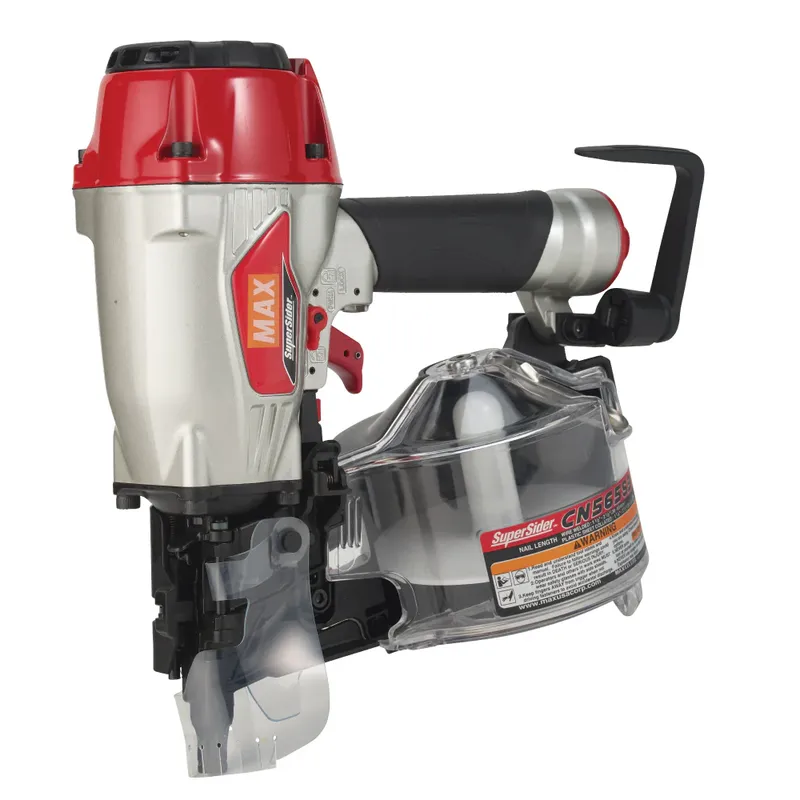

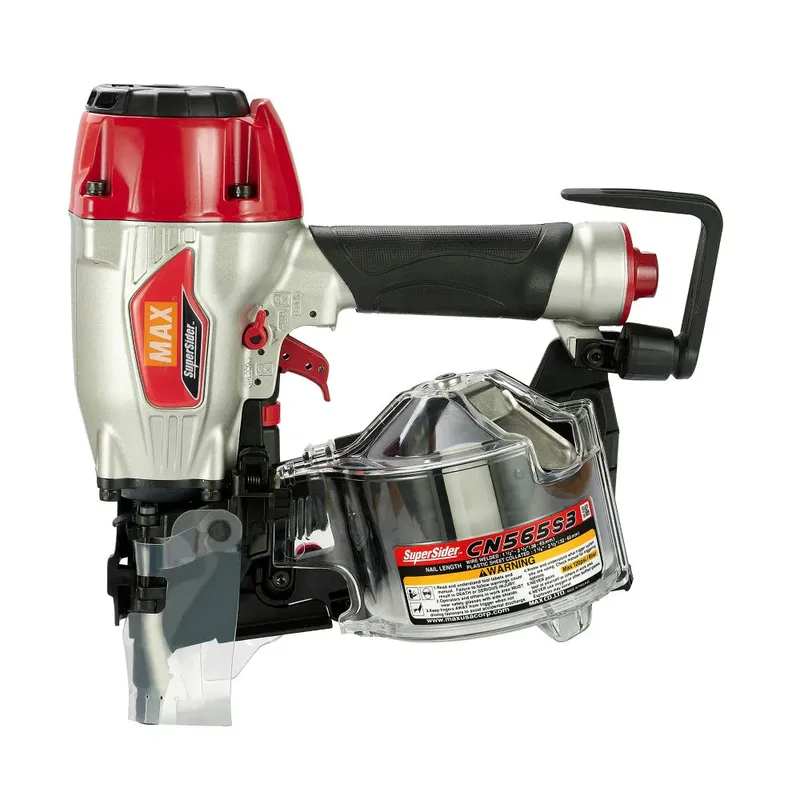

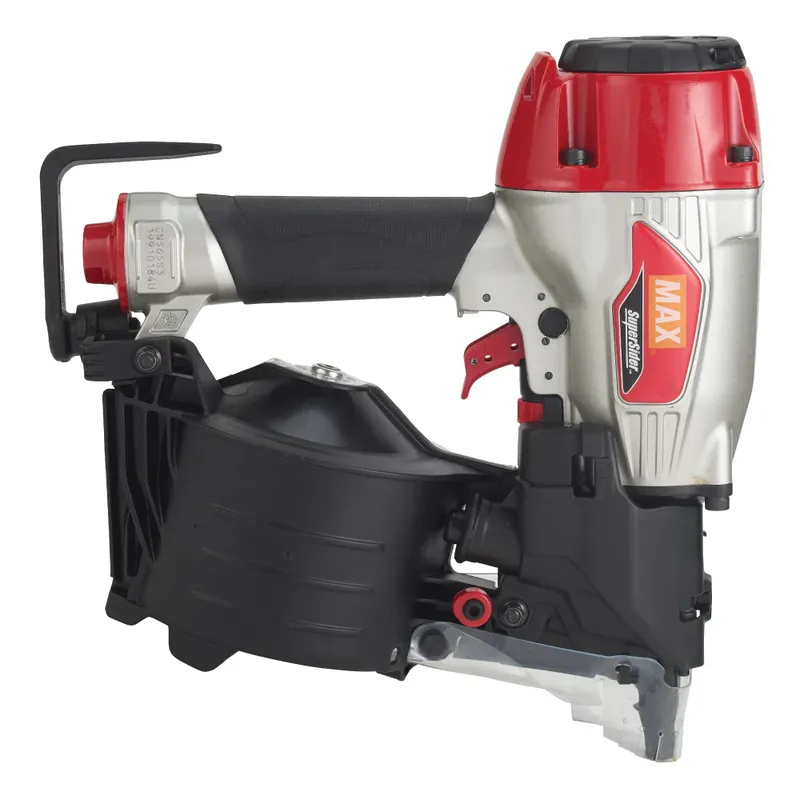

The MAX SuperSider CN565S3 is a lightweight, well-balanced pneumatic coil nailer designed for fast, clean siding installation. Its slim contact arm helps place nails accurately in tight spots, while adjustable depth-of-drive and exhaust let you dial in consistent results.
Key Features:
- Precision Siding Placement: Slim contact arm and contact nose help drive nails straight and flush, even in hard-to-reach areas.

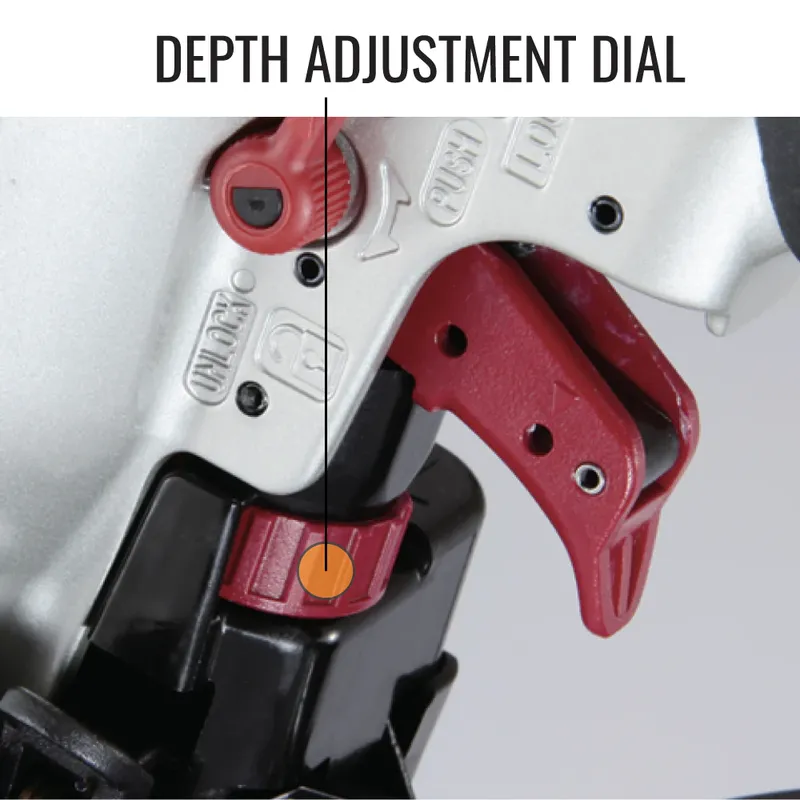

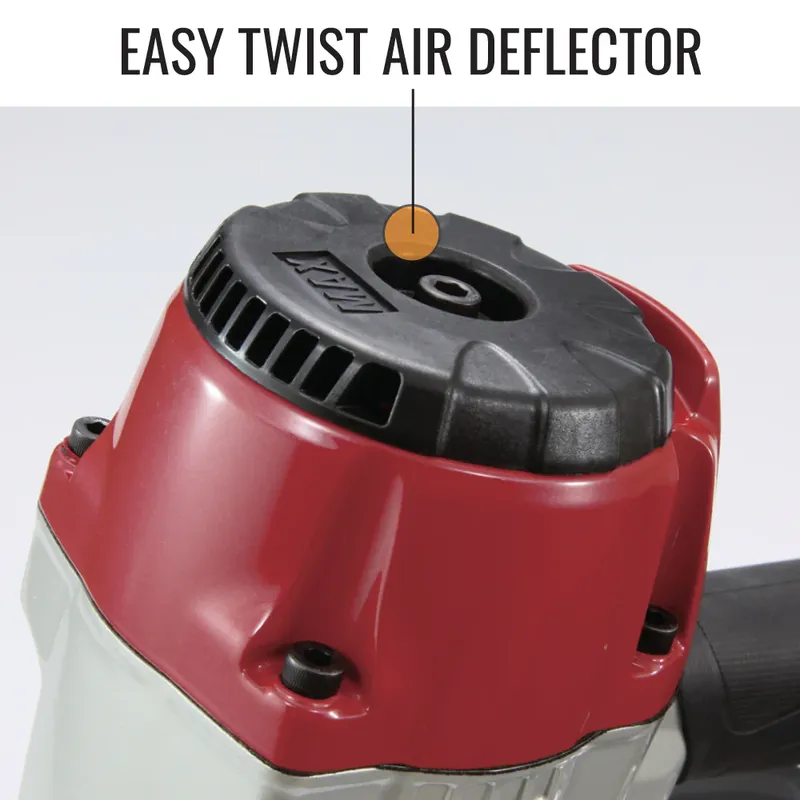

- Jobsite-Tunable Performance: Adjustable depth-of-drive and easy-twist air deflector (adjustable exhaust) for better control and comfort.
- High-Capacity Coil Magazine: Holds up to 400 nails to reduce reload time on high-volume work.
- Lightweight Magnesium Build: Magnesium housing helps keep tool weight low for extended use.

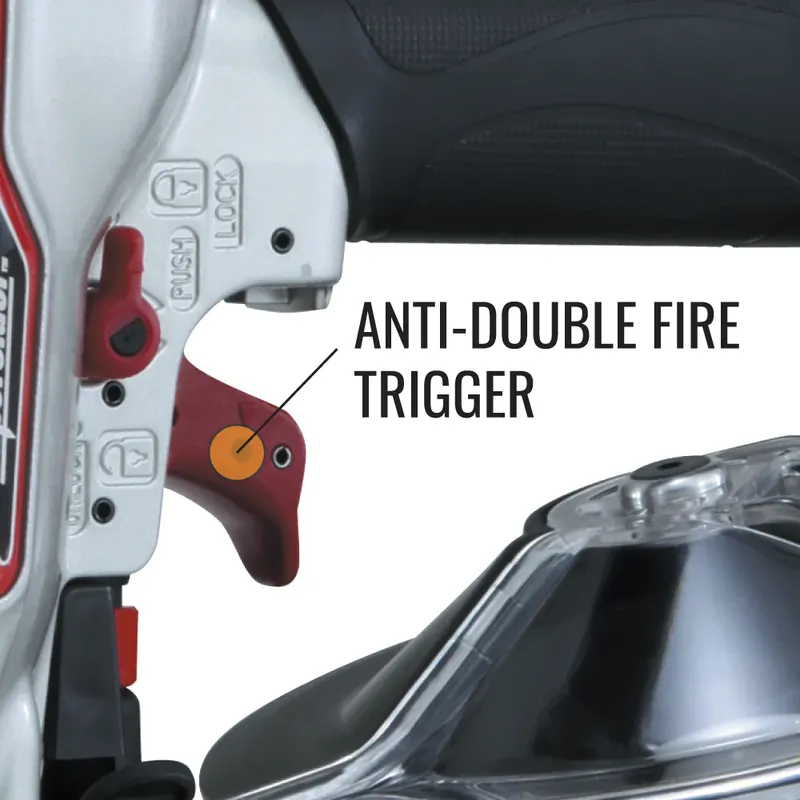

- Built-In Safety Features: Anti-double fire trigger mechanism helps reduce unintended double firing.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Model | CN565S3 (SuperSider) |
| Power type | Pneumatic |
| Power source | Air |
| Magazine type | Coil |
| Collation type | Wire Weld |
| Nail angle | 15 Degree |
| Fastener type | Siding/Fencing nails |
| Minimum fastener length | 1-1/4 in. |
| Fastener length range (wire collated) | 1-1/2 in. to 2-1/2 in. |
| Fastener length range (plastic collated) | 1-1/4 in. to 2-1/2 in. |
| Fastener diameter range | 0.083 in. to 0.099 in. |
| Magazine capacity | 400 |
| Operating pressure | 70 to 120 PSI |
| Air inlet size | 1/4 in. NPT |
| Air consumption | 0.05 SCFM |
| Firing type | Double Trigger |
| Depth control | Yes |
| Special features | Adjustable exhaust |
| Housing material | Magnesium |
| Item length | 10-7/8 in. |
| Item height | 11-7/8 in. |
| Item width | 5 in. |
| Usage type | Exterior |
| Application type | Fencing, Decking, Siding |
| Included in box | Safety glasses |
| Case/bag included | Yes |
| Manufacturer warranty | Five-Year Limited |
Frequently Asked Questions (FAQ):
Q: What nail sizes does the CN565S3 accept?
A: It drives 15° coil nails; wire-collated nails from 1-1/2″ to 2-1/2″ and plastic-collated nails from 1-1/4″ to 2-1/2″.
Q: What air pressure does it require?
A: 70–120 PSI operating pressure.
Q: How many nails fit in the magazine?
A: Up to 400 nails (coil magazine).
Q: Does it have depth adjustment and adjustable exhaust?
A: Yes—depth control is adjustable, and it features an adjustable exhaust/easy-twist air deflector.
Q: What’s included in the box?
A: Safety glasses (and the listing also indicates a case/bag is included).
Crisp Lines, Flawless Cladding
When your exterior finish is all about rhythm and precision, the tool matters. The CN565S3’s slim contact arm lets you land each fastener exactly where it belongs—clean, flush, and beautifully controlled—so siding reads as one uninterrupted plane. Pair it with thoughtful material transitions and tight reveals for a façade that feels intentionally tailored. It’s the kind of behind-the-scenes essential that elevates the entire envelope into effortless luxury.
Choose the MAX CN565S3 to speed up siding installs and achieve consistently clean, accurate nail placement.
