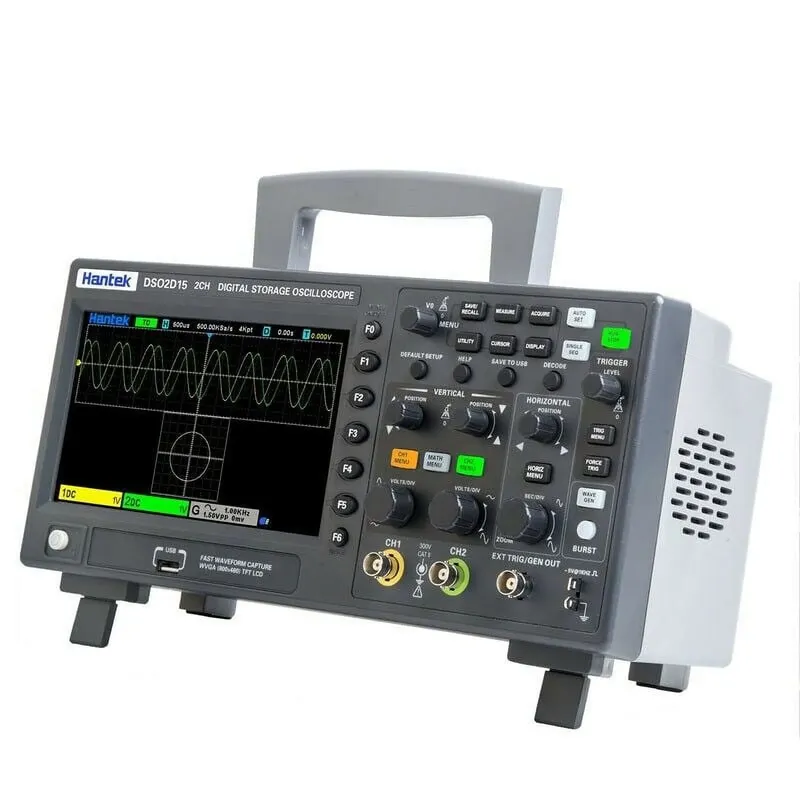

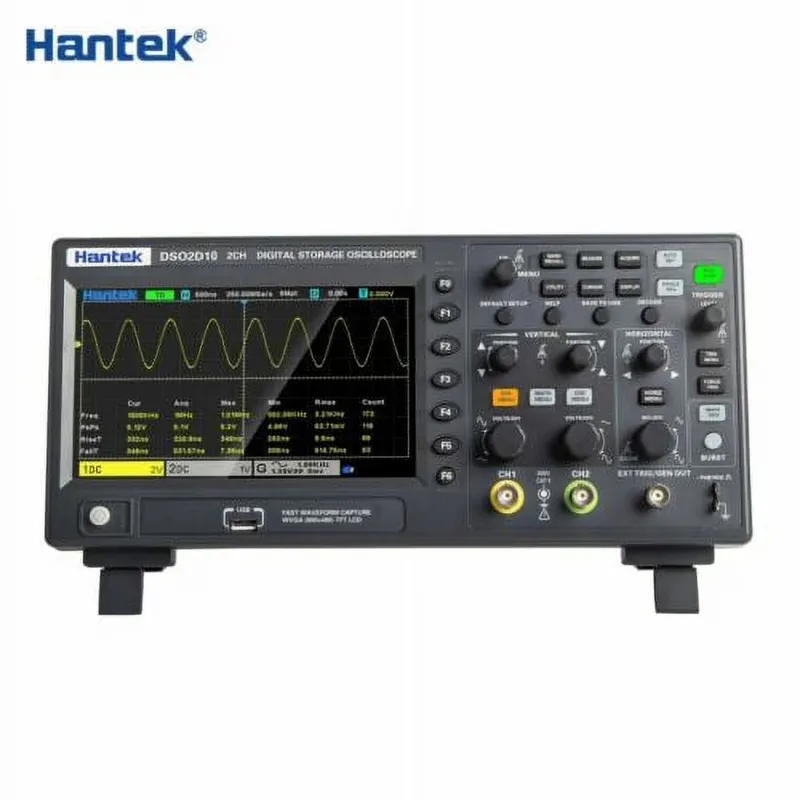

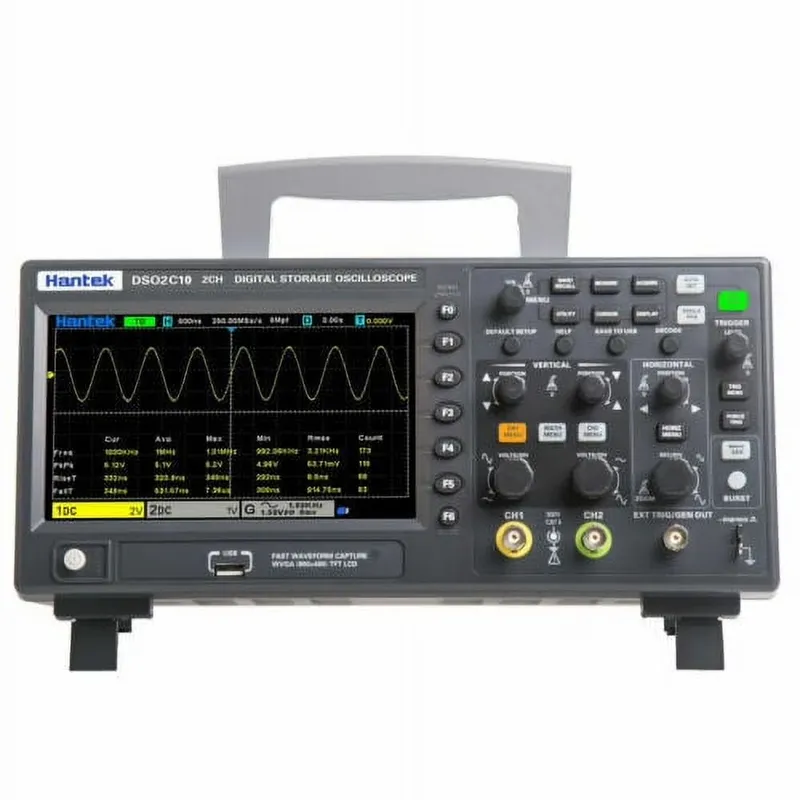

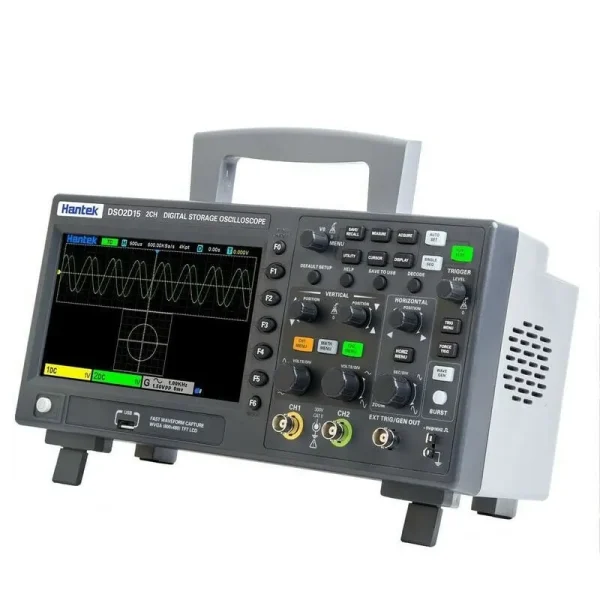

DSO2000 Series
Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
Feature:

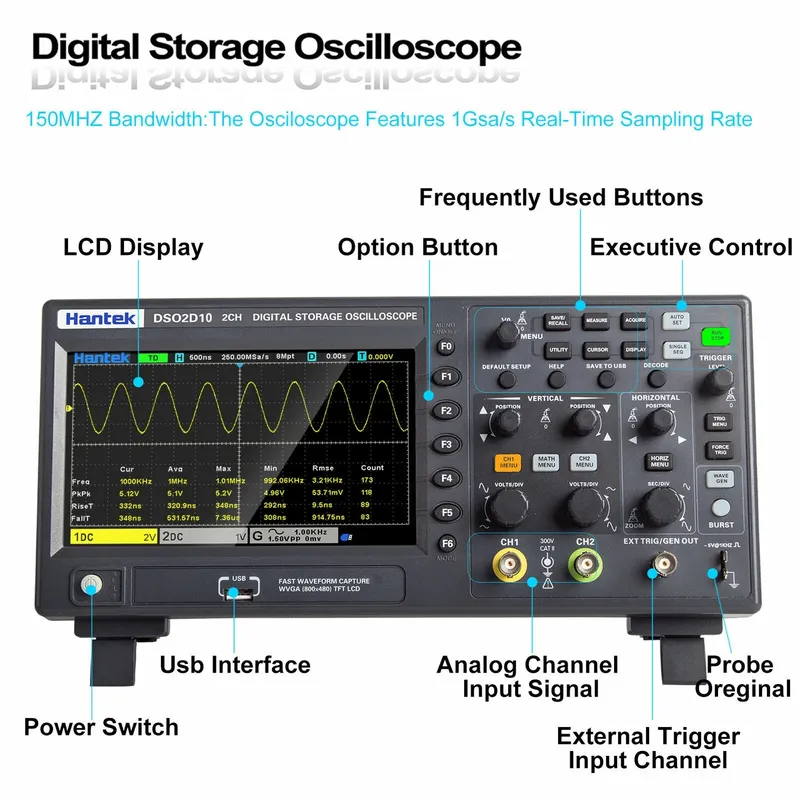

1) 2 channels which are respectively controlled by independent knobs
2) 100 MHZ and 150MHZ analog channel bandwidth
3) Sampling rate up to 1 GSa/s
4) 8M memory depth
5) Vertical range 2mV/div ~ 10V/div

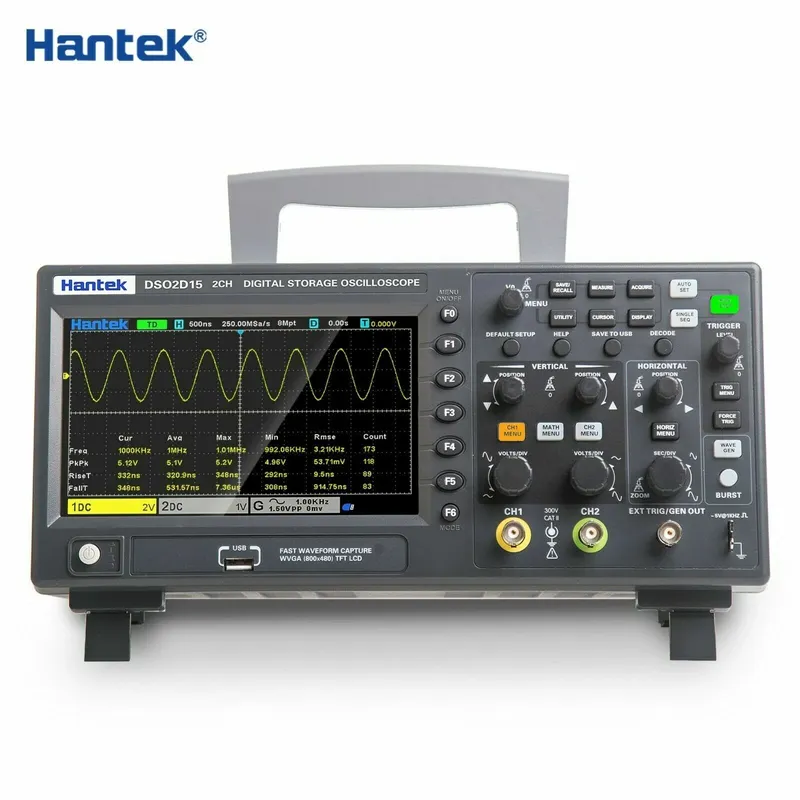

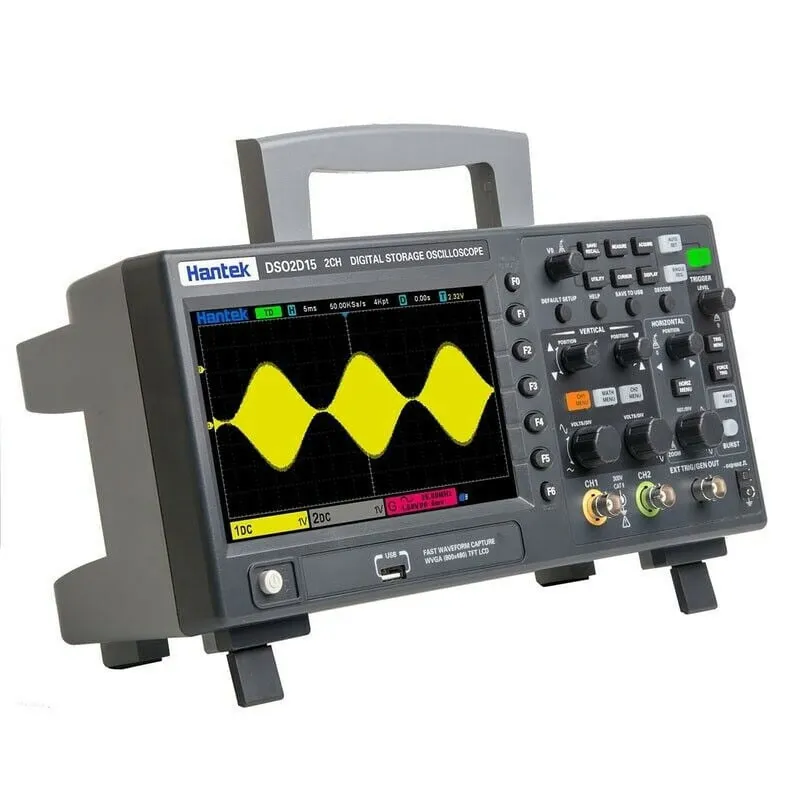

6) Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)
7) Vertical resolution: 8bit
8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
13) 2 sets of digital voltmeters
14) Support threshold testing, free measurements within the screen
15) Abundant SCPI remote command control
16) USB Host/Device.
NOTE:

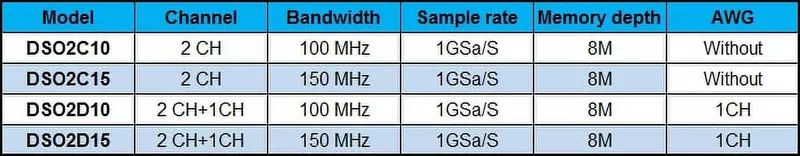

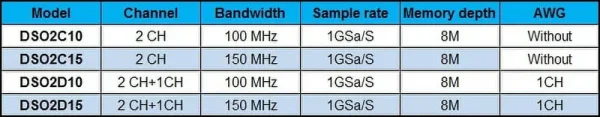

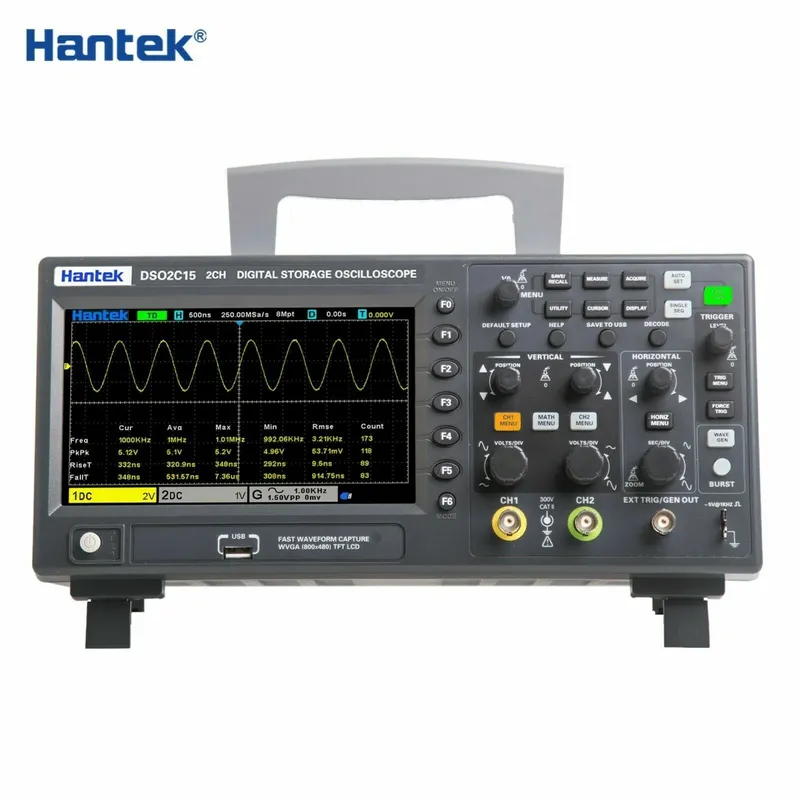

DSO2C10 and DSO2C15 have no waveform generator function!

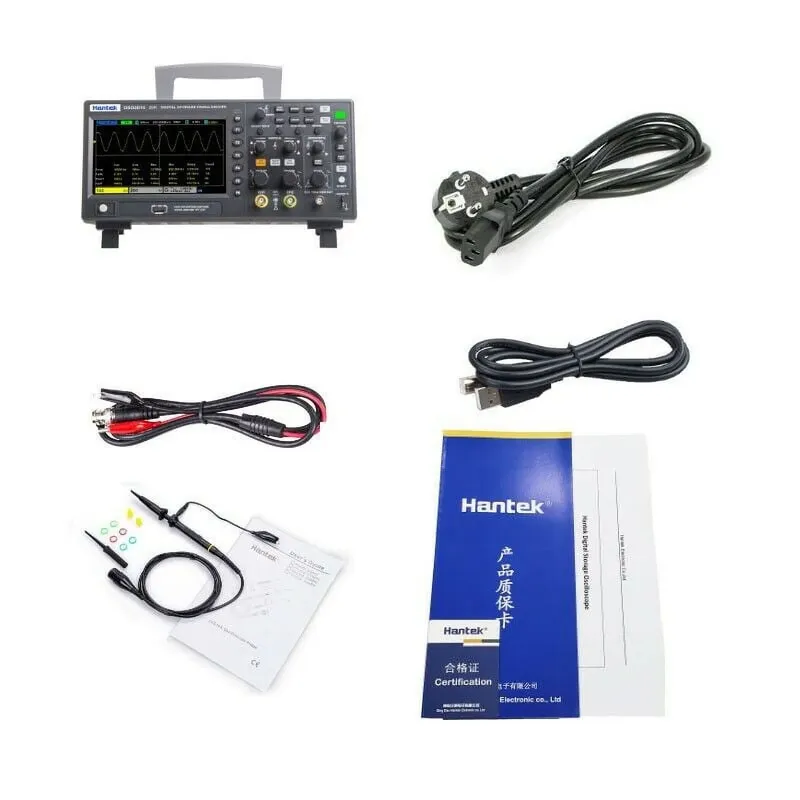

Package includes:
1��Digital Oscilloscope Set��Delivery according to the model specifications you choose��Hantek Digital Storage Oscilloscope 1GSa/S 8M DSO2C10 DSO2C15 DSO2D10 DSO2D15
