Description

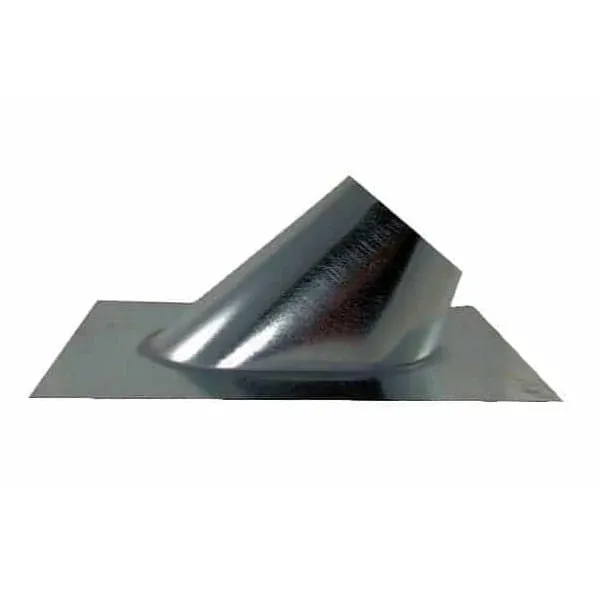

Galvanized 4-inch plumber’s pipe flashing
This galvanized plumber’s pipe flashing helps create a watertight transition where a pipe penetrates a steep-slope roof. Built from durable galvanized steel with a wide flange for alignment, it’s designed for 7/12–12/12 roof pitches and a 4-inch pipe opening.
Key Features:
- Watertight Roof Penetration: Helps flash around plumbing/vent pipes to reduce leak risk at the roof deck.
- Durable Galvanized Steel: Metal construction designed for exterior roofing exposure.
- Steep-Slope Fit: Intended for roofs in the 7/12–12/12 pitch range for proper pipe angle alignment.
- Wide Base Flange: Large flange footprint supports positioning and integration with roofing materials.
- No Field Trimming Required: Designed to install without cutting the flashing to fit.
Specifications Table:
| Specification | Details |
|---|---|
| Product name | Galv Plumbers Flsh 4.0 12/12 Shk ML |
| Category | Flashing |
| Sub-category | Roof Boots, Roof Jacks & Pipe Base Flashing |
| Description | Galvanized Plumbers Flashing 4.0″ 12/12 Shake Mill |
| Unit of measure | Piece (PC) |
| Pipe size | 4 in |
| Roof pitch compatibility | 7/12–12/12 |
| Material | Galvanized steel |
| Gauge | 28 gauge |

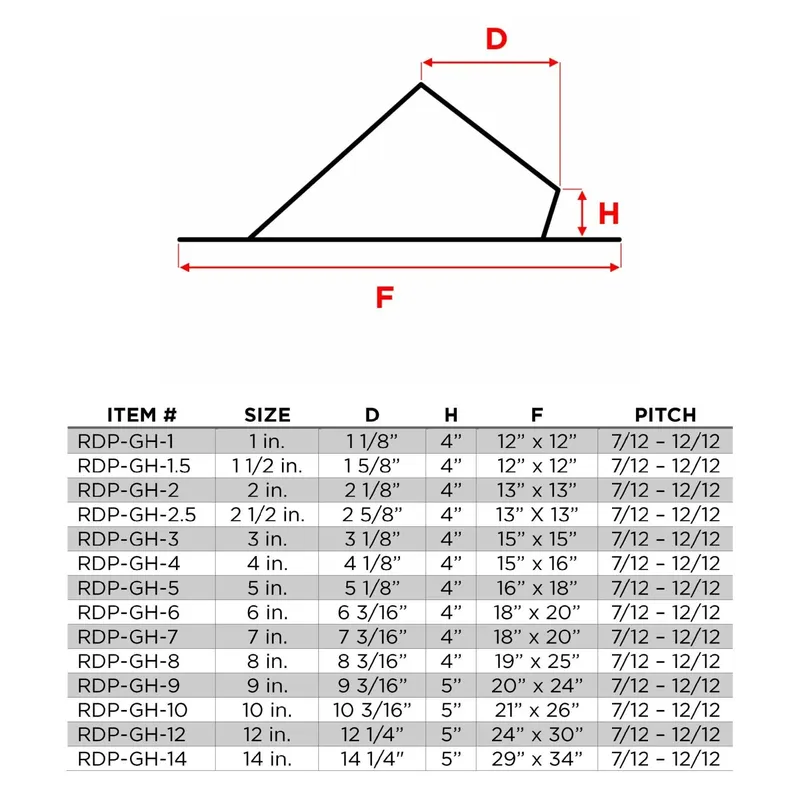

| Flange/base size (F) for 4 in model | 15 in x 16 in |
| Dimension D for 4 in model | 4 1/8 in |
| Dimension H for 4 in model | 4 in |
Frequently Asked Questions (FAQ):
Q: What pipe size does this flashing fit?
A: It’s sized for a 4-inch pipe opening (4 in).
Q: What roof pitches is this flashing intended for?
A: Steep-slope applications in the 7/12–12/12 pitch range.
Q: What is it made from?
A: Galvanized steel (listed as heavy-duty 28-gauge galvanized steel in supplementary product data).
Q: Do I need to trim it to install?
A: No—this style is designed so no field trimming is required for installation.
Q: What is the base flange size for the 4-inch model?
A: For the 4-inch size, the flange (F) is shown as 15 in x 16 in.
A crisp, architectural finish for every roofline detail
There’s something undeniably refined about well-resolved transitions—this galvanized pipe flashing turns a necessary roof penetration into a clean, intentional architectural moment. The sharp geometry and generous flange read like tailored metalwork, giving the roofline a quieter, more considered finish. Pair it with complementary metal accents—gutter details, chimney caps, or hardware—to create a cohesive exterior story. It’s the kind of behind-the-scenes essential that elevates durability into design confidence.
Choose the 4-inch galvanized plumber’s pipe flashing to seal steep-slope roof penetrations with a clean, durable fit.
