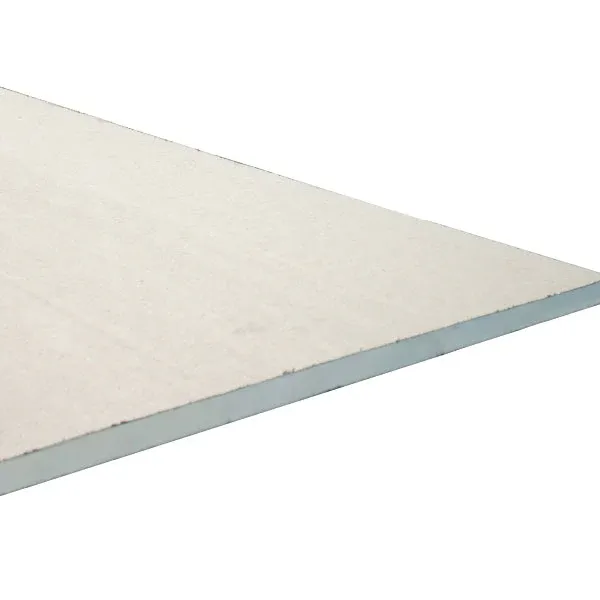

Elevate ISOGARD GL Polyiso Roof Insulation Board (2 in., 4 ft. x 4 ft.)
Elevate ISOGARD GL is a rigid polyiso roof insulation board with glass-reinforced mat facers on both sides for durable commercial roofing performance. Its closed-cell foam core delivers strong thermal resistance (R-11.4) in a compact 4 ft. x 4 ft. sheet.
Key Features:
- High Thermal Performance: R-11.4 polyiso core helps reduce heat transfer through the roof assembly.
- Durable Dual Facers: Glass-reinforced mat facer on both sides supports jobsite toughness and secure attachment.
- Commercial Roofing Ready: Designed for flat (and tapered systems) to support thermal performance in roof applications.
- Flexible Attachment Options: Can be installed with hot asphalt, low-rise foam adhesive, or mechanical fastening (per assembly requirements).
- Ozone-Depletion Free Blowing Agent: Uses HCFC-free blowing agent that is ODP-free (does not deplete the ozone layer).
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Elevate |
| Product line / family | ISOGARD GL Insulation |
| Material | Polyiso (polyisocyanurate) closed-cell foam core |
| Faser / facer type | Glass-reinforced mat facer on both sides |
| Color | Gray |
| Thickness | 2 in. |
| Width | 4 ft. |
| Length | 4 ft. |
| Coverage (per sheet) | 16 sq ft |
| R-Value | 11.4 |
| Compressive strength | 20 PSI |
| Fire rating | 50-160 |
| Pieces per unit | 24 sheets |
| Manufacturer part number | W841112004 |
| Blowing agent | EPA-accepted; HCFC-free; ODP-free |
Frequently Asked Questions (FAQ):
Q: What are the board dimensions and thickness?
A: Each sheet is 4 ft. x 4 ft. and 2 inches thick.
Q: What R-value does this insulation provide?
A: It is listed as R-11.4.
Q: What is the facing material?
A: It has a glass-reinforced mat facer on both major surfaces.
Q: How can it be attached/installed?
A: It may be attached with hot asphalt, low-rise foam adhesive, or mechanically fastened with appropriate roofing fasteners/plates (per the roof assembly specs).
Q: Is the blowing agent ozone-depleting?
A: No—it’s described as HCFC-free and ODP-free (does not contribute to ozone depletion).
A Crisp, Architectural Layer of Comfort
There’s something quietly luxurious about a surface that performs beautifully while staying visually restrained—ISOGARD GL does exactly that. The clean, glass-mat facer feels tailored and architectural, bringing a refined discipline to the roofline. Use it to build a smarter envelope where comfort reads as calm, not complication. It’s the kind of behind-the-scenes essential that makes the entire space feel more elevated.
Upgrade your roof assembly with Elevate ISOGARD GL for high-performance insulation in a durable, easy-to-handle 4′ x 4′ sheet.
