Description

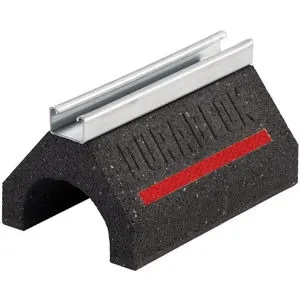

DB10 Dura-Blok rooftop support with channel
The Dura-Blok DB10 rooftop support base provides a stable mounting point for rooftop piping, HVAC equipment, and other systems. It features an integrated channel and a 500 lb load capacity to help support installations while maintaining a compact footprint.
Key Features:
- Integrated Channel Support: Support base with built-in channel for mounting rooftop components
- High Load Capacity: Rated for up to 500 lb load capacity/work load limit
- Compact Profile: 5 in height with a small base footprint for rooftop installations
- Corrosion-Resistant Finish: Electro-plated / electrogalvanized zinc finish (source-dependent)
- Multiple Use Cases: Suitable for piping systems, cable tray, HVAC equipment, and other rooftop applications
Specifications Table:
| Specification | Details |
|---|---|
| Product name | Dura-Blok DB10 Rooftop Support |
| Catalog number / Mfr part no. | DB10 |
| UPC | 782051499728 |
| Product type / Style | Support base with channel / Base with Channel |
| Height | 5 in |
| Length/Depth | 6 in (Eaton); 9-19/32 in (Fastenal) |
| Width | 9.6 in (Eaton); 6 in (Fastenal) |
| Product weight | 5.28 lb (Eaton); 5.275 (Fastenal) |
| Load capacity / Work load limit | 500 lb |
| Finish | Electro-plated (Eaton); ElectroGalvanized Zinc (Fastenal) |
| Material | Cast iron (Eaton); Rubber / Steel (Fastenal) |
| Channel size | 1 in |
| Thickness | 14 ga |
| Application | Support for piping systems, cable tray, HVAC equipment, walking systems, other applications |
| Notes | Manufactured from 100% post consumer recycled rubber. |
Frequently Asked Questions (FAQ):
Q: What is the load capacity of the DB10 support?
A: It is rated for 500 lb load capacity (work load limit).
Q: What are the dimensions of the DB10 rooftop support?
A: Eaton lists 5 in (H) x 6 in (L/Depth) x 9.6 in (W); Fastenal lists 5 in (H) with 6 in width and 9-19/32 in length.
Q: What material is the DB10 made from?
A: Eaton lists cast iron; Fastenal lists rubber/steel and notes it is manufactured from 100% post-consumer recycled rubber.
Q: What is the finish on the DB10?
A: Eaton lists electro-plated; Fastenal lists electrogalvanized zinc.
Q: What is the channel size?
A: Fastenal lists a 1 in channel size.
A Quietly Powerful Base for Rooftop Order
Think of this support as the hidden foundation that makes rooftop systems feel intentional—clean lines, elevated, and controlled. The integrated channel creates a crisp, architectural moment that keeps components aligned and composed. Use it to organize rooftop runs with a rhythm that feels designed, not improvised. It’s a small detail that delivers big, luxe-level discipline in the most demanding spaces.
Add the Dura-Blok DB10 to your rooftop build to get a compact, channel-ready support with a 500 lb rating.
