Description
Product Overview

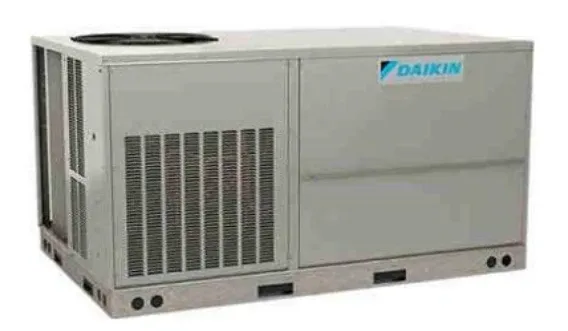

The DSH0723W000001F is a 6-ton light commercial packaged heat pump rooftop unit engineered to provide both electric heating and cooling in a single self-contained system. Designed for small to mid-size commercial applications, it delivers dependable year-round comfort for spaces such as retail stores, offices, restaurants, schools, and other light commercial buildings.
Built for performance and reliability, this model uses a high-efficiency scroll compressor system paired with a high-static ECM indoor blower motor, allowing it to maintain strong, consistent airflow even in duct systems with higher resistance or longer runs. Its factory-assembled, charged, and tested design helps reduce installation time, minimize field labor, and improve overall system reliability.
The unit is intended for rooftop or curb-mounted installation and features a heavy-duty, weather-resistant cabinet designed to withstand demanding outdoor environments. With convertible airflow configurations (horizontal or downflow), it supports flexible installation for both new construction and retrofit applications.
Quick Facts
- System Type: Packaged Rooftop Heat Pump (Heating & Cooling)
- Cooling Capacity: ~6 tons (≈68,000 BTU nominal)
- Heating Capacity: ~67,000 BTU equivalent output (electric heat pump operation)
- Refrigerant: R-32 / R-410A platform dependent (revision-specific)
- Power Supply: 208/230V, 3-phase, 60 Hz
- Compressor Type: High-efficiency scroll compressor (two-stage operation)
- Fan System: Direct-drive ECM indoor blower motor (high-static capable)
- Airflow: ~2,300–2,400 CFM nominal range
- Efficiency: ~16–17 SEER / IEER (configuration dependent)
- Installation: Rooftop or curb-mounted (new construction or retrofit)
- Cabinet: Heavy-duty galvanized steel, weather-resistant construction
- Application: Small to mid-size commercial buildings
- Design Focus: High-static duct capability, energy efficiency, and simplified rooftop installation
