Description
Product Overview

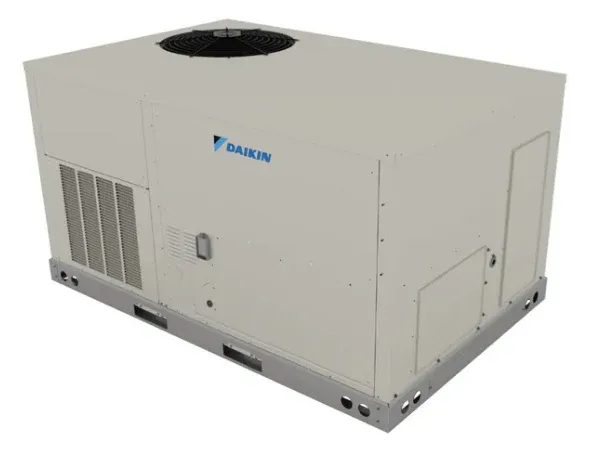

The DRG0603DL00001S is a 5-ton light commercial packaged rooftop gas/electric HVAC system designed to provide both efficient cooling and integrated gas heating in a single self-contained unit. It is built for medium to larger commercial applications such as offices, retail spaces, and other light commercial buildings requiring reliable year-round climate control.
Engineered for performance and efficiency, the system features a high-efficiency scroll compressor and a direct-drive ECM indoor blower motor to deliver consistent airflow, quiet operation, and stable temperature control. Its factory-assembled and tested design helps reduce installation time, simplify startup, and improve long-term reliability.
Designed for rooftop or curb-mounted installation, the unit includes a durable, weather-resistant cabinet and flexible airflow configurations (horizontal or downflow), making it suitable for both new construction and retrofit applications.
Quick Facts
- System Type: Packaged Rooftop Gas/Electric (Heating & Cooling)
- Cooling Capacity: ~5 Tons (≈60,000 BTU)
- Heating Capacity: Up to ~70,000 BTU gas heat output (configuration dependent)
- Refrigerant: R-410A (platform standard)
- Power Supply: 208/230V, 1-phase, 60 Hz
- Compressor Type: High-efficiency scroll compressor
- Fan System: Direct-drive ECM indoor blower motor
- Efficiency: ~15–16 SEER2 / ~11–12 EER typical range
- Airflow: ~2,000 CFM
- Installation: Rooftop or curb-mounted (new or retrofit applications)
- Application: Light to mid-sized commercial buildings
- Design Focus: Energy efficiency, durability, and simplified installation
