Description

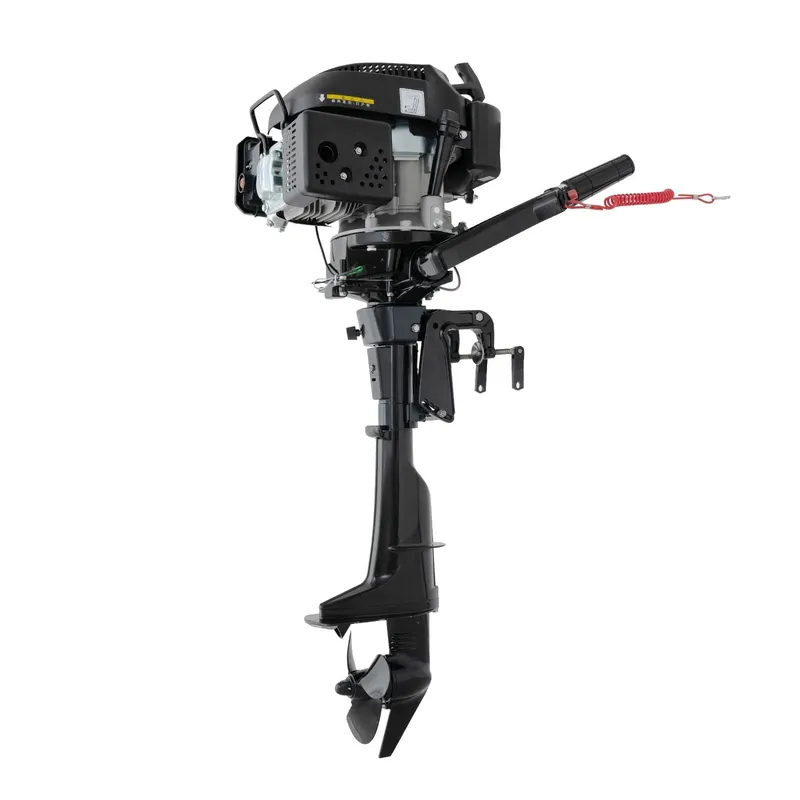

This outboard motor is made of quality aluminum material, which is a good choice for you to enjoy your cruise. The great engine performance can bring you a comfortable sailing experience, as well as convenient ignition and flame failure devices to protect your safety. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey! This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.32 inches or less. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.
Details

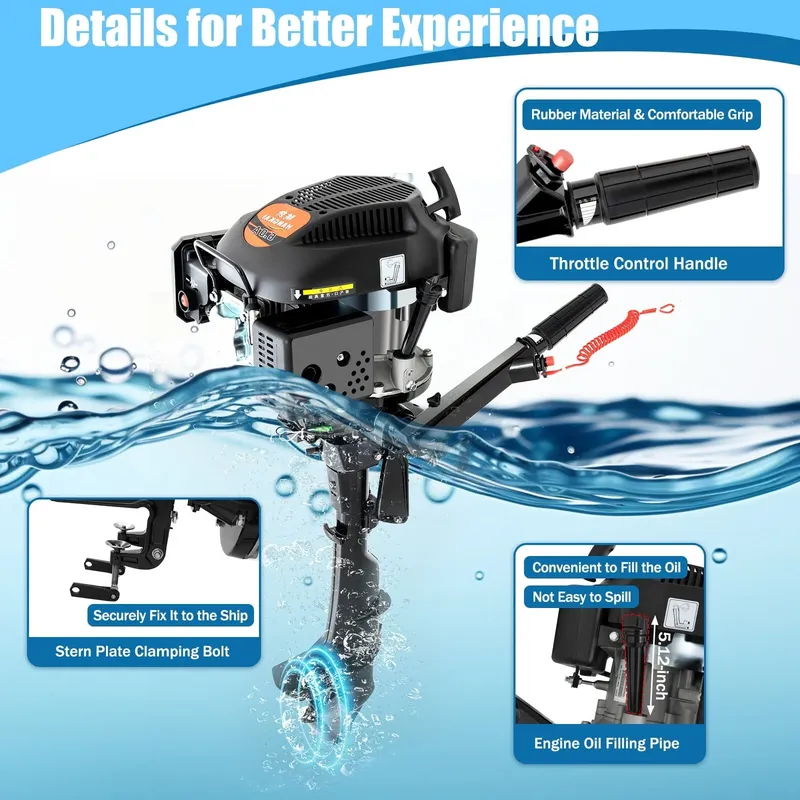

- Engine Oil Filling Pipe: Tubular smooth engine oil filling pipe (5.12-inch) makes it easier for you to fill the oil and not easy to spill.
- Stern Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.

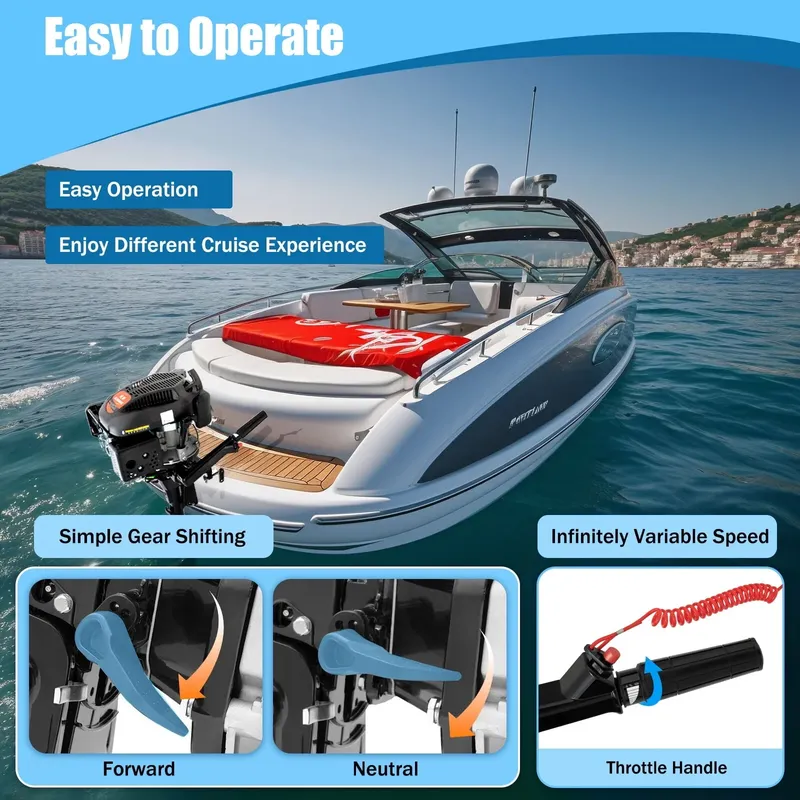

- Ergonomic Handle: The rubberized throttle control handle increases friction and has a comfortable grip, making it easier to use.

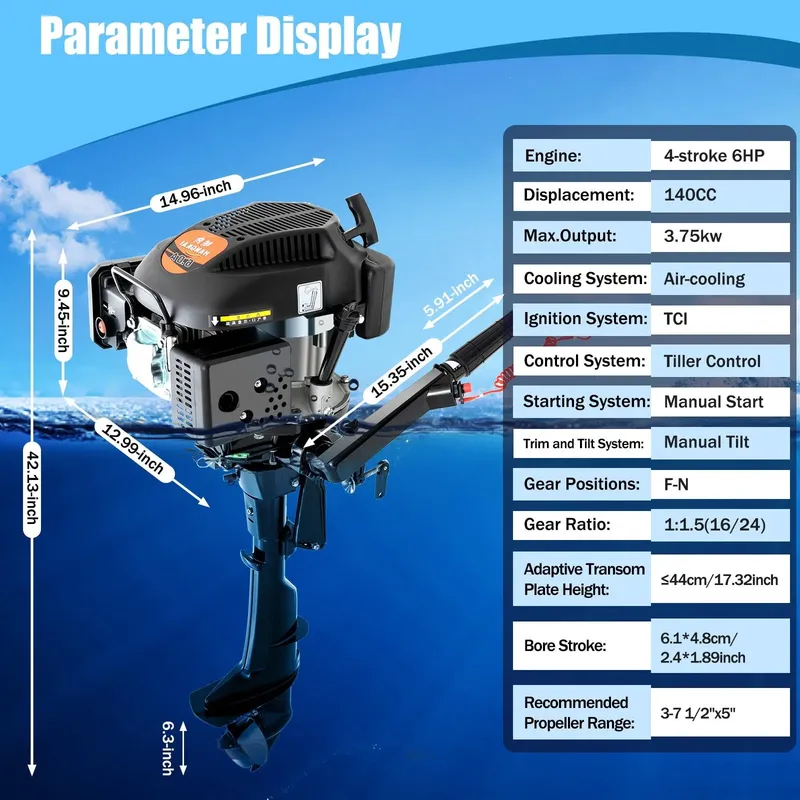

Specification
- Material: Aluminium Alloy, Rubber
- Color: Black
- Type: 4-stroke 6HP
- Displacement: 140CC
- Gear Ratio: 1:1.5(16/24)
- Cylinder: 1
- Max.Output: 3.75kw
- Rotation: 4500-5500r/min
- Speed: About 4-15km/h(2.49-9.32Miles/h)
- Gear Positions: F-N
- Ignition System: TCI
- Cooling System: Air-cooling
- Control System: Tiller Control
- Starting System: Manual Start
- Control System: #92 Gasoline
- Recommended Engine Oil: Four Stroke Engine Oil
- Mixing Ratio: Pure Gasoline
- Trim and Tilt System: Manual Tilt
- Fuel Consumption: About 1L/H(0.26gal/H)
- Standard Fuel Tank Capacity: 1.2L/0.32gal
- Bore Stroke: 6.1*4.8cm/2.4*1.89inch
- Shaft Length: 38.1cm/15inch
- Adaptive Transom Plate Height: �?4cm/17.32inch
- Recommended Propeller Range: 3-7 1/2”x5”
- Propeller Diameter: 16cm/6.3in
- Joystick Length: 39cm/15.35in
- Handle Length: 15cm/5.91in
- Oil Filling Pipe Length: 13cm/5.12inch
- Product Height: 107cm/42.13inch
- Product Size: 38*33*107cm/14.96*12.99*42.13inch
- Package Size: 112.5*46*47.5cm/44.3*18.11*18.7inch
- Net Weight: 20.95kg/46.19lbs
- Gross Weight: 24.45kg/53.9lbs
Package Included
- 1*Outboard Engine
- 1*Funnel
- 1*English User Manual
- All Accessories for Installation
