Description
Specifications
- Material: Aluminum Alloy
- Color: Black
- Surface Treatment: Spray Paint
- Assembly Required: No
- Number of Items: 1
- Engine: 2-stroke 6hp
- Displacement: 102cc
- Gear Ratio: 2.08(27:13)
- Number of Cylinder: 1
- Max. Output: 4.4KW
- Max. Speed: 4500-5500r/Min

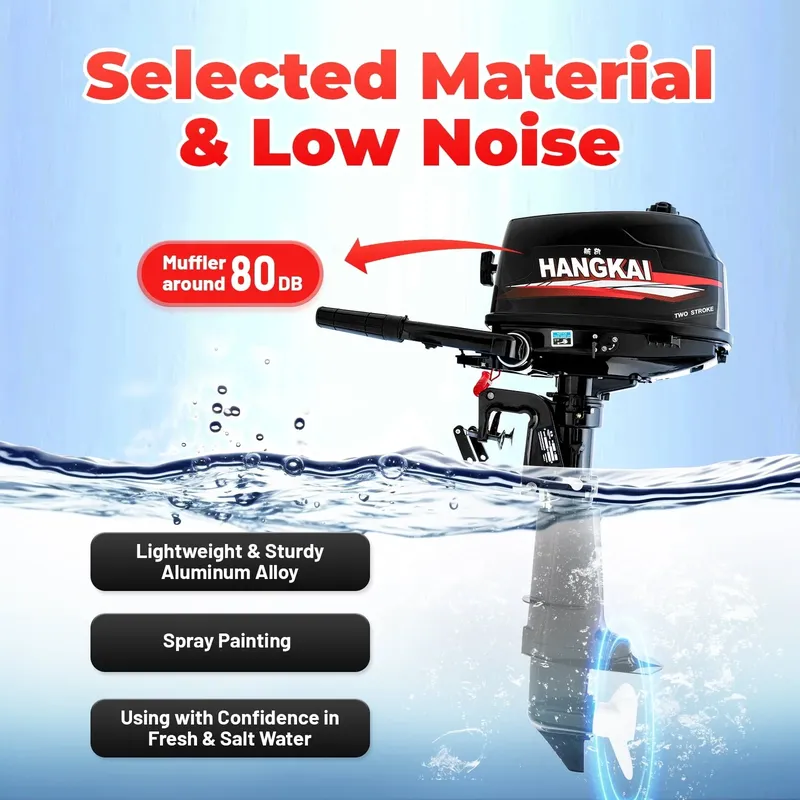

- Noise: About 80DB
- Gear Positions: F-N-R

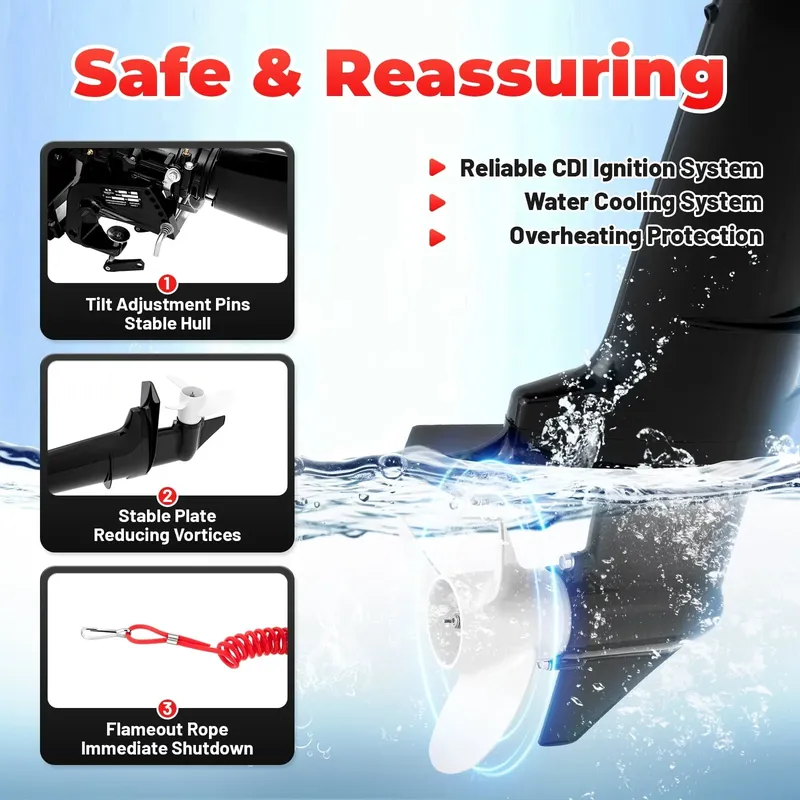

- Ignition System: CDI
- Cooling System: Water-cooling
- Control System: Tiller Control
- Starting System: Manual Start
- Gasoline: No.92 Lead-free Gasoline
- Fuel Type: Mixed Oil (50 Gasoline: 1 2-stroke Engine Oil)
- Trim And Tilt System: Manual Tilt
- Fuel Tank Capacity: 2.5L/0.66gal
- Fuel Consumption Rate: 2.5L/0.66gal/h

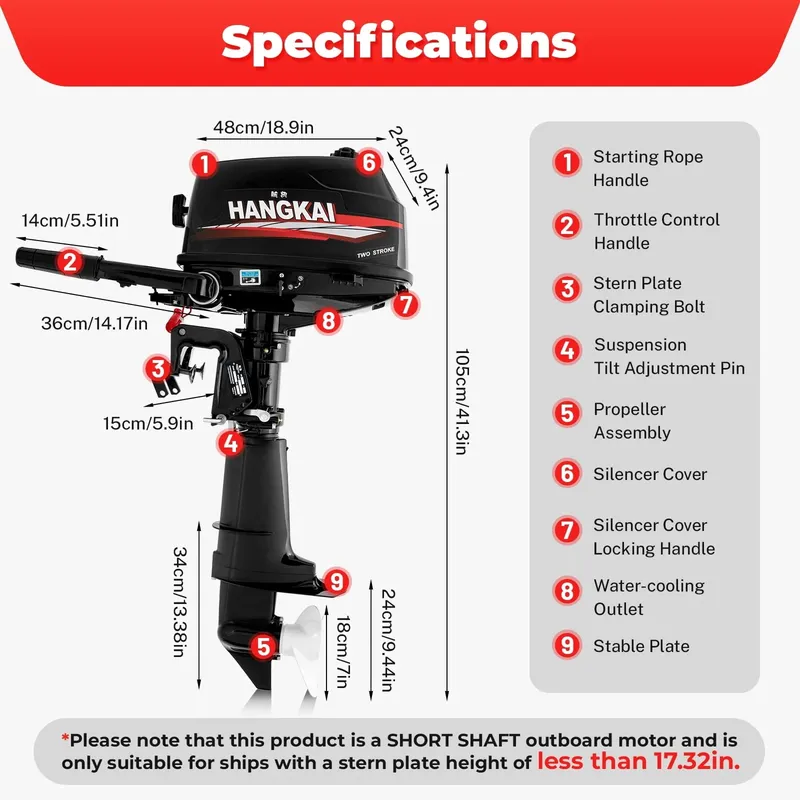

- Bore*Stroke: 5.5*4.3cm/2.16*1.7in

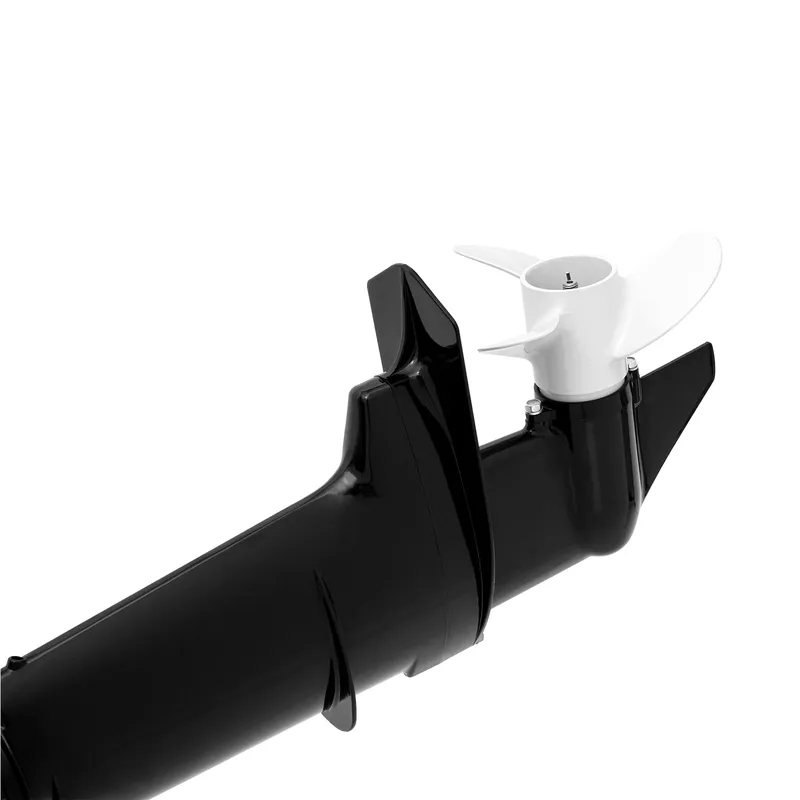

- Propeller Diameter: 18cm/7in
- Handle Length: 36cm/14.17in
- Adaptive Transom Plate Height: ≤44cm/17.32in
- Gross Weight: 24.15kg/53.24lbs
- Net Weight: 20.55kg/45.3lbs
- Product Size: 105*48*24cm/41.3*18.9*9.4in
- Package Size: 110*37*54cm/43.3*14.56*21.26in

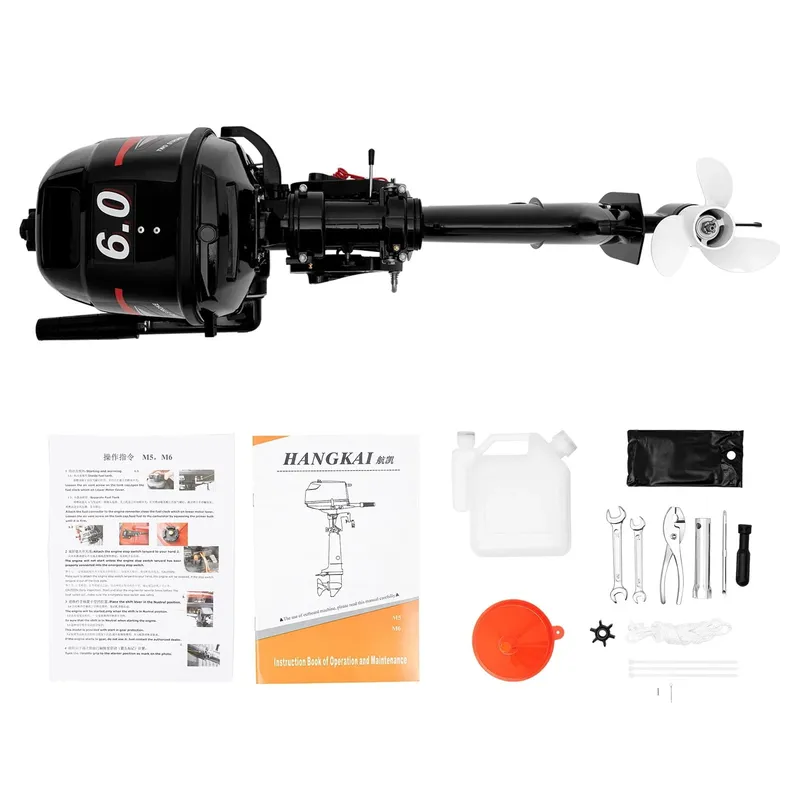

Package Included
- 1x Outboard Motor
- 1x Flameout Rope
- 1x Tool Kit
- 1x Fuel Oil Mixing Bottle
- 1x Funnel
- 1x English Manual
- 1x English Operation Instructions
- All Accessories for Assembly
Notes
1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Please measure the height of your boat before purchasing to ensure suitability for this product.
3.Please start the motor in the water. If the motor stops circulating water, please stop using it immediately and check the impeller of the water pump to see if the water outlet is blocked.
4.Please note that this product should use a mixture of two-stroke engine oil and 92 # unleaded gasoline. The running-in period of the new machine is 10 hours, during which the fuel ratio is 30L (7.93 gal) of gasoline to 1L (0.26 gal) of engine oil. After 10 hours, the ratio is 50 liters (13.21 gallons) of gasoline to 1 liter (0.26 gallons) of oil.
5.Please note that the emergency shutdown rope should be inserted when the outboard motor is started, and the other end should be wrapped around your wrist or belt.
6.Please do not drive too fast during the running-in period. After the running-in period, the gear oil needs to be replaced, and the second replacement time is about 100 hours or 6 months later.
7.Please do not leave this product outside until the cooling water is completely used up. Otherwise, water will enter the cylinder through the exhaust port, leading to engine failure. After cruising in seawater or turbid water, please clean the outboard motor with fresh water and cool the water channel with fresh water. The engine should be stored in a dry and well-ventilated place, and avoid direct exposure to sunlight.
8.If not in use for a long time, please thoroughly clean the gasoline in the fuel tank.
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
