Description
Specifications:
Model:1P54FMI-K
Shift Model: 1 0 2 3 4
Type: Single cylinder, 4-stroke with air-cooled, and clutch operated by hand
Bore×Stroke: 54×54 mm
Displacement: 119.7 ml
Compression Ratio: 8.7:1
Max Power: 6.5 kW/7500r/min±375r/min
Rated Power: 5.6 kW/7500r/min±375r/min
Max Torque: 8.0 Nm/5000r/min±250r/min
Idle Speed: 1500r/min±100r/min
Min Fuel Consumption: �?67g/kw.h
Ignition System: CDI
Start Mode: Kick-starter
Spark Plug: A7TC
Clutch: Wet multi-plate
Transmission:4-speed, Manual clutch,4 Up
Carburetor Type: PZ16J
Primary Reduction Ratio:3.722
Gear Ratio:2.833/1.706/1.238/0.958
Lubricant Capacity: 900 ml
Lubricant: SAE15W/40-SE, 4-stroke gasoline engine oil
Engine Dimensions: 470×275×280 mm
All machines do not carry oil
Fitment:
For HONDA CRF50 / CRF70 / XR50 / XR70 / Z50 / Z50R / CT70 Mini Trail / Z50 / Minitrail Monkey / XL70 ST70 / QA50 / QR50 / CL70 / SL70 / 70 Passport / ST 90K2 / ST 90K1 / CS 90 / SL 90 / ZB 50 /
Please note this is not a guarantee, if you are unsure, please ask your local dealer.

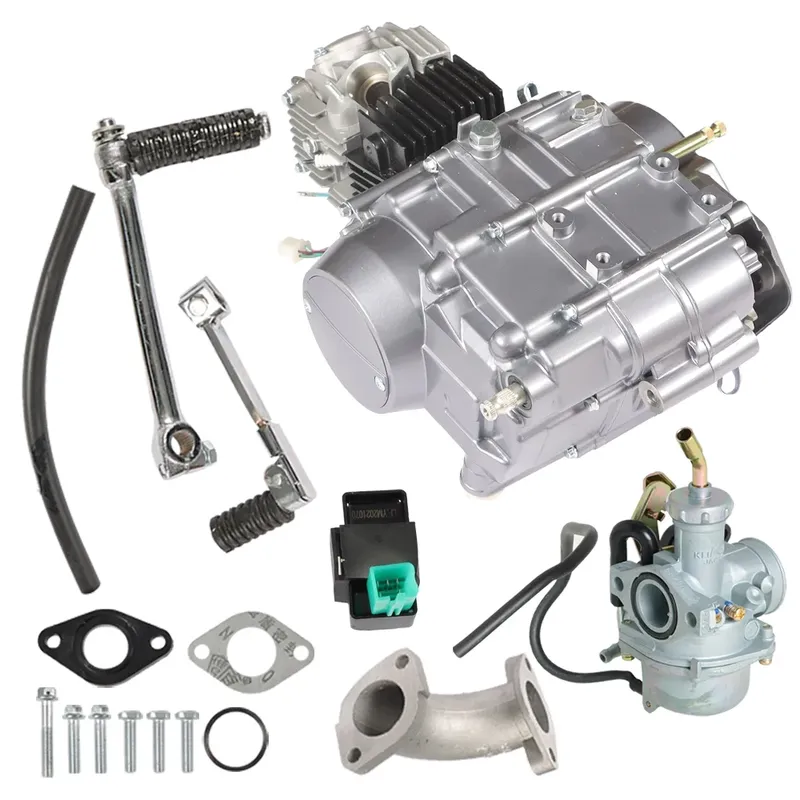

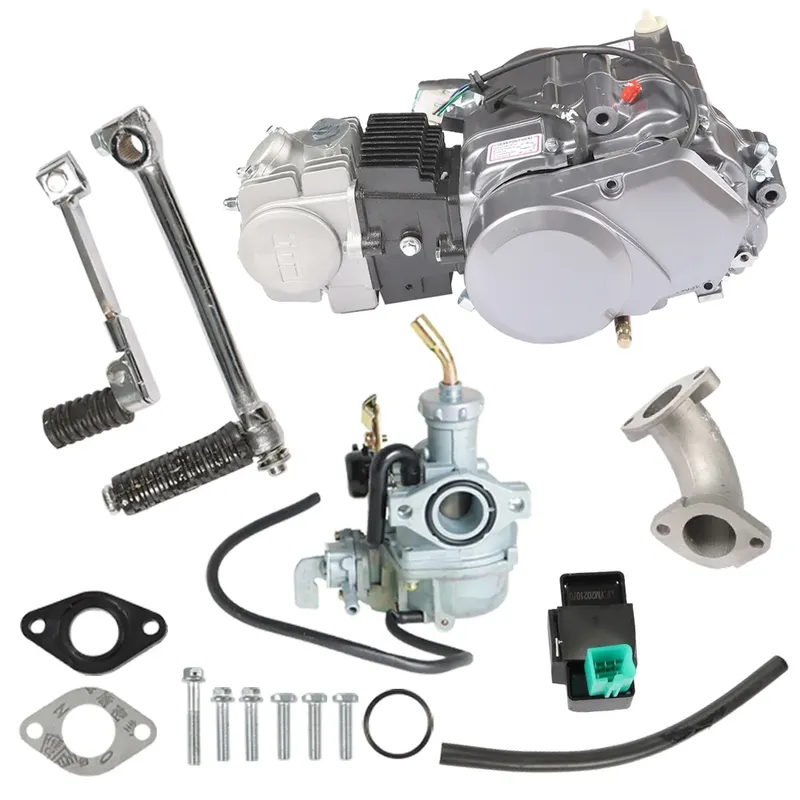

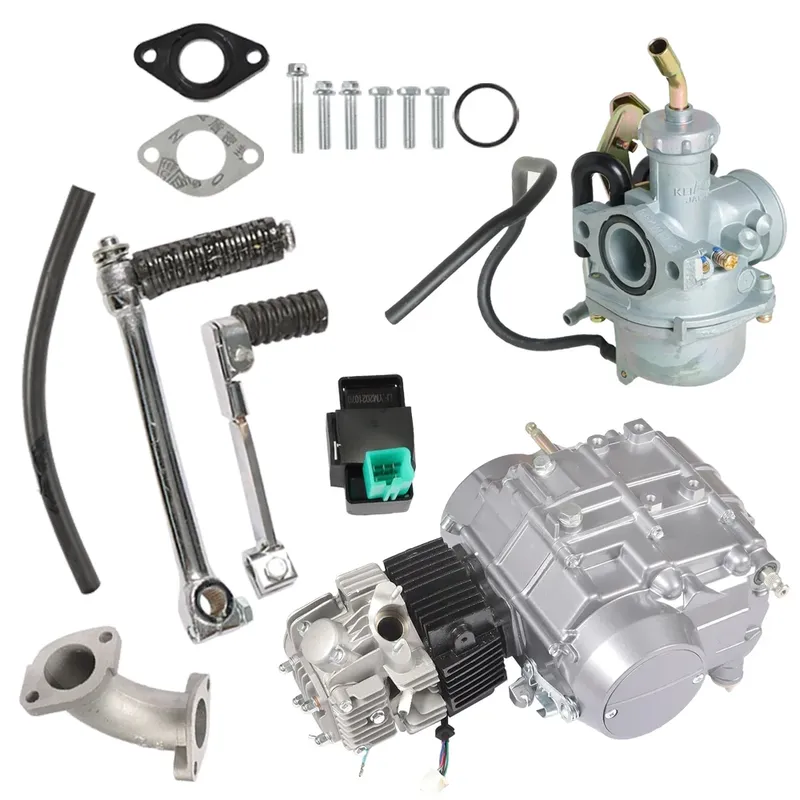

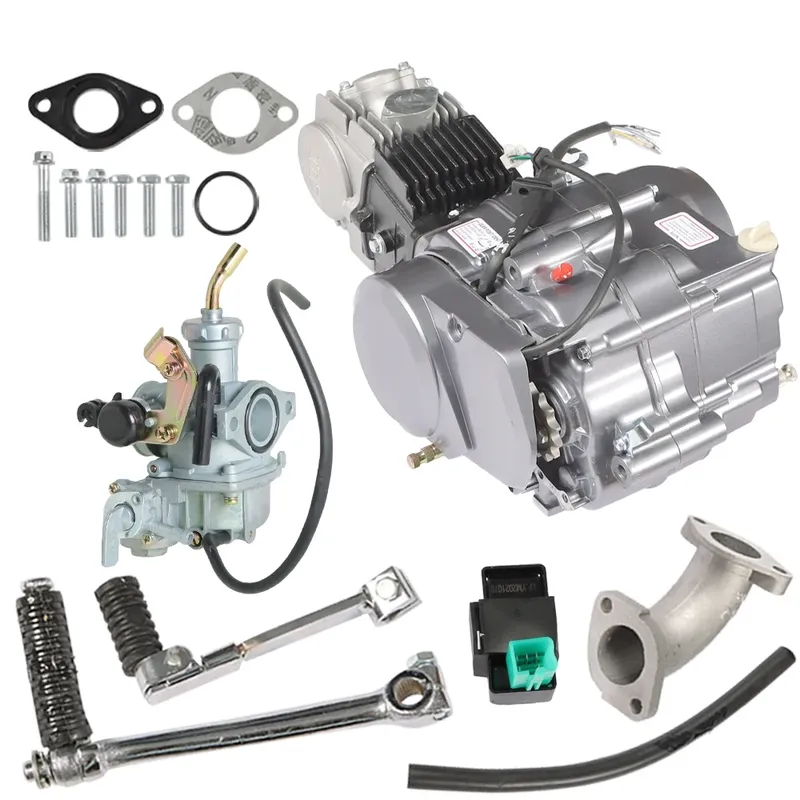

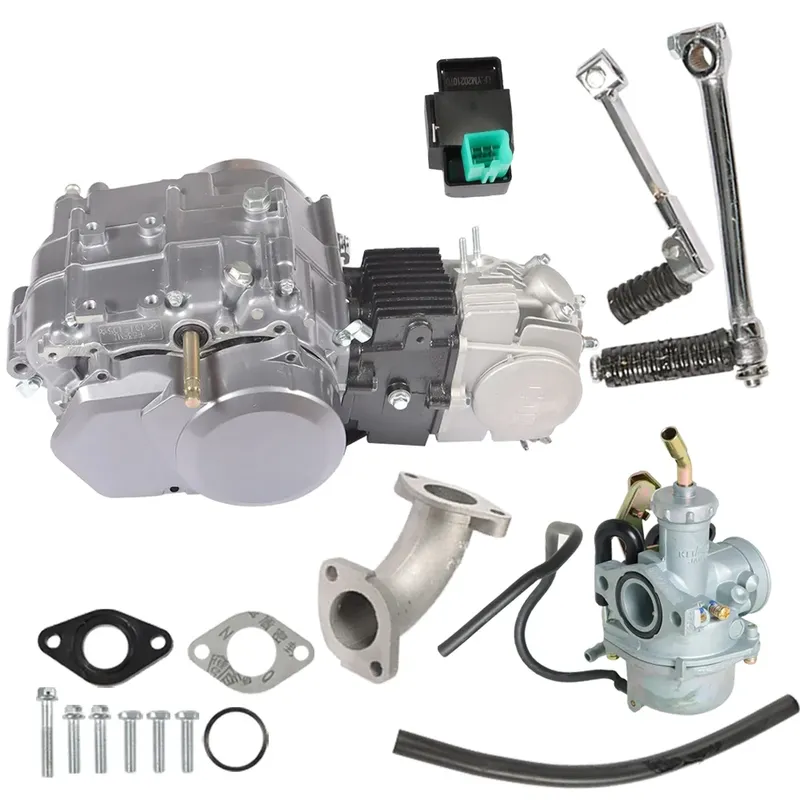

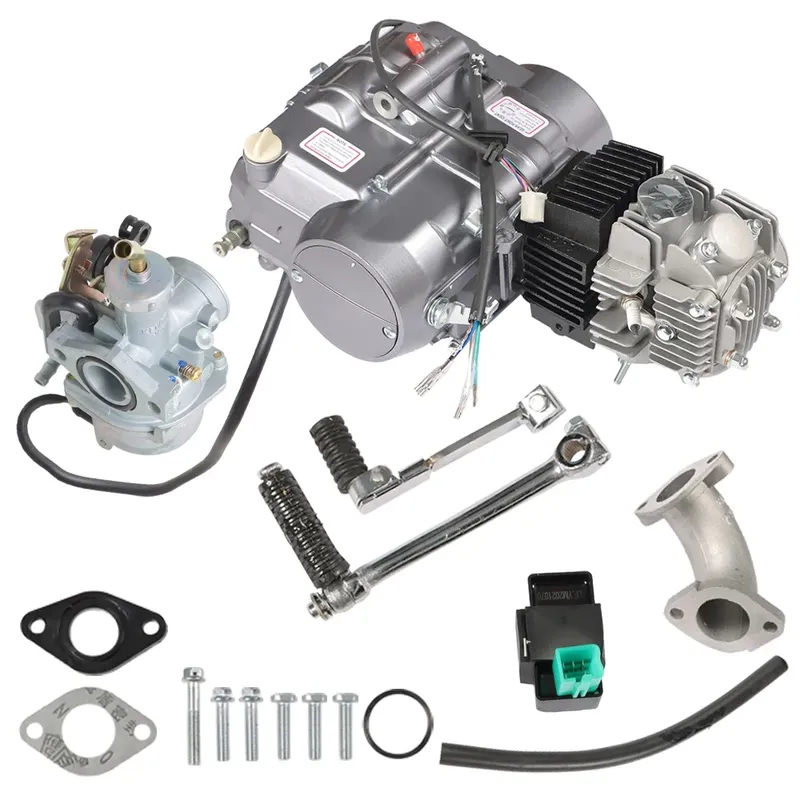

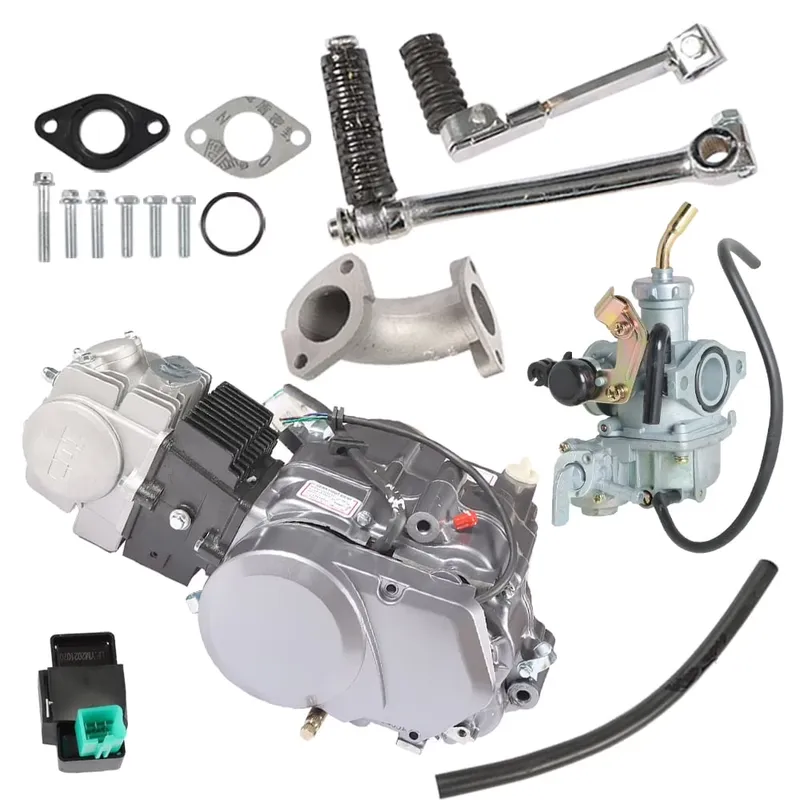

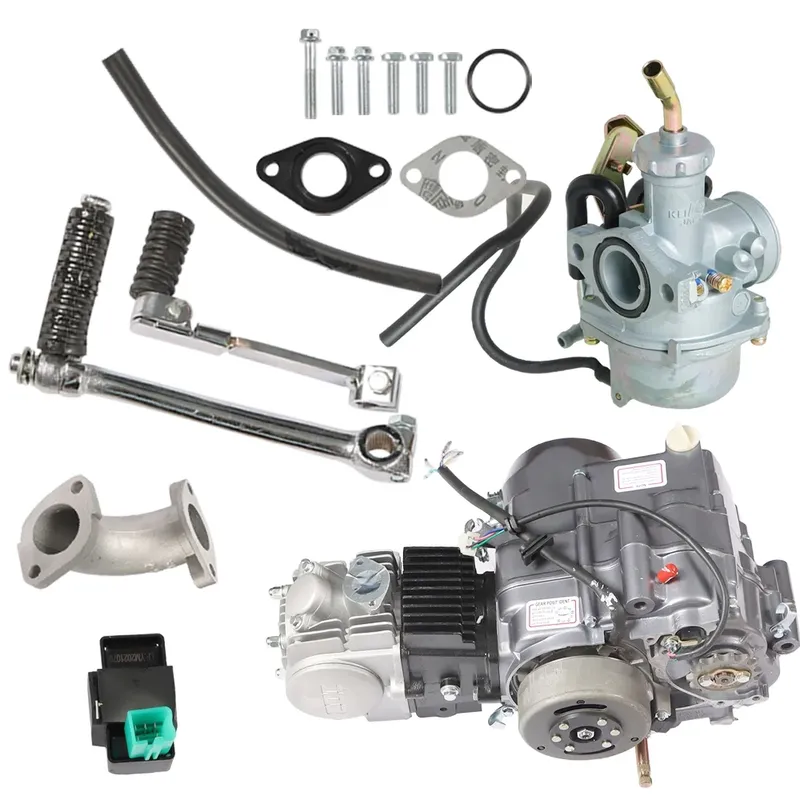

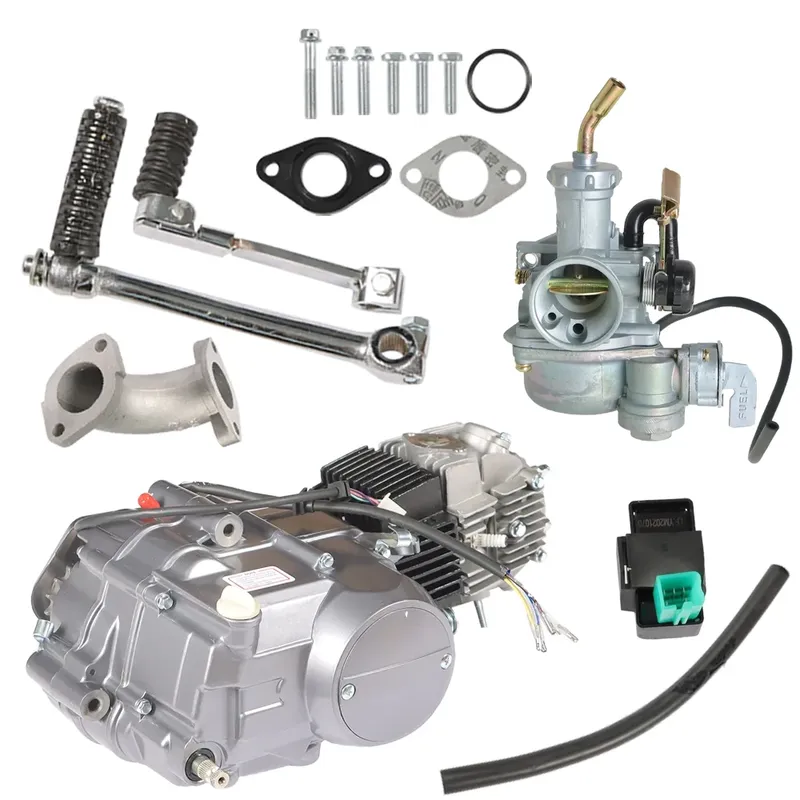

Package Included:
1x 125CC 1P52FMI ENGINE
1x Kick Starter Lever
1x Gear Shift Lever
1x Carburetor
1x Intake Manifold
1x CDI
2x Intake Gaskets
- Replacement for Honda CRF50, XR50R, Z50, Z50R, CRF70, XR70, CT70.
- Please check the product pictures and product information before purchase to make sure the product meets your requirements.
- This product is a 125cc 4 stroke 1P54FMI-K model engine and carburetor kit.
- Engine dimensions: 470 x 300 x 280 mm.
- Note: In order to allow the engine to be used for a long time, please do not open the throttle completely after installation and keep the gear shift during the first 1000 km.
