Description
Control your indoor climate smartly and efficiently with this multi-zone mini split air conditioner. This 24000 BTU 3-zone mini split AC unit delivers effective cooling and heating across multiple zones, offering both efficiency and convenience. The WiFi-enabled feature lets you adjust the temperature directly from your smartphone. With an impressive 23 SEER2 rating, this Energy Star-certified inverter split air conditioner demonstrates exceptional energy efficiency. 6 modes and 5 wind speeds allow for a fully customizable comfort experience. Additionally, the 24-hour timer enables you to set operating times according to your daily schedule. Whether you’re sleeping, working from home, or relaxing, its whisper-quiet operation ensures your peace and comfort are never disturbed.
Please note: The installation of this mini split AC unit should be performed by a licensed HVAC installer.
Features

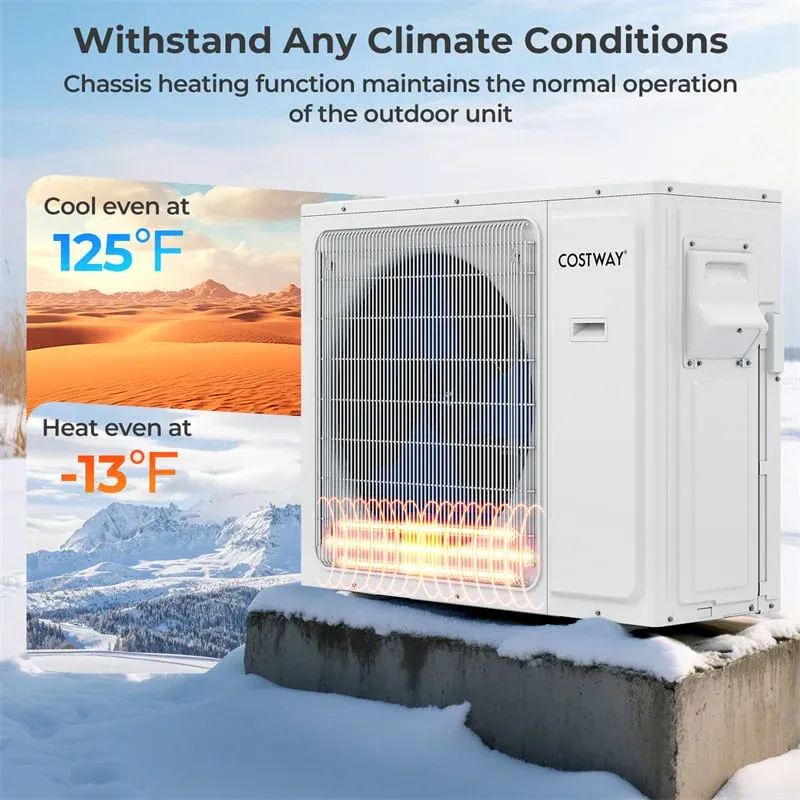

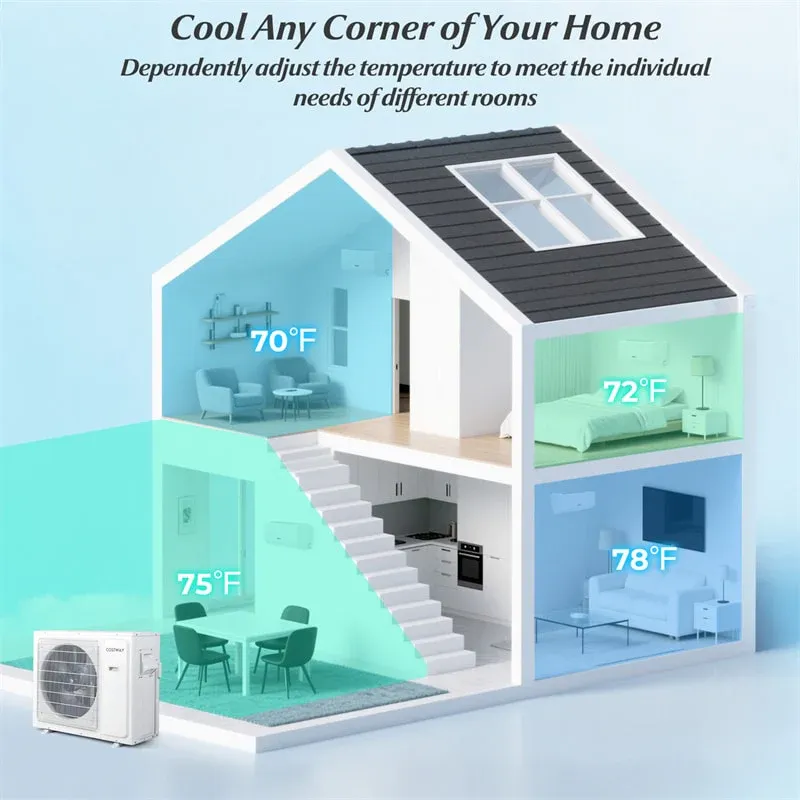

- Multi-room Cooling Solution: Designed to cool every corner of your home, this 24000 BTU 3-zone mini split air conditioner can independently adjust the temperature to meet the unique needs of different rooms. The chassis heating function ensures the outdoor unit operates normally, even in extreme climates (-13℉ to 125℉).

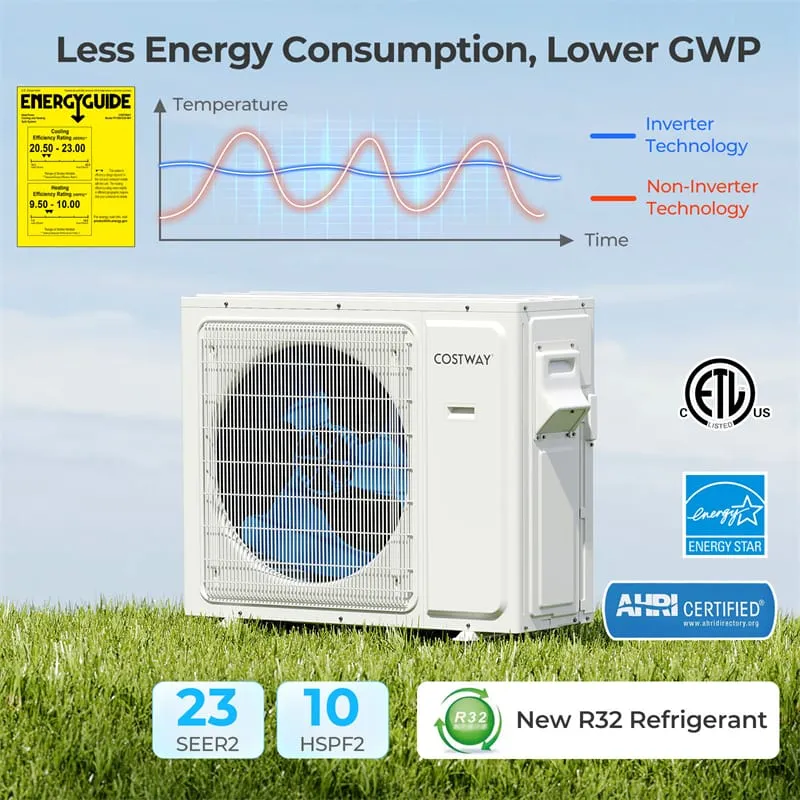

- Less Energy Consumption, Lower GWP: This Energy Star-certified mini split AC features innovative inverter technology, operating at an impressive 23 SEER2 and 10 HSPF2 ratings. The use of R32 refrigerant supports a more eco-friendly lifestyle. Additionally, it is ETL and AHRI certified.

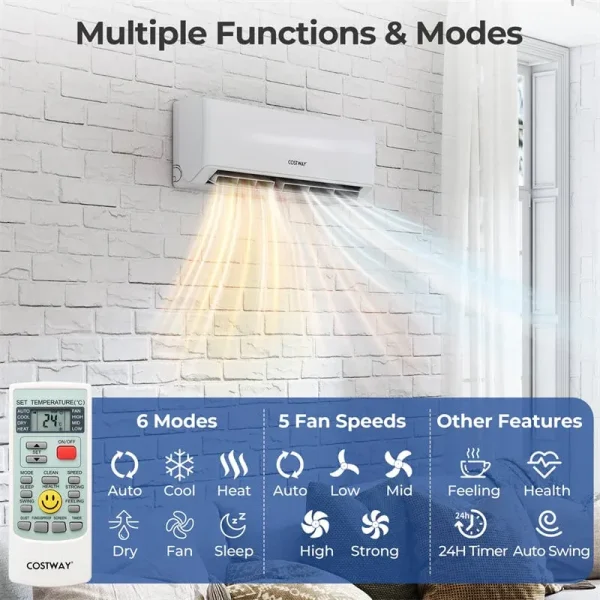

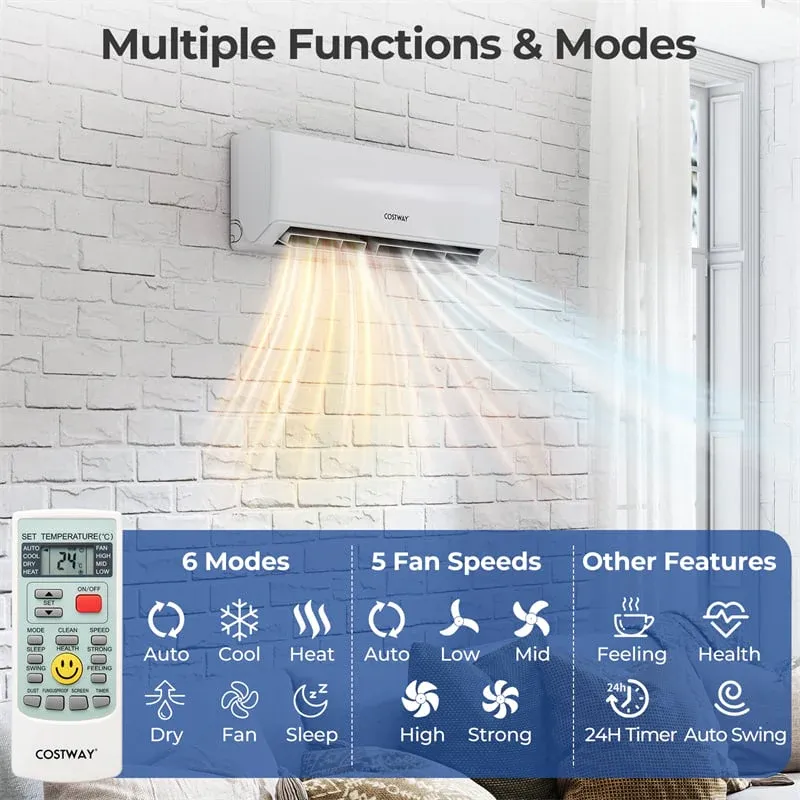

- Multiple Functions & Modes: This WiFi-enabled ductless mini split air conditioner offers 6 modes (auto/cool/heat/dry/fan/sleep) and 5 wind speeds (auto/low/mid/high/strong), giving you a variety of options to suit your preferences. Features like auto swing, “feeling,” and “health” modes further enhance comfort in daily use.
- Smart Control, Smart Life: Easily adjust settings, monitor performance, and control your AC from anywhere using your smartphone or remote control. The 24-hour timer lets you conveniently schedule climate control to match your daily routine.

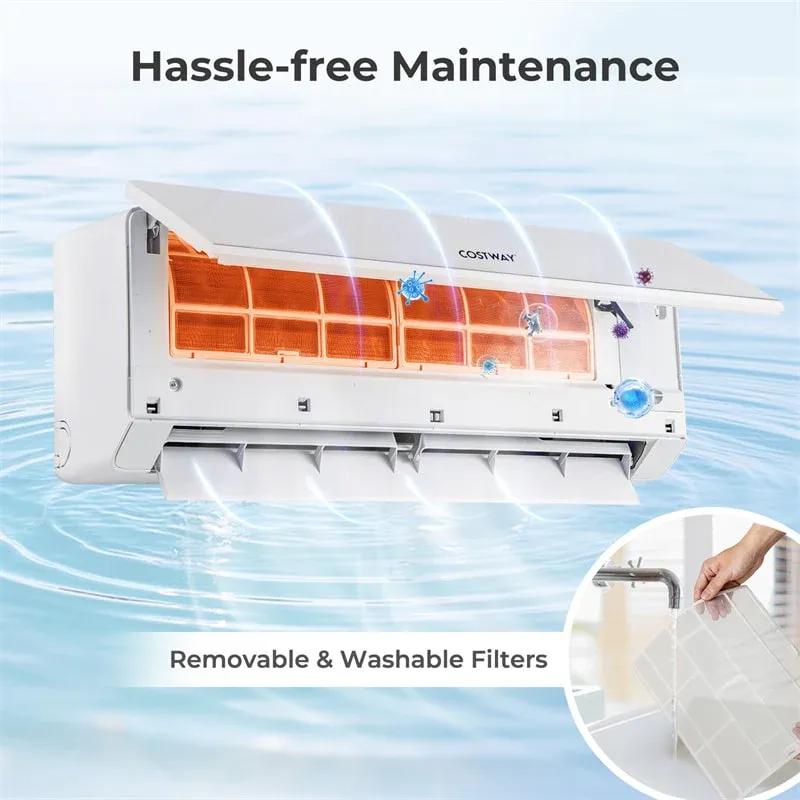

- Low Noise & Easy Maintenance: Experience peace and comfort with sleep mode and the screen-off function, perfect for a quiet, restful environment. Additionally, maintenance is simplified—just press the ‘Clean’ button, and the filter is easily removable and washable. Please note: Installation by a licensed HVAC professional is required for optimal performance.
Specifications
- Color of Indoor Unit: White
- Color of Outdoor Unit: White
- Material: Metal, Aluminum, Plastic

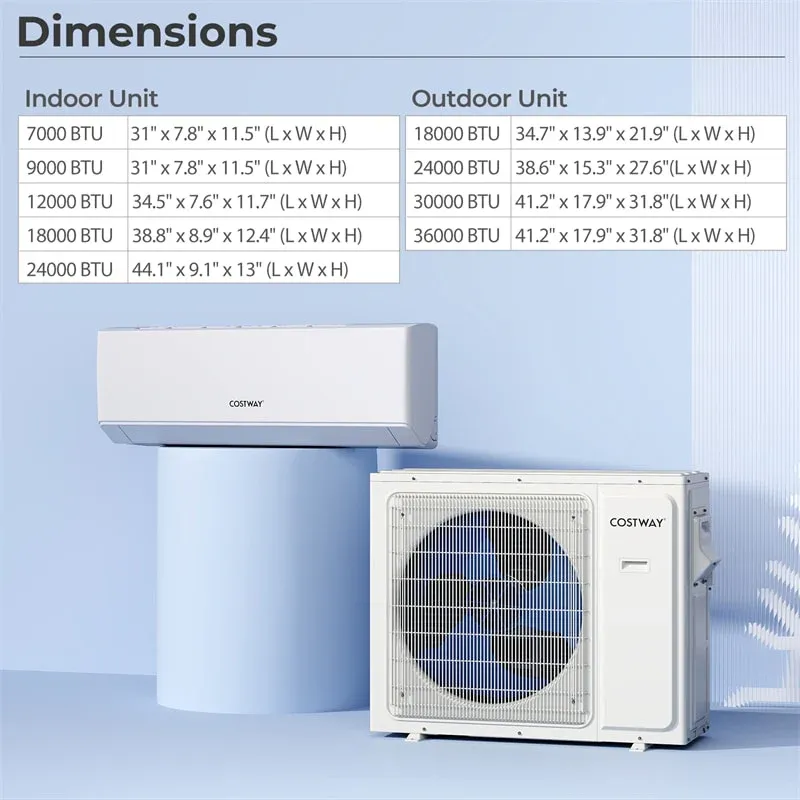

- Indoor Unit Size:
- 7k: 31″ x 11.5″ x 7.8″(L x W x H)
- 9k: 31″ x 11.5″ x 7.8″(L x W x H)
- 12k: 34.5″ x 11.7″ x 7.6″(L x W x H)
- 18k: 34.7″ x 13.9″ x 21.9″(L x W x H)
- 24k: 44.1″ x 13″ x 9.1″(L x W x H)
- Outdoor Unit Size: 38.6″ x 15.3″ x 27.6″(L x W x H)
- Multi-Zone Combination: 3
- Voltage: 208-230V~60Hz/1PH
- Temperature Setting Range: 60℉~90℉
- Refrigerant: R32
- Heat Pump of 7k: 0.6 Ton
- Heat Pump of 9k: 0.75 Ton
- Heat Pump of 12k: 1 Ton
- Heat Pump of 18k: 1.5 Ton
- Heat Pump of 24k: 2 Ton
- Dehumidifying Capacity of 7k: 35.5 Pints/Day
- Dehumidifying Capacity of 9k: 35.5 Pints/Day
- Dehumidifying Capacity of 12k: 51 Pints/Day
- Dehumidifying Capacity of 18k: 81 Pints/Day
- Dehumidifying Capacity of 24k: 130 Pints/Day
- SEER2: 23
- HSPF2: 10
- Indoor Unit Noise Level of 7k: 30 dB
- Indoor Unit Noise Level of 9k: 30 dB
- Indoor Unit Noise Level of 12k: 32 dB
- Indoor Unit Noise Level of 17k: 35 dB
- Indoor Unit Noise Level of 24k: 40 dB
- Outdoor Unit Net Weight: 159.5 lbs
- Net Weight of Indoor Unit 7k: 17.5 lbs
- Net Weight of Indoor Unit 9k: 17.5 lbs
- Net Weight of Indoor Unit 12k: 20 lbs
- Net Weight of Indoor Unit 18k: 26.5 lbs
- Net Weight of Indoor Unit 24k: 31 lbs

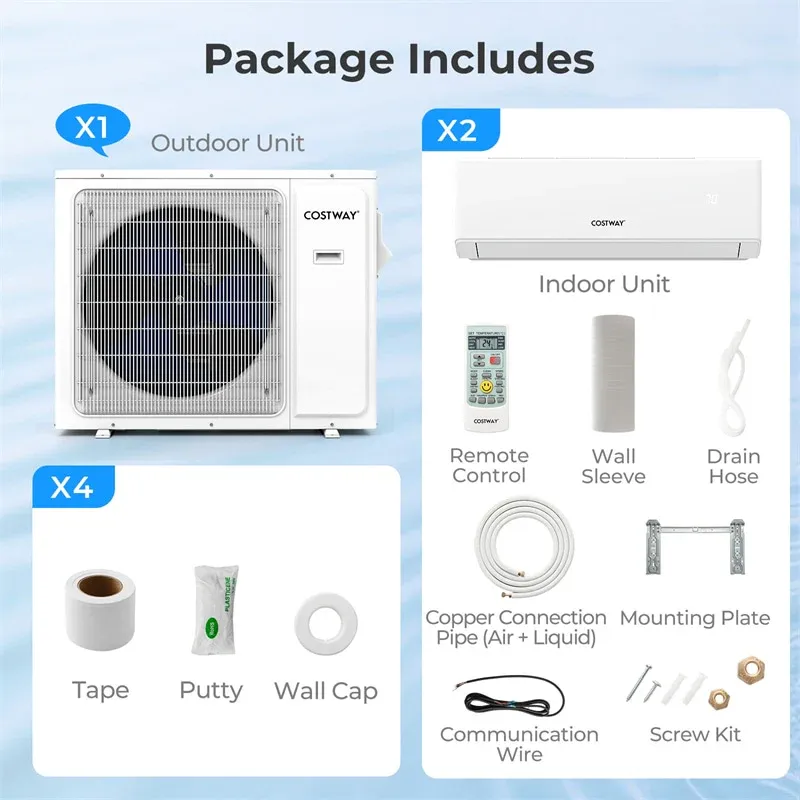

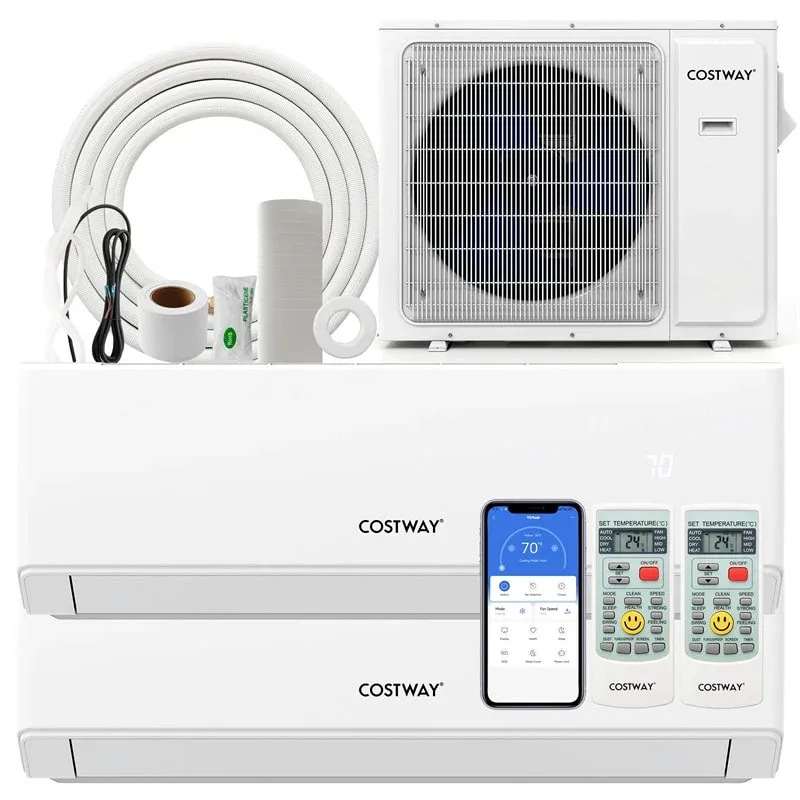

Package Includes
- 1 x Outdoor Unit
- 3 x Indoor Unit
- 3 x Communication Wire
- 3 x Copper Connection Pipe (Air Liquid)
- 3 x Drain Hose
- 3 x Remote Control
- 3 x Mounting Plate
- 3 x Wall Sleeve
- 6 x Wall Cap
- 3 x Screw Kit
- 6 x Putty
- 6 x Tape
- 4 x User Guide
